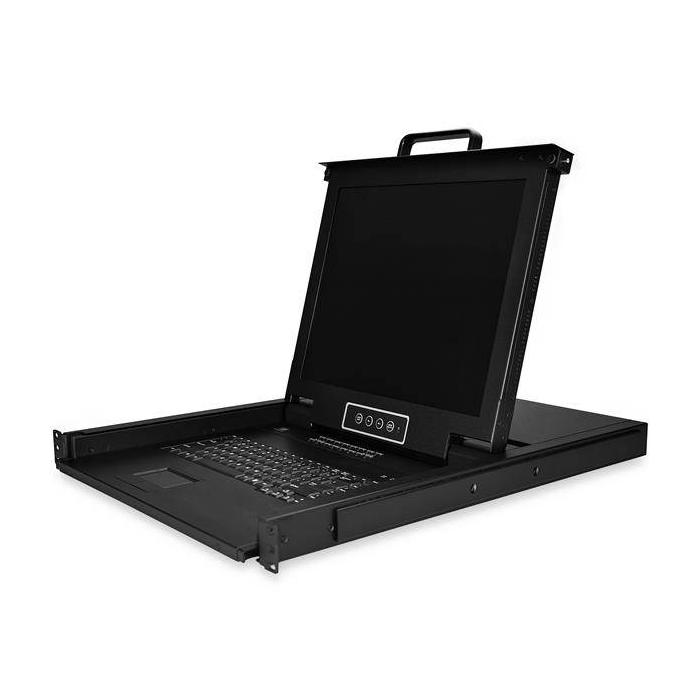

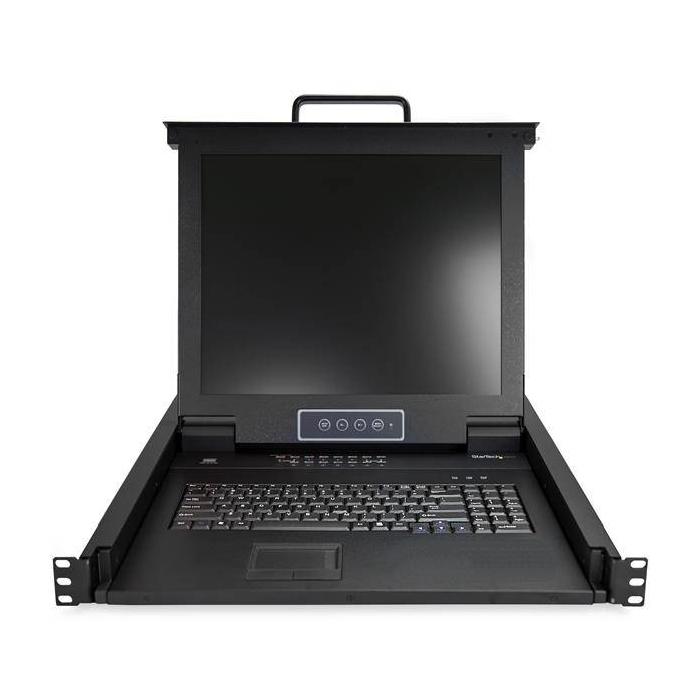

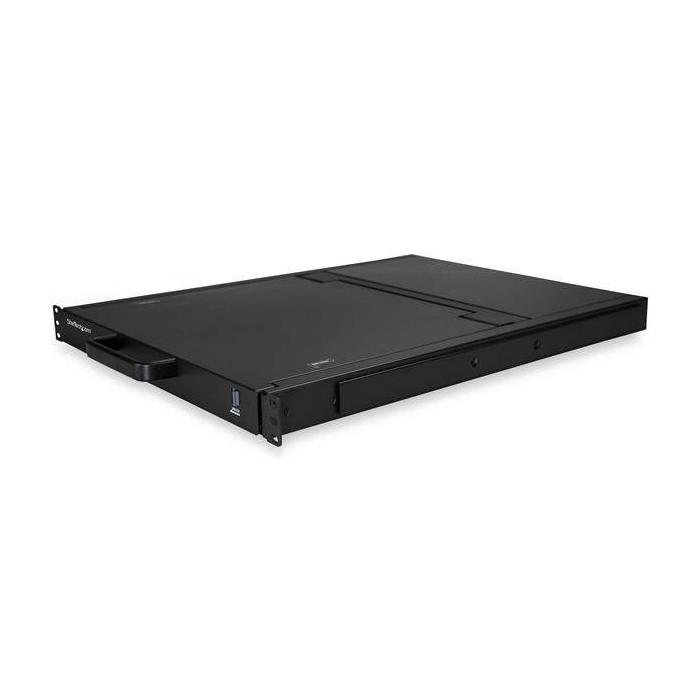

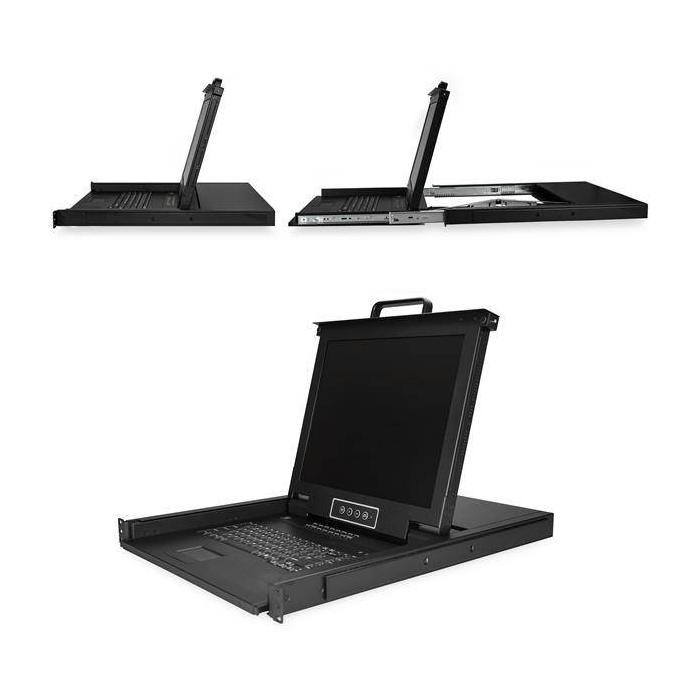

StarTech.com 16 Port Rackmount KVM Console w/ 6ft Cables - Integrated KVM Switch w/ 17'' LCD Monitor - Fully Featured 1U LCD KVM Drawer- OSD KVM - Durable 50,000 MTBF - USB + VGA Support

$1,406.37
$1,406.37 without VAT

StarTech.com 16 Port Rackmount KVM Console w/ 6ft Cables - Integrated KVM Switch w/ 17" LCD Monitor - Fully Featured 1U LCD KVM Drawer- OSD KVM - Durable 50,000 MTBF - USB + VGA Support.   More info

Brand: STARTECH.COM
SKU: 81440 PRC: 239327 EAN: 65030872546 PN: RKCONS1716K

Description

Specifications

Display

  • Display diagonal: 43.2 cm (17")
  • Display resolution: 1280 x 1024 pixels
  • Display: TFT LCD
  • Display brightness: 250 cd/m²
  • Contrast ratio (typical): 1000:1
  • Viewing angle, horizontal: 170°
  • Viewing angle, vertical: 160°
  • On Screen Display (OSD): Yes
  • Pixel pitch: 0.264 x 0.264 mm
  • Aspect ratio: 5:4
  • Display type: LCD
  • Response time: 5 ms
  • Display number of colours: 16.78 million colours

Technical details

  • Material: Steel
  • Mean time between failures (MTBF): 50000 h
  • Product colour: Black
  • Operating relative humidity (H-H): 10 - 80%
  • Rack mounting: Yes
  • Daisy chain: No
  • Key lock: No
  • IP control: No
  • LED indicators: Yes
  • Compliance certificates: RoHS
  • Rack capacity: 1U

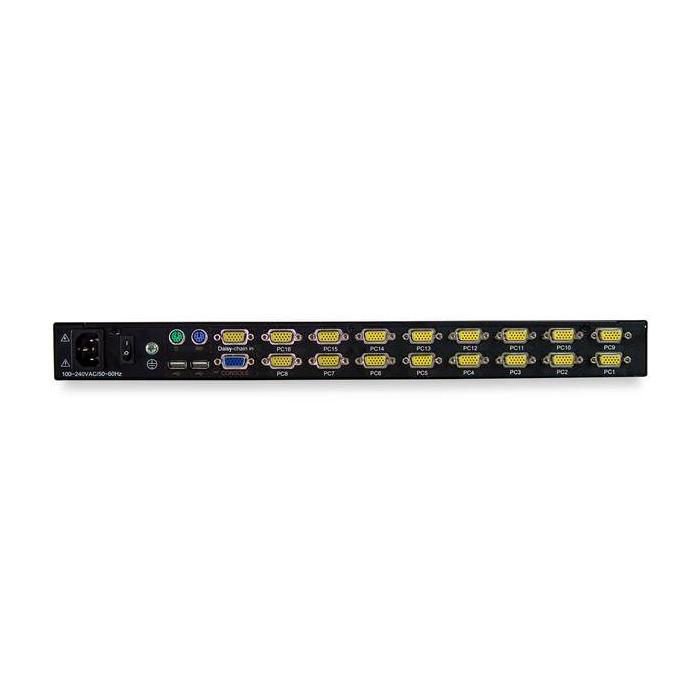

Ports & interfaces

  • VGA (D-Sub) ports quantity: 16
  • Keyboard port type: PS/2
  • Mouse port type: PS/2
  • Video port type: VGA
  • USB 2.0 Type-A ports quantity: 2

Keyboard

  • Hot keys: Yes

Certificates

  • Certification: FCC, PSE, UL, CE, REACH

Power

  • Power consumption (typical): 23 W
  • AC adapter input voltage: 100 - 240 V
  • Input current: 1.5 A

Operational conditions

  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -20 - 60 °C

Weight & dimensions

  • Width: 448 mm
  • Height: 581 mm
  • Depth: 43 mm
  • Weight: 13 kg
  • Mounting depth (min): 56 cm
  • Mounting depth (max): 90 cm

Packaging data

  • Package weight: 21.1 kg
  • Package width: 615 mm
  • Package depth: 765 mm
  • Package height: 185 mm

Packaging content

  • Cables included: KVM
  • Screws included: Yes
  • Number of screws: 8
  • Mounting brackets included: Yes
  • Cage nuts included: Yes
  • Number of cage nuts: 8
  • Included power plug types: ANZ, EU, JP, NA, UK
  • Manual: Yes

Logistics data

  • Master (outer) case width: 615 mm
  • Master (outer) case length: 765 mm
  • Master (outer) case height: 185 mm
  • Products per master (outer) case: 1 pc(s)
