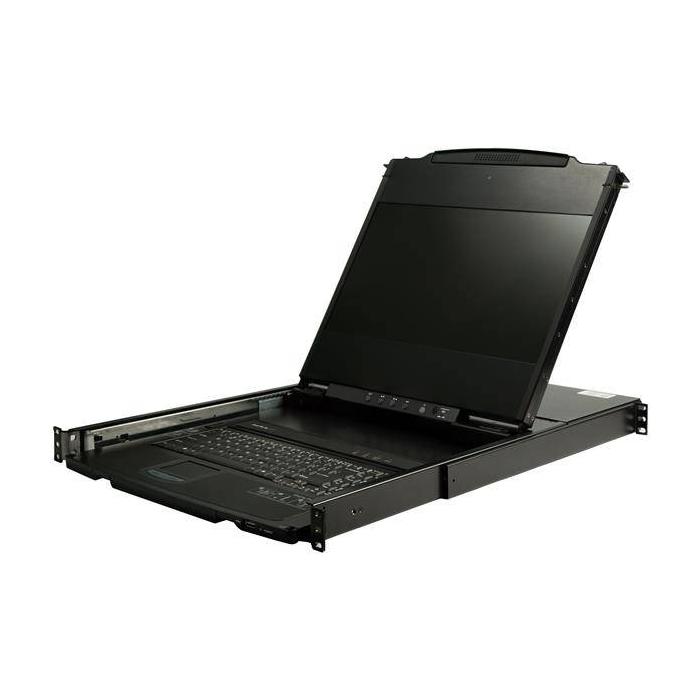

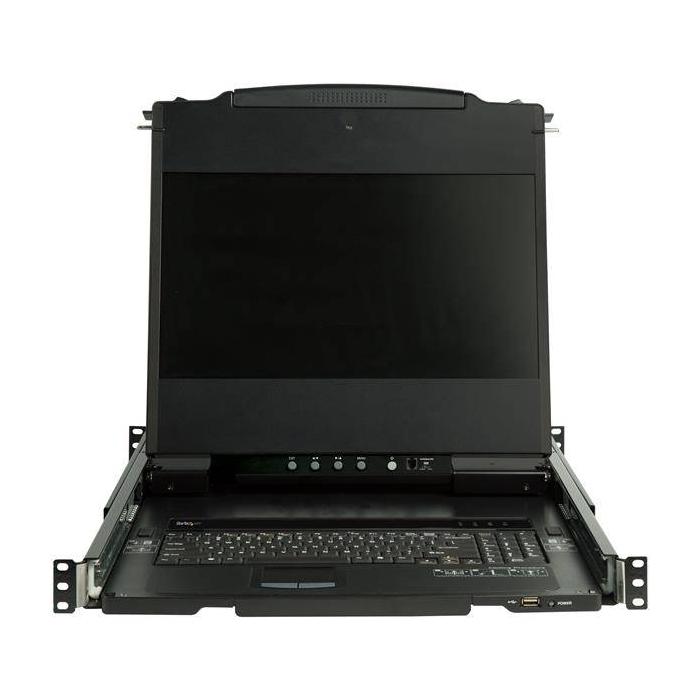

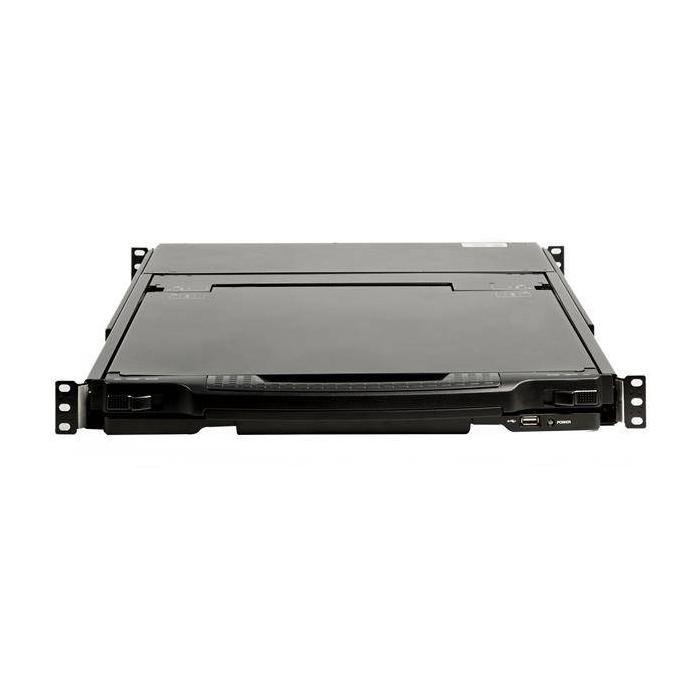

StarTech.com Dual Rail Rackmount KVM Console HD 1080p - Single Port DVI/VGA KVM w/17'' LCD Monitor for Server Rack - Fully Featured 1U LCD KVM Drawer w/Cables - USB Support - 44230 MTBF

$1,146.42
$1,146.42 without VAT

StarTech.com Dual Rail Rackmount KVM Console HD 1080p - Single Port DVI/VGA KVM w/17" LCD Monitor for Server Rack - Fully Featured 1U LCD KVM Drawer w/Cables - USB Support - 44230 MTBF.   More info

Brand: STARTECH.COM
SKU: 81827 PRC: 244103 EAN: 65030872515 PN: RKCOND17HD

Description

Specifications

Display

  • Display diagonal: 43.9 cm (17.3")
  • Display resolution: 1920 x 1080 pixels
  • Display: TFT LCD
  • Display brightness: 250 cd/m²
  • Contrast ratio (typical): 650:1
  • Viewing angle, horizontal: 140°
  • Viewing angle, vertical: 120°
  • On Screen Display (OSD): No
  • Pixel pitch: 0.199 x 0.199 mm
  • Aspect ratio: 16:9
  • Display type: LCD
  • Response time: 8 ms
  • Display number of colours: 262144 colours
  • Supported resolutions: 1024x576 1152x648 1280x720 1366x76 1600x900 1920x1080

Technical details

  • Material: Steel
  • Mean time between failures (MTBF): 44230 h
  • Product colour: Black
  • Operating relative humidity (H-H): 0 - 80%
  • Rack mounting: Yes
  • LED indicators: Yes
  • Compliance certificates: RoHS
  • Rack capacity: 1U

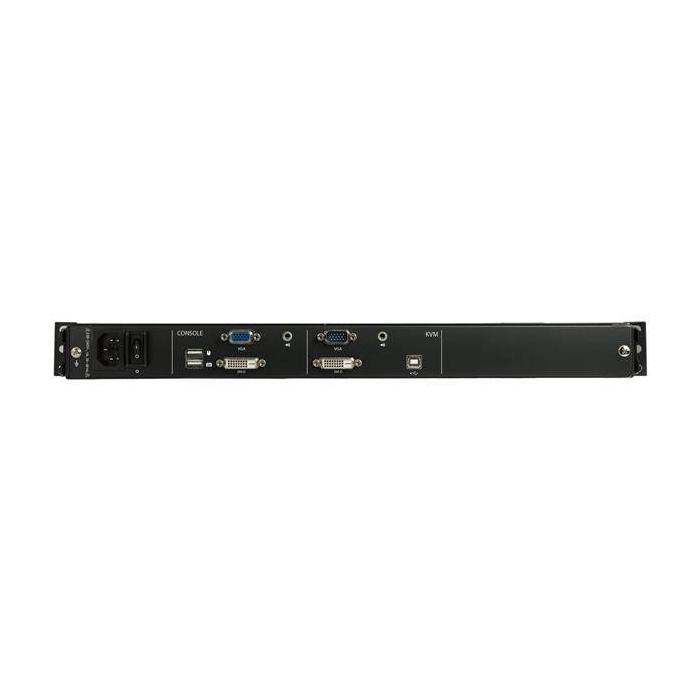

Ports & interfaces

  • 3.5 mm (1/8-inch) out: Yes
  • 3.5 mm (1/8-inch) in: Yes
  • DVI connector type: DVI-D
  • DVI input ports: 1
  • DVI output ports: 1
  • Keyboard port type: USB
  • Mouse port type: USB
  • Video port type: DVI/VGA
  • USB 2.0 Type-A ports quantity: 2
  • USB 2.0 Type-B ports quantity: 1

Keyboard

  • Hot keys: Yes

Certificates

  • Certification: CE, FCC, UL, REACH

Power

  • Power consumption (typical): 19.4 W
  • AC adapter input voltage: 100 - 240 V
  • Input current: 1 A

Operational conditions

  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -20 - 60 °C

Weight & dimensions

  • Width: 480 mm
  • Height: 44 mm
  • Depth: 727 mm
  • Weight: 13.6 kg
  • Mounting depth (min): 65 cm
  • Mounting depth (max): 100 cm

Packaging data

  • Package weight: 18.9 kg
  • Package width: 680 mm
  • Package depth: 840 mm
  • Package height: 133 mm

Packaging content

  • Cables included: Audio (3.5mm), KVM
  • Screws included: Yes
  • Number of screws: 8
  • Mounting brackets included: Yes
  • Cage nuts included: Yes
  • Number of cage nuts: 8
  • Included power plug types: ANZ, EU, JP, NA, UK
  • Quick installation guide: Yes

Logistics data

  • Master (outer) case width: 680 mm
  • Master (outer) case length: 840 mm
  • Master (outer) case height: 133 mm
  • Products per master (outer) case: 1 pc(s)
