StarTech.com 4 Port 1U Rackmount USB KVM Switch with OSD
More info
Brand: STARTECH.COM
212.66 €
175.75 €
without VAT
incl. 21 % VAT
Stock available: 9 units.
Get it
on the
October 14
/
October 15
SKU:
73290
PRC:
47976
EAN:
777785982806
PN:
SV431DUSBU
Description

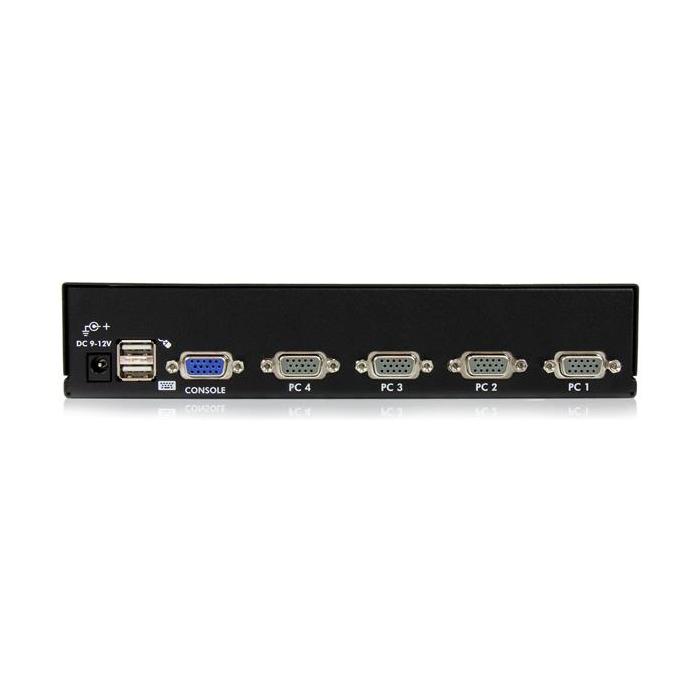

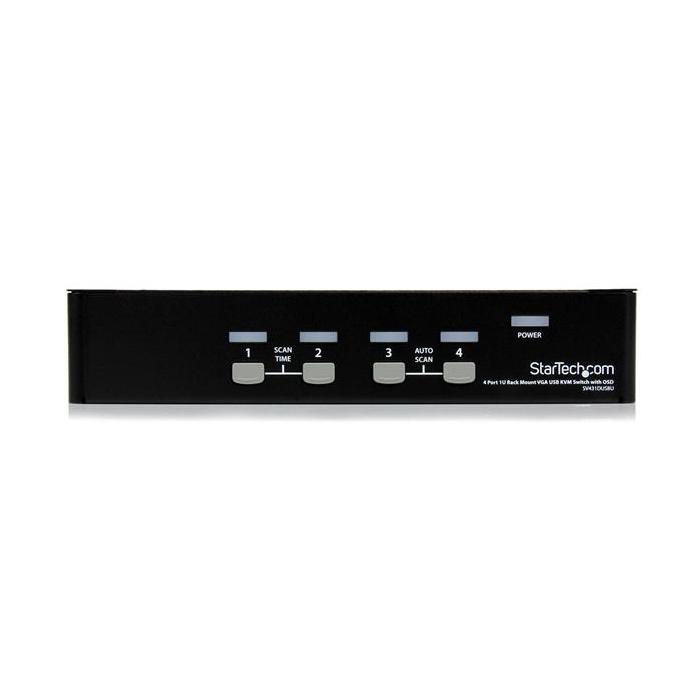

Connect up to four computers to a single console with the StarTech.com 4-port KVM switch, a black solution that allows you to control multiple computers from one workstation. Its console includes USB A and VGA (D-Sub) ports, with two USB 2.0 ports and five VGA (D-Sub) ports distributed between the computers and the console itself. It offers a maximum analogue resolution of 1920 x 1440 pixels to maintain image quality on each connected screen. It features power LED indicators and hotkeys to switch between computers quickly. It has daisy chain connection and Plug and Play functionality, which simplifies setup in multi-system environments. Its 1U form factor allows it to be installed in a rack, with dimensions of 220 x 43 x 130 mm (width x height x depth) and a weight of 957 g, and its DC input plug makes powering the device easy.
Specifications
Ports & interfaces
- Number of computers controlled: 4
- Keyboard port type: No
- Mouse port type: No
- Video port type: VGA
- VGA (D-Sub) ports quantity: 5
- Console ports: USB A, VGA (D-Sub)
- Console USB ports quantity: 2
- USB 2.0 ports quantity: 2
- Audio connections: No
- DC-in jack: Yes
Performance
- Maximum resolution: 1920 x 1440 pixels
- Maximum analog resolution: 1920 x 1440 pixels
- Plug and Play: Yes
- Daisy chain: Yes
Design
- Rack mounting: Yes
- Rack capacity: 1U
- Product colour: Black
- Housing material: Steel
- LED indicators: Power
- Hot keys: Yes
- Mean time between failures (MTBF): 143000 h
- Certification: CE, FCC, TAA, REACH
Display
- Built-in display: No
- On Screen Display (OSD): Yes
Power
- Input voltage: 110 - 240 V
- Input current: 0.2 A
- Output voltage: 9 V
- Output current: 0.6 A
- Power consumption (typical): 5.4 W
- External power adapter: Yes
- Power plug type: Type M
- Compatible power plug types: AU, EU, UK, US
Sustainability
- Compliance certificates: RoHS
Operational conditions
- Operating temperature (T-T): 5 - 40 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 0 - 80%
Weight & dimensions
- Width: 220 mm
- Depth: 130 mm
- Height: 43 mm
- Weight: 957 g
Packaging data
- Package width: 411 mm
- Package depth: 215 mm
- Package height: 89 mm
- Package weight: 1.6 kg
Packaging content
- Manual: Yes
- AC adapter included: Yes
- Rubber feet: Yes
Other features
- Audio support: No
- IP control: No
Logistics data
- Harmonized System (HS) code: 85176200
