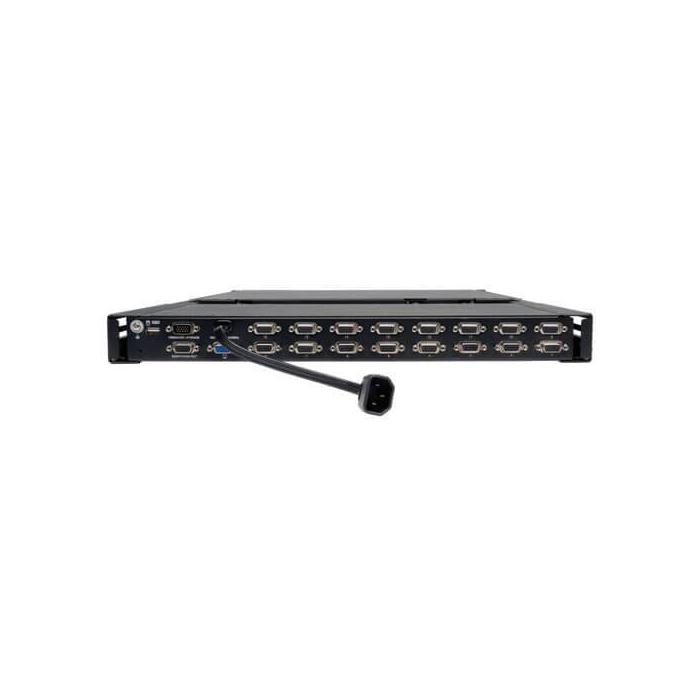

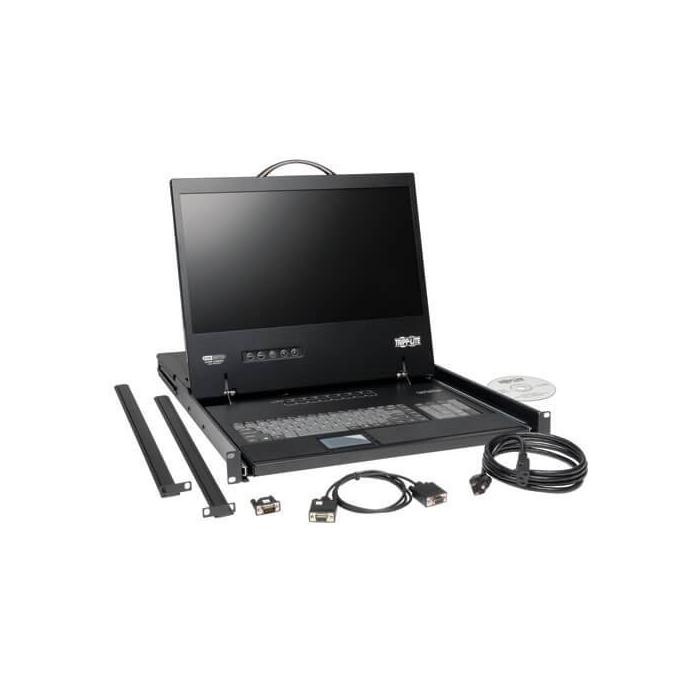

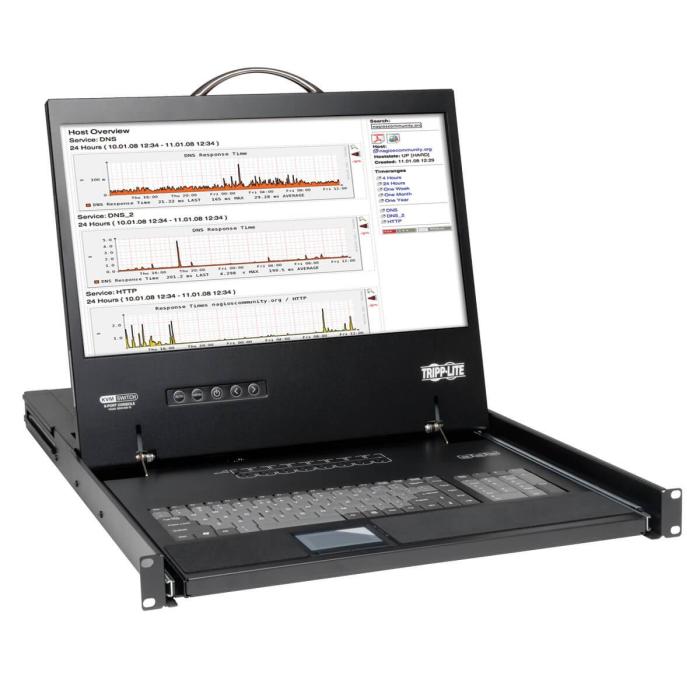

Name: Tripp Lite B040-016-19 NetController 16-Port 1U Rack-Mount Console KVM Switch with 19-in. LCD
Brand: TRIPP LITE
Availability: OutOfStock

Tripp Lite B040-016-19 NetController 16-Port 1U Rack-Mount Console KVM Switch with 19-in. LCD

Not avaliable

Amount

Brand: TRIPP LITE

SKU: 94820 PRC: 386325 EAN: 37332140319 PN: B040-016-19

Description

NetController 16-Port 1U Rack-Mount Console KVM Switch with 19-in. LCD, TAA

Specifications

Display

Display diagonal: 48.3 cm (19")
Display resolution: 1366 x 768 pixels
Display: LCD
On Screen Display (OSD): Yes

Technical details

Material: Galvanized steel
Form factor: 1U
Built-in KVM switch: Yes
KVM switch ports quantity: 16
Compliance certificates: RoHS
Country of origin: Taiwan

Ports & interfaces

I/O ports: 16 x HD15F USB
Interface: PS/2; USB; VGA
Video port type: VGA

Certificates

Certification: UL 60950-1 (USA), CAN/CSA (Canada), FCC Part 15 Class A, CE, IEC 60950-1, TUV (UL), CTUV, CE, FCC, NOM

Power

Power consumption (typical): 30 W
Power consumption (standby): 5 W
AC adapter input voltage: 120/230 V
AC adapter frequency: 50/60 Hz
Input current: 1.4/0.8 A

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C

Weight & dimensions

Width: 449.3 mm
Height: 43.4 mm
Depth: 722.4 mm
Weight: 14.5 kg

Packaging data

Package weight: 18.5 kg
Package width: 591.8 mm
Package depth: 825 mm
Package height: 154.9 mm

Logistics data

Master (outer) case width: 591.8 mm
Master (outer) case length: 825 mm
Master (outer) case height: 154.9 mm
Master (outer) case gross weight: 18.5 kg
Products per master (outer) case: 1 pc(s)
