StarTech.com USB VGA KVM Console Extender over CAT5 UTP (500 ft)

$207.57
$207.57 without VAT

StarTech.com USB VGA KVM Console Extender over CAT5 UTP (500 ft).   More info

Brand: STARTECH.COM
SKU: 74387 PRC: 66029 EAN: 65030834506 PN: SV565UTPUEU

Description

Specifications

Features

  • Type: Transmitter & receiver
  • Connectivity technology: Wired
  • Maximum transfer distance: 150 m
  • Rack mounting: No
  • Product colour: Black
  • Plug and Play: Yes
  • Certification: CE, FCC, RoSH

Transmitter

  • Transmitter video port type: VGA
  • Transmitter local video port: Yes
  • Transmitter local video port type: VGA

Ports & interfaces

  • USB port type: USB Type-A
  • USB 2.0 ports quantity: 4
  • RJ-45 ports quantity: 2

Power

  • Power plug type: Type M
  • AC input voltage: 100 - 240 V
  • Input current: 0.2 A
  • AC adapter output voltage: 9 V
  • AC adapter output current: 0.6 A
  • Power consumption (transmitter) (max): 5.4 W
  • Power consumption (receiver) (max): 5.4 W

Weight & dimensions

  • Transmitter width: 15.5 cm
  • Transmitter depth: 7.5 cm
  • Transmitter height: 2 cm
  • Transmitter weight: 299 g
  • Receiver width: 15.5 cm
  • Receiver depth: 7.5 cm
  • Receiver height: 2 cm
  • Receiver weight: 299 g

Packaging data

  • Package width: 85 mm
  • Package depth: 294 mm
  • Package height: 243 mm
  • Package weight: 1.7 kg

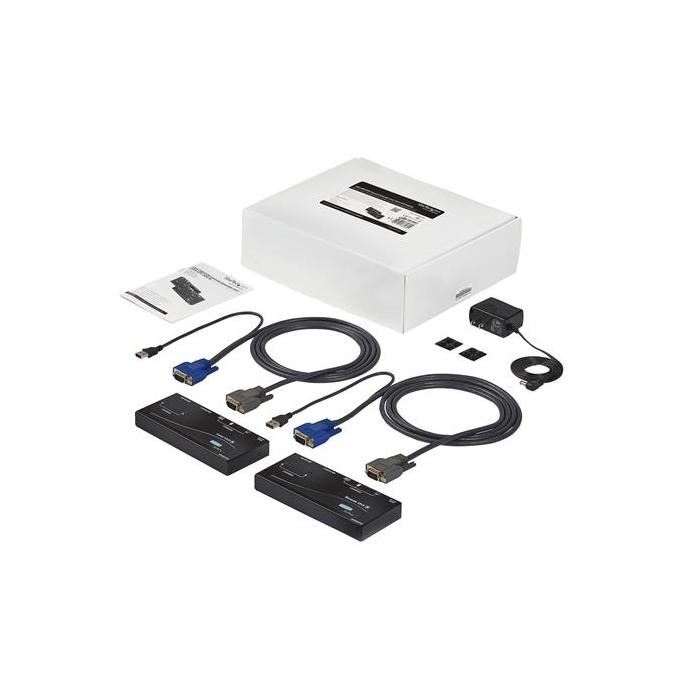

Packaging content

  • AC adapter included: Yes
  • Cables included: KVM
  • Manual: Yes

Operational conditions

  • Operating temperature (T-T): 0 - 50 °C
  • Storage temperature (T-T): -20 - 60 °C
  • Operating relative humidity (H-H): 0 - 80%

Technical details

  • Maximum resolution: 1280 x 1024 pixels
  • Power requirements: 230 AC
  • Weight: 299 g

Logistics data

  • Harmonized System (HS) code: 84733080
