StarTech.com 8 Port 1U Rackmount USB KVM Switch Kit with OSD and Cables
More info
Brand: STARTECH.COM
451.78 €
373.37 €
without VAT
incl. 21 % VAT
Stock available: 7 units.
Get it
on the
October 16
/
October 19
SKU:
73288
PRC:
47971
EAN:
763615990677
PN:
SV831DUSBUK
Description
The black StarTech.com 8-port KVM switch allows you to control up to eight computers from a single console with USB type A connectors and VGA (D-Sub) video. It features two USB 2.0 ports and two USB console ports, plus a keyboard port and a mouse port with USB connection, and offers a maximum analogue resolution of 1920 x 1440 pixels. It is Plug and Play compatible and supports daisy chaining and cascading to expand the number of managed devices. It has hotkeys and LED power indicators, and includes a DC input plug. Its 1U rack format integrates it into server installations, with dimensions of 435 x 45 x 180 mm (width x height x depth) and a weight of 2.2 kg.
Specifications
Ports & interfaces
- Number of computers controlled: 8
- Keyboard port type: USB
- Mouse port type: USB
- Video port type: VGA
- VGA (D-Sub) ports quantity: 9
- Console ports: USB A, VGA (D-Sub)
- Console USB ports quantity: 2
- USB 2.0 ports quantity: 2
- USB connector type: USB Type-A
- DC-in jack: Yes
Performance
- Maximum resolution: 1920 x 1440 pixels
- Maximum analog resolution: 1920 x 1440 pixels
- Plug and Play: Yes
- Daisy chain: Yes
Design
- Rack mounting: Yes
- Rack capacity: 1U
- Product colour: Black
- Housing material: Steel
- Cascadable: Yes
- LED indicators: Power
- Hot keys: Yes
- Certification: CE, FCC, TAA, REACH
Display
- On Screen Display (OSD): Yes
Power
- Input voltage: 100 - 240 V
- Output voltage: 12 V
- Output current: 1 A
- Power consumption (typical): 12 W
- External power adapter: Yes
- Compatible power plug types: AU, EU, UK, US
Sustainability
- Compliance certificates: RoHS
Operational conditions
- Operating temperature (T-T): 5 - 40 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 0 - 80%
Weight & dimensions
- Width: 435 mm
- Depth: 180 mm
- Height: 45 mm
- Weight: 2.2 kg
Packaging data
- Package width: 262 mm
- Package depth: 606 mm
- Package height: 121 mm
- Package weight: 4.7 kg

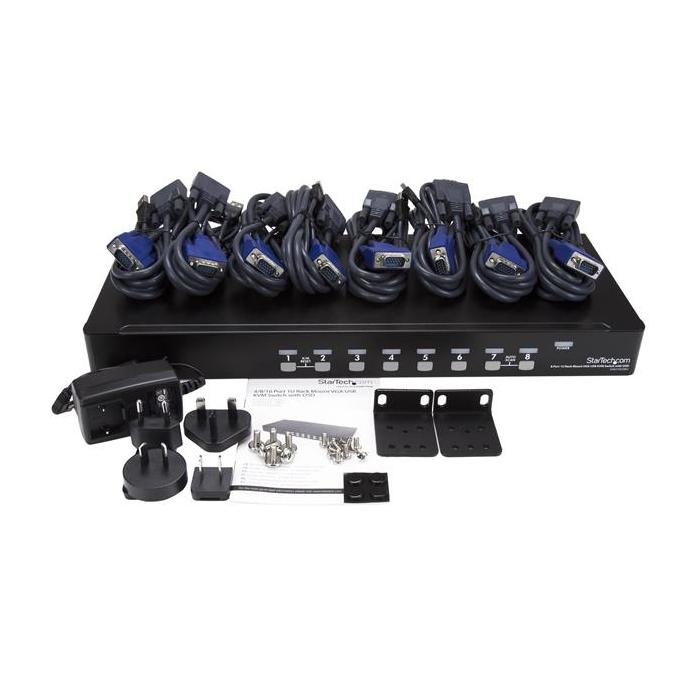

Packaging content
- Rack mount kit: Yes
- Cables included: KVM
- Manual: Yes
- AC adapter included: Yes
Other features
- Audio support: No
- IP control: No
Logistics data
- Harmonized System (HS) code: 85176200
