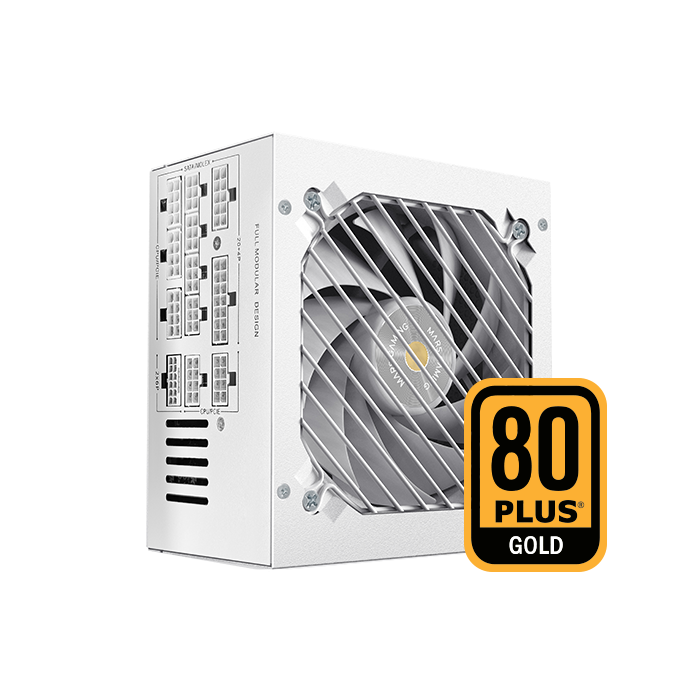

Mars Gaming MPB850PSIW power supply unit 850 W 24-pin ATX ATX White

Mars Gaming MPB850PSIW power supply unit 850 W 24-pin ATX ATX White

Name: Mars Gaming MPB850PSIW power supply unit 850 W 24-pin ATX ATX White
Brand: MARS GAMING
SKU: 611016
Price: 76.44 EUR
Availability: InStock

More info

Brand: MARS GAMING

76.44 €

63.17 € without VAT

Stock available: 18 units.

Get it tomorrow / September 24

SKU: 117087 PRC: 611016 EAN: 8435693111498 PN: MPB850PSIW

Description

The Mars Gaming MPB850PSIW is an 850 W power supply unit with ATX certification and white colour, designed for builds that require a stable supply. It features active power factor correction and accepts an input voltage of 200 to 240 V with a frequency of 47 to 63 Hz and a current of 8 A. Its main +12 V rail delivers up to 70.8 A, which translates into 850 W of combined power, while the +5 V and +3.3 V rails provide 120 W each and the +5 VSB one reaches 12.5 W. The power supply includes a 24-pin ATX power connector and a 4+4 pin EPS power connector for the CPU. With dimensions of 150 x 85 x 160 mm (width x height x depth) and a weight of 1.7 kg, it integrates easily into conventional ATX cases. Its power factor of 0.9 contributes to an efficient use of the supplied energy.

Specifications

Power

Total power: 850 W
AC input voltage: 200 - 240 V
AC input frequency: 47 - 63 Hz
Input current: 8 A
Power factor: 0.9
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 120 W
Combined power (+12V): 850 W
Combined power (+5V): 120 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 12.5 W
Max output current (+3.3V): 18 A
Max output current (+12V): 70.8 A
Max output current (+5V): 18 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 2.5 A
Power protection features: No load operation, Over current, Over power, Over total voltage, Over voltage, Overload, Short circuit, Under voltage
