Description

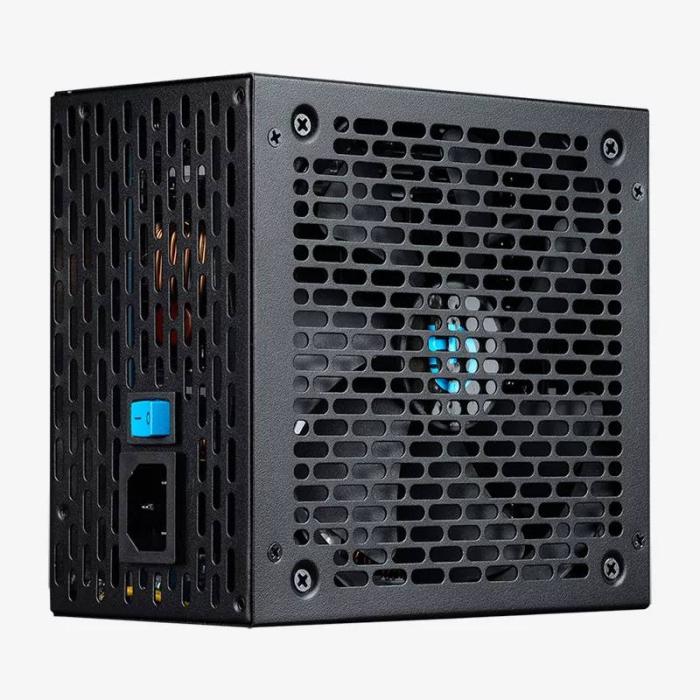

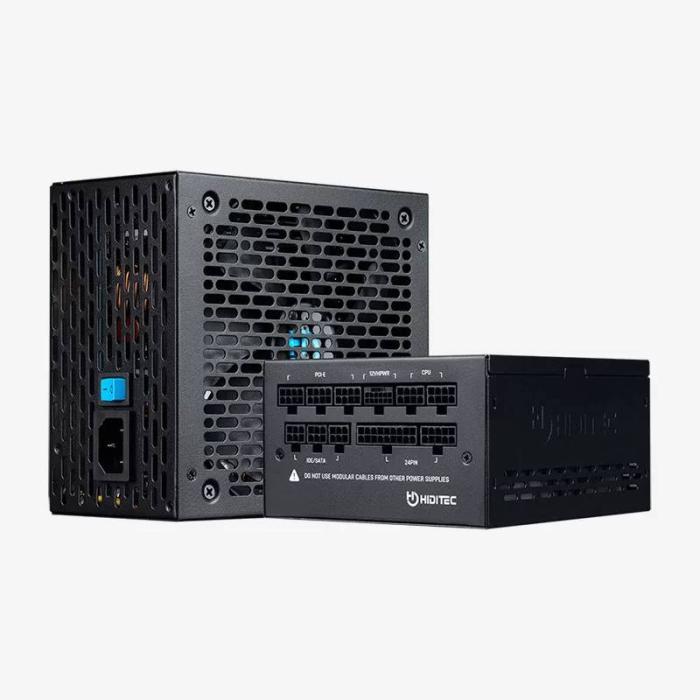

The Hiditec GDX1050 v2 is a 1050 W ATX power supply unit in black, measuring 150 x 160 x 86 mm and weighing 2.2 kg. Its cabling is fully modular, and it includes a 20+4 pin ATX power connector for the motherboard, a 4+4 pin EPS connector, six 6+2 pin PCI Express connectors and three 4 pin Molex peripheral connectors. It supports an AC input voltage of 100 to 240 V and offers a maximum output current of 88 A on the +12V rail, 20 A on +3.3V, 20 A on +5V, 3 A on +5Vsb and 0.5 A on -12V. It incorporates protection features against overcurrent, overvoltage, short circuit, undervoltage and surge and inrush protection. It complies with the ATX 3.0 version, is designed for PC systems and declares a mean time between failures of 100000 h.
Specifications
Power
- Total power: 1050 W
- AC input voltage: 100 - 240 V
- Max output current (+3.3V): 20 A
- Max output current (+12V): 88 A
- Max output current (+5V): 20 A
- Max output current (-12V): 0.5 A
- Max output current (+5Vsb): 3 A
- Power protection features: Over power, Over voltage, Short circuit, Surge & inrush protection (SIP), Under voltage
Ports & interfaces

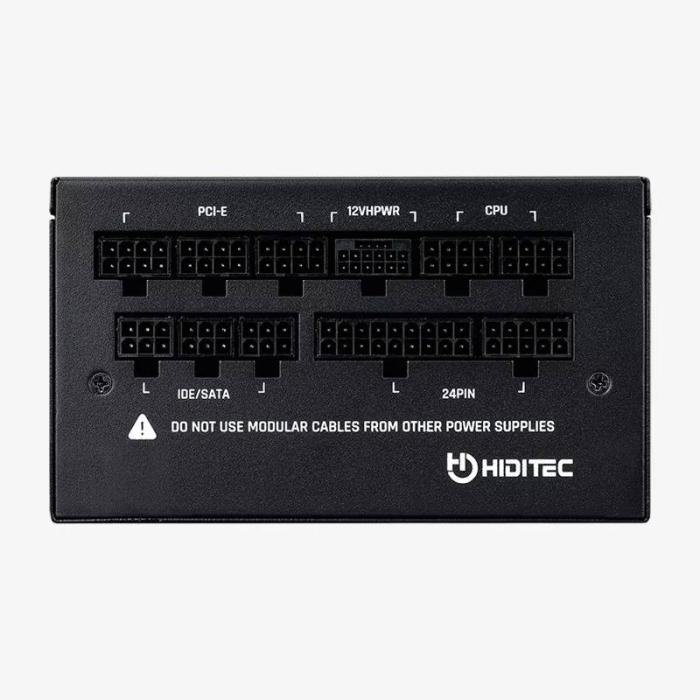

- Motherboard power connector: 20+4 pin ATX
- Peripheral (Molex) power connectors (4-pin): 3
- EPS power connector (4+4 pin): Yes
- PCI Express power connectors (6+2 pin): 6
- PCI Express connector: Yes

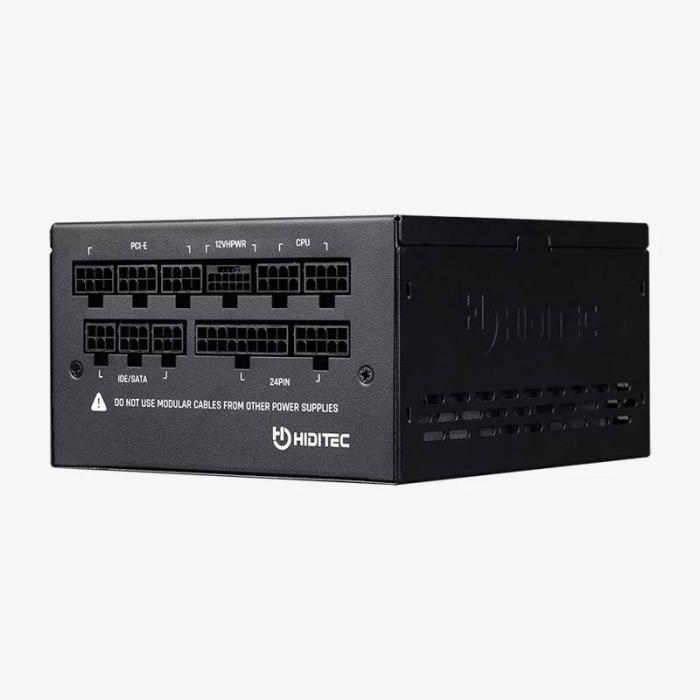

- Cabling type: Fully-Modular
Performance
- 80 PLUS certification: 80 PLUS Gold
- Purpose: PC
- Power supply unit (PSU) form factor: ATX
- ATX version: 3.0
- Bearing technology: FDB
- Mean time between failures (MTBF): 100000 h
Design
- Product colour: Black
- Cooling type: Active

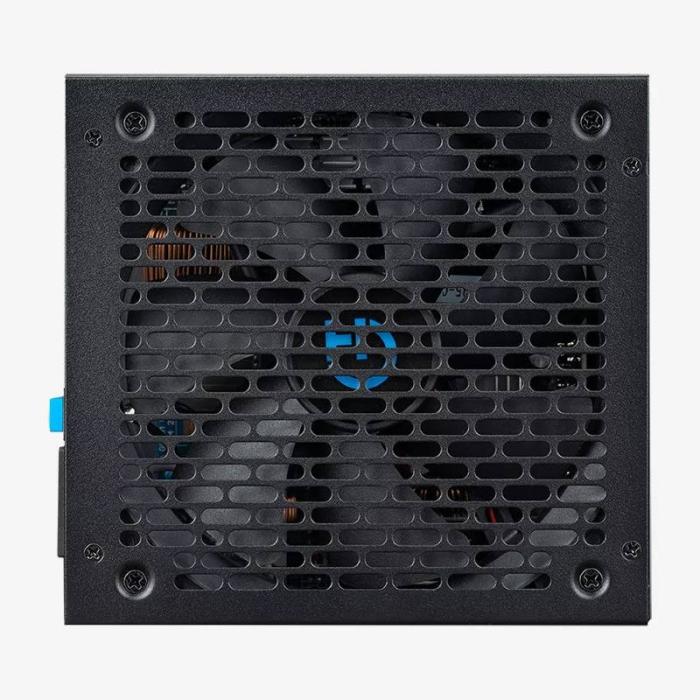

- Fan diameter: 14 cm
- Number of fans: 1 fan(s)
- On/off switch: Yes
Certificates
- Compliance certificates: CE, Federal Communications Commission (FCC), RoHS
Weight & dimensions
- Width: 150 mm
- Depth: 86 mm
- Height: 160 mm
- Weight: 2.2 kg
Technical details
- Sustainability compliance: Yes
Logistics data
- Warranty period: 5 year(s)
