Description

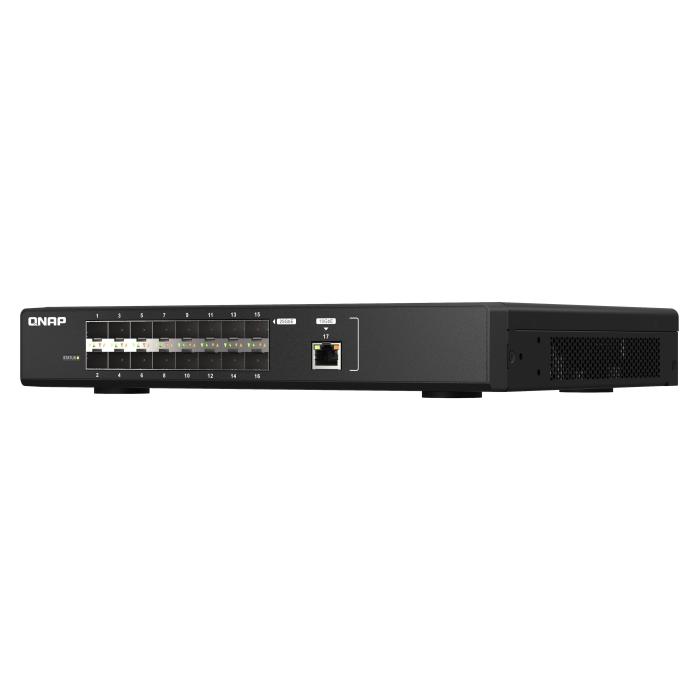

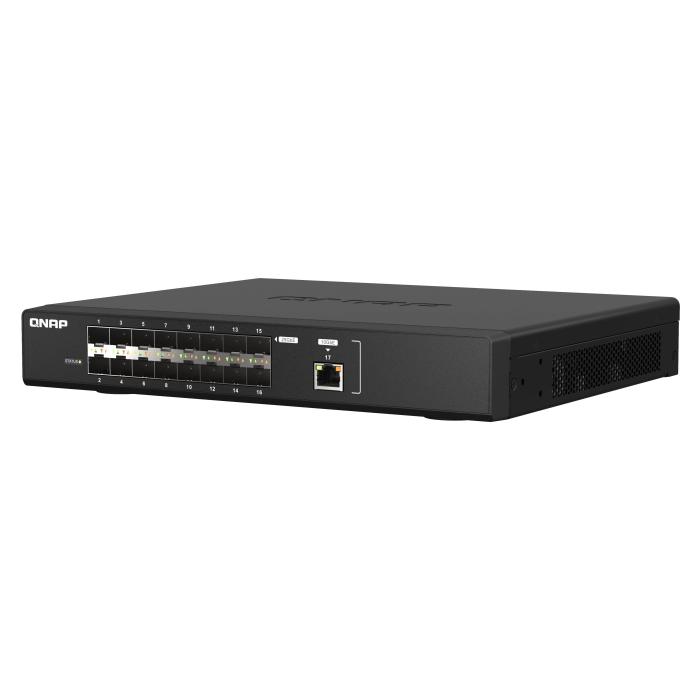

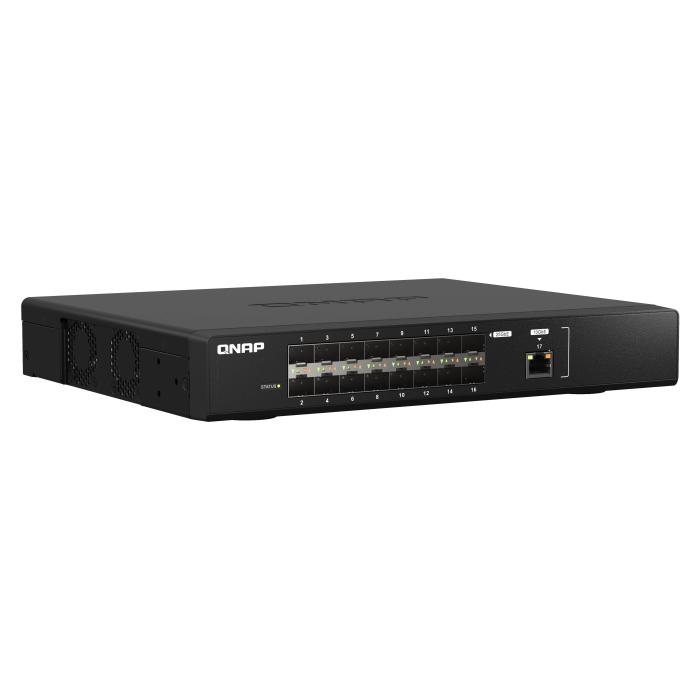

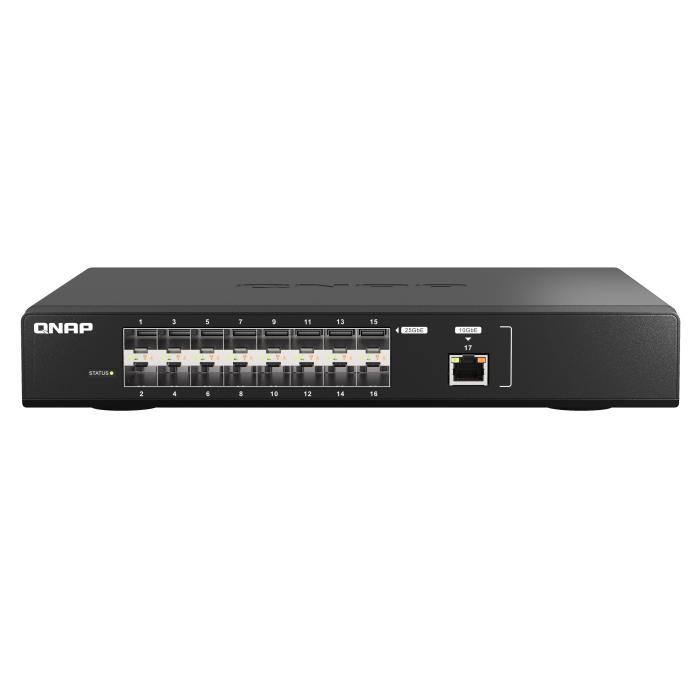

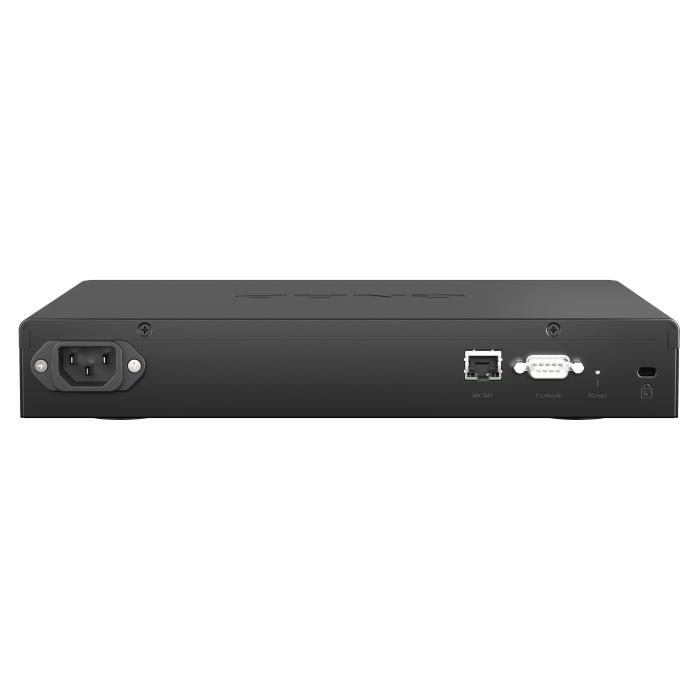

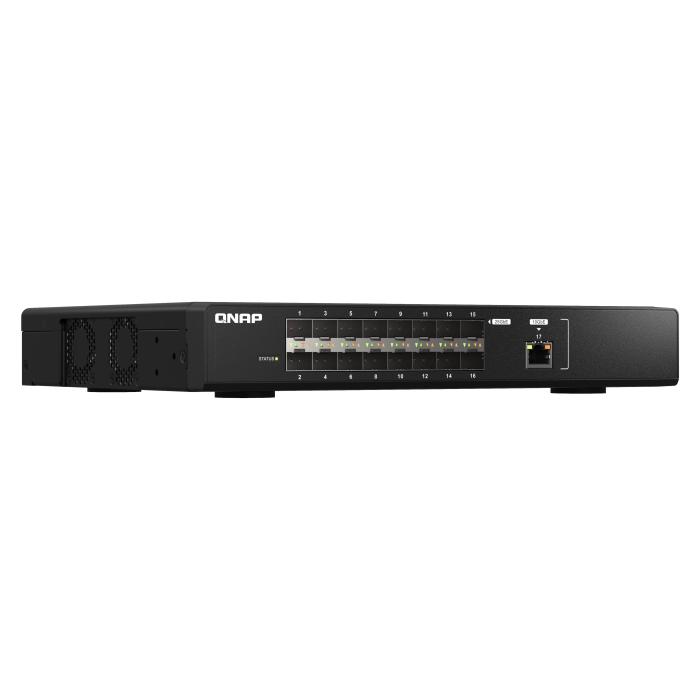

The QNAP QSW-M5216-1T managed switch, in black, is an L2 layer device designed to expand and organise high-demand networks. It incorporates 16 SFP28 ports with fibre optic connector, which allows working with high-speed fibre channels. It offers 10G support and auto-negotiation, as well as a switching capacity of 820 Gbit/s and a throughput of 410 Gbit/s. Its MAC address table supports 32000 entries and Jumbo frames reach up to 9000, with Jumbo Frames support. Management is carried out through web-based administration, and includes an RS-232 console port for local configuration. As for security, it incorporates IGMP, access control list (ACL) and DHCP client. The device measures 285 x 43.5 x 237.7 mm (width x height x depth) and weighs 2.15 kg, a manageable format for rack or desktop installation.
Specifications
Management features
- Switch type: Managed
- Switch layer: L2
- Quality of Service (QoS) support: Yes
- Web-based management: Yes
Ports & interfaces
- Fiber ports quantity: 16
- Fiber optic connector: SFP28
- Console port: RS-232
- SFP28 ports quantity: 16
Network
- Networking standards: IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3an, IEEE 80
- 10G support: Yes
- Auto-negotiation: Yes
Data transmission
- Switching capacity: 820 Gbit/s
- Throughput: 410 Gbit/s
- MAC address table: 32000 entries
- Jumbo frames support: Yes
- Jumbo frames: 9000
Security
- DHCP features: DHCP client
- Access Control List (ACL): Yes
- IGMP snooping: Yes
Design
- Rack mounting: Yes
- Stackable: No
- Product colour: Black
- Reset button: Yes
- LED indicators: Activity, Link, Power, Speed, Status
- Electromagnetic compatibility: CLASS A
Performance
- Firmware upgradeable: Yes
Power
- AC input frequency: 50 - 60 Hz
- Power consumption (max): 80 W
- Power source: AC
- Power supply included: Yes
- AC input voltage: 100 - 240 V
Power over Ethernet (PoE)
- Power over Ethernet (PoE): No
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 5 - 95%
Weight & dimensions
- Width: 285 mm
- Depth: 237.7 mm
- Height: 43.5 mm
- Weight: 2.15 kg
Packaging content
- Cables included: AC
- Quick start guide: Yes
- Rack mount kit: Yes
Packaging data
- Package weight: 2.85 kg
Certificates
- Certification: CE, FCC, VCCI, BSMI
Logistics data
- Harmonized System (HS) code: 85176990
