Description

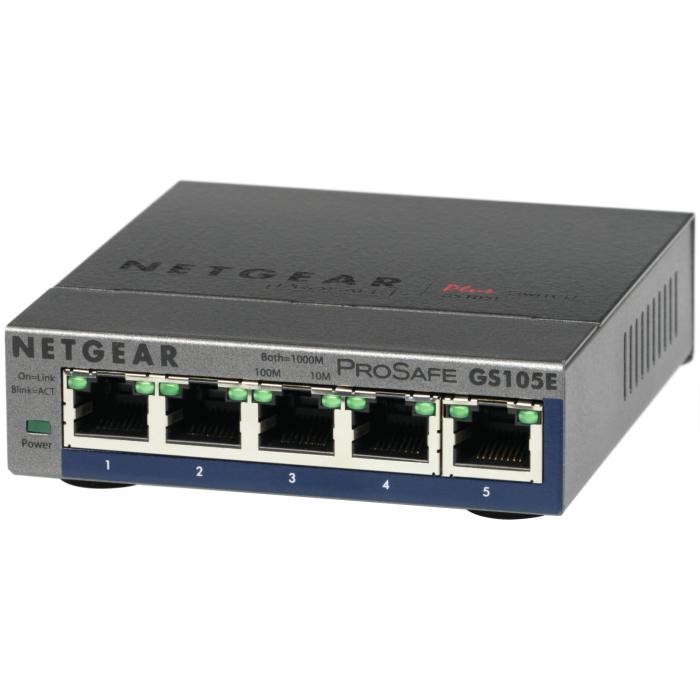

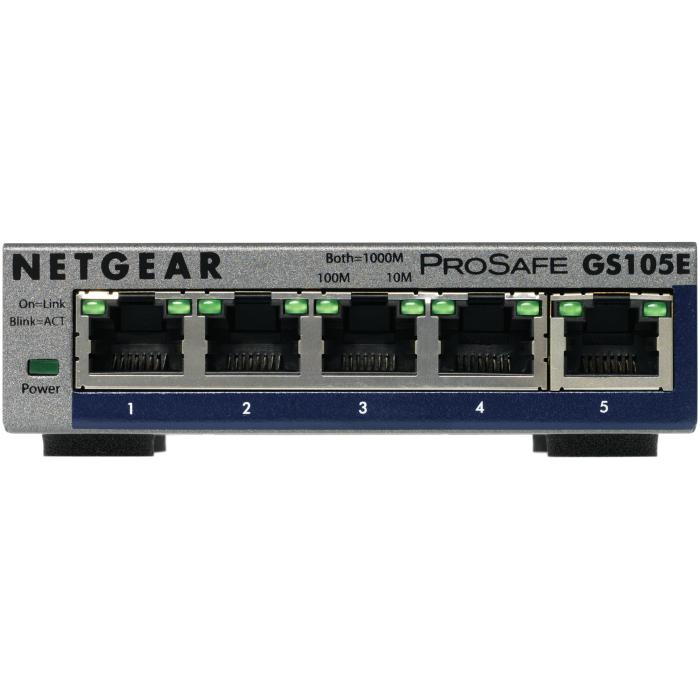

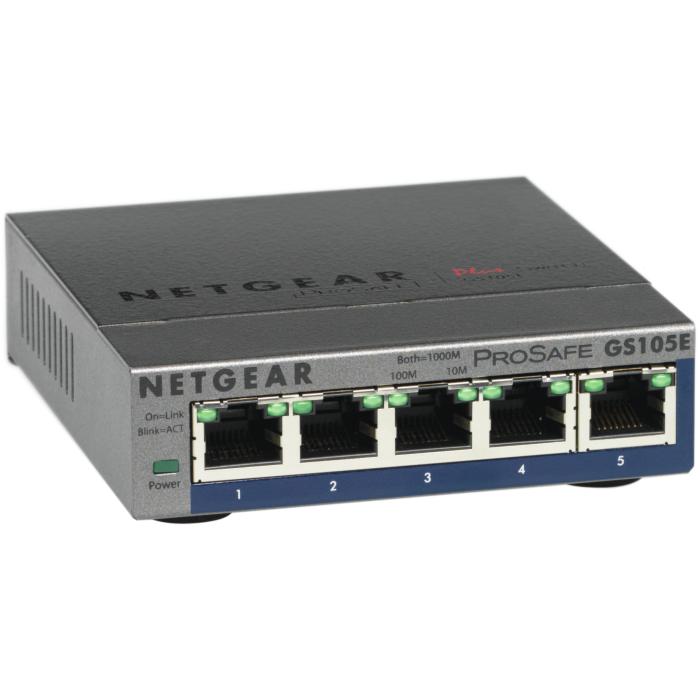

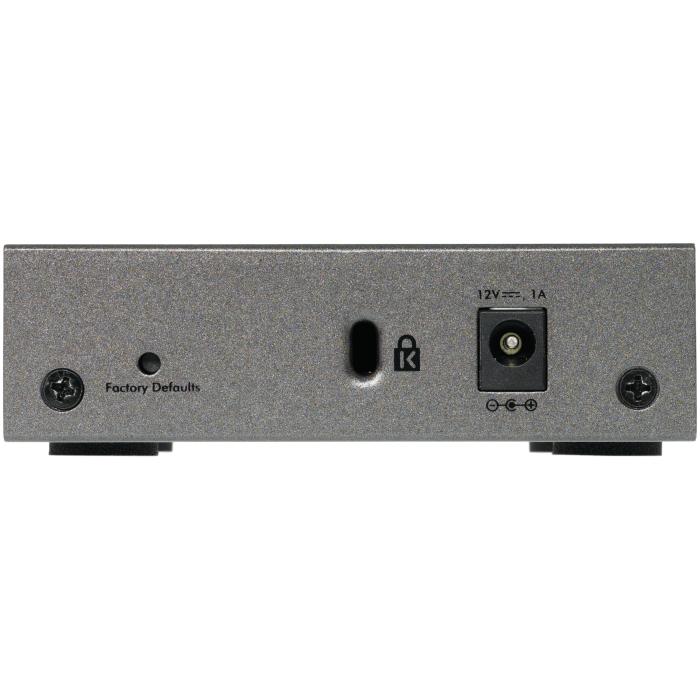

The NETGEAR GS105E-200PES is a managed L2/L3 switch with five Gigabit Ethernet (10/100/1000) ports in grey. It incorporates management functions such as QoS, VLAN support with up to 64 VLANs and port mirroring, as well as flow control and storm transmission control. Its MAC address table supports 8000 entries and offers a switching capacity of 10 Gbit/s. It is compatible with the IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3i, IEEE 802.3u and IEEE 802.3x standards, and works with 1000BASE-T, 100BASE-T and 10BASE-T copper Ethernet cabling in full duplex mode. It supports Jumbo Frames and IGMP. Its dimensions are 94 x 26 x 101 mm (width x height x depth) and its weight is 270 g, making it compact for integration into small network installations.
Specifications
Management features
- Switch type: Managed
- Switch layer: L2/L3
- Quality of Service (QoS) support: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 5
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Network
- Networking standards: IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
- 10G support: No
- Copper ethernet cabling technology: 1000BASE-T, 100BASE-T, 10BASE-T
- Port mirroring: Yes
- Full duplex: Yes
- Flow control support: Yes
- Broadcast storm control: Yes
- VLAN support: Yes
- Number of VLANs: 64
Data transmission
- Switching capacity: 10 Gbit/s
- MAC address table: 8000 entries
- Jumbo frames support: Yes
Security
- DHCP features: DHCP client
- IGMP snooping: Yes
Multicast features
- Multicast support: Yes
- Number of multicast groups filtered: 128
Design
- Stackable: No
- Product colour: Grey
- LED indicators: Yes
Power over Ethernet (PoE)
- Power over Ethernet (PoE): No
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -20 - 70 °C
- Operating relative humidity (H-H): 0 - 90%
- Storage relative humidity (H-H): 0 - 95%
- Operating altitude: 0 - 3000 m
Weight & dimensions
- Width: 94 mm
- Depth: 101 mm
- Height: 26 mm
- Weight: 270 g
Packaging content
- Quick start guide: Yes
Certificates
- Certification: CE,CSA (CSA 22.2 #950) UL (UL 1950)/cUL IEC 950/EN 60950 FCC Part 15, VCCI, EN55022 (CISPR 22), C-Tick, EN50082-1, EN55024, C
Logistics data
- Harmonized System (HS) code: 85176990
