Description

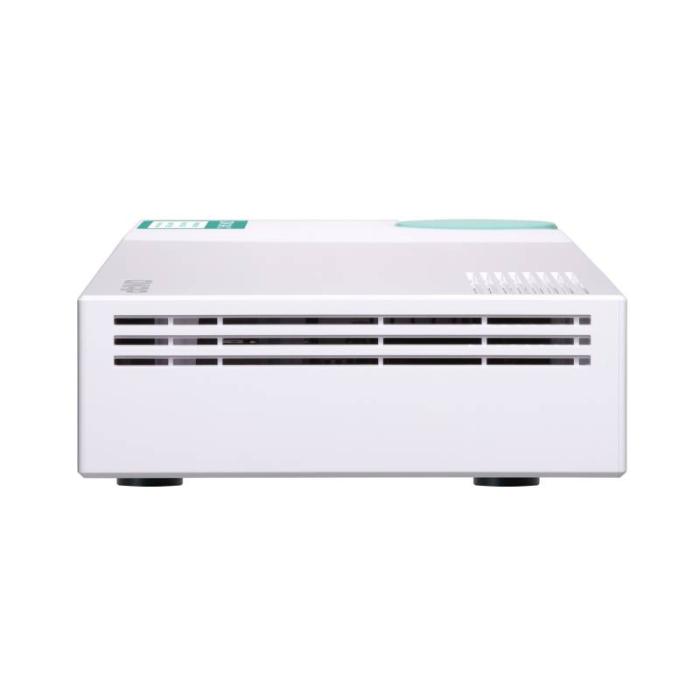

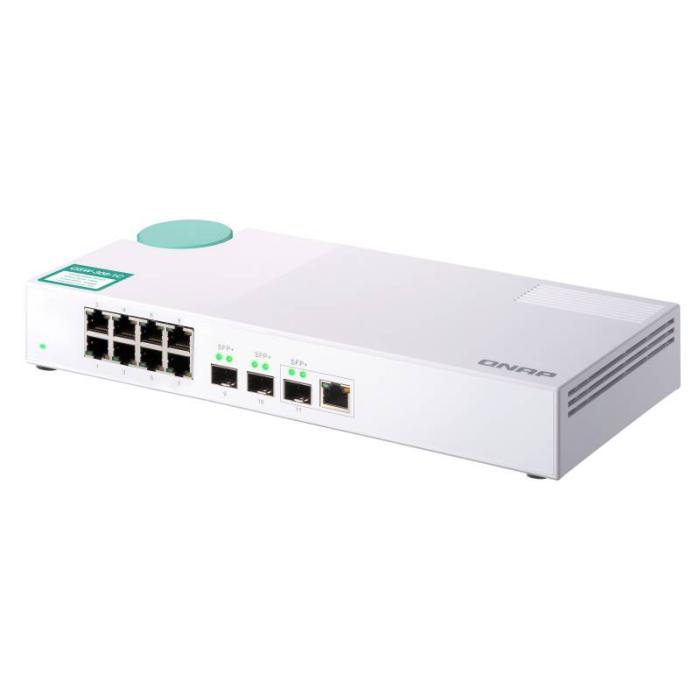

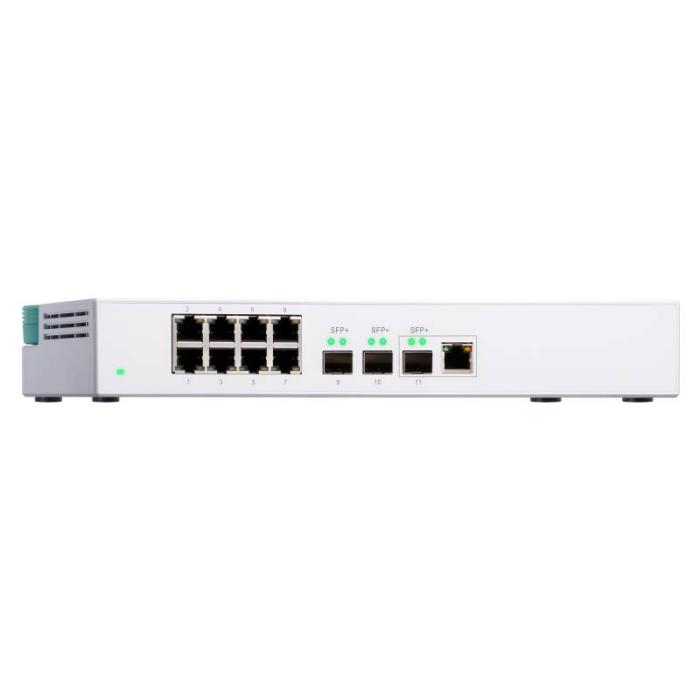

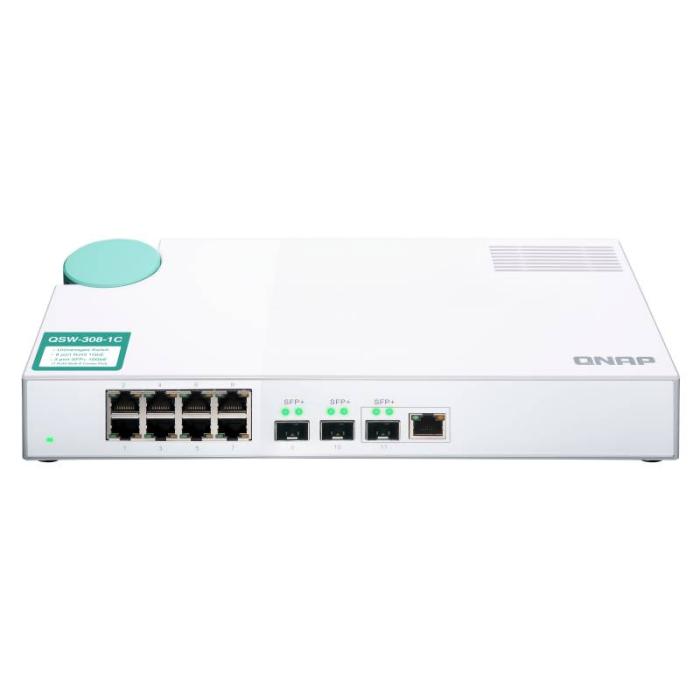

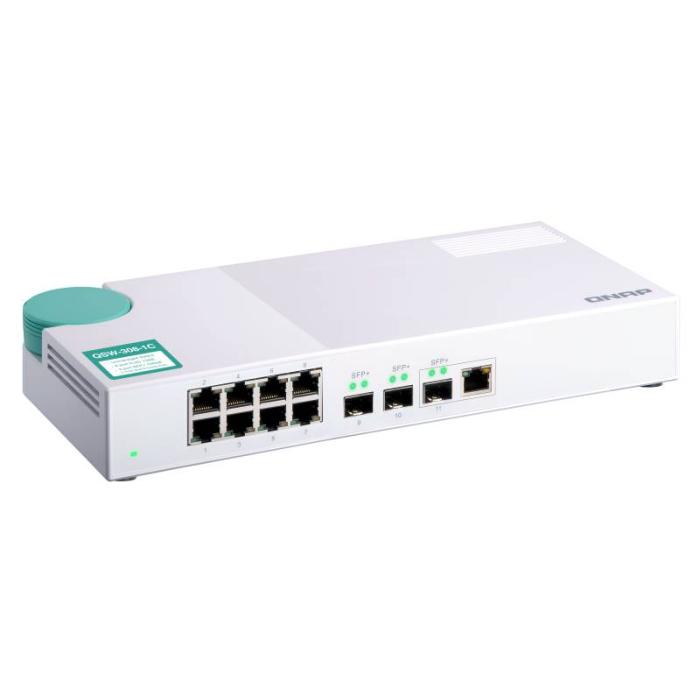

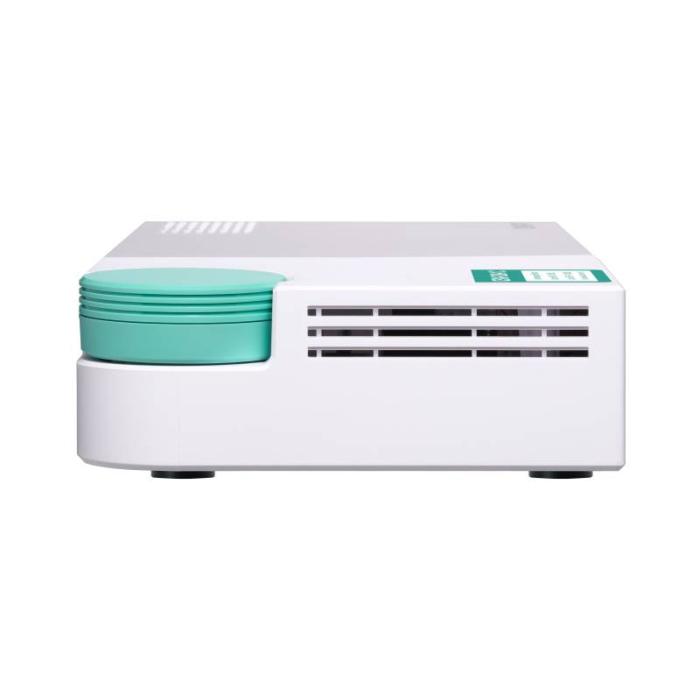

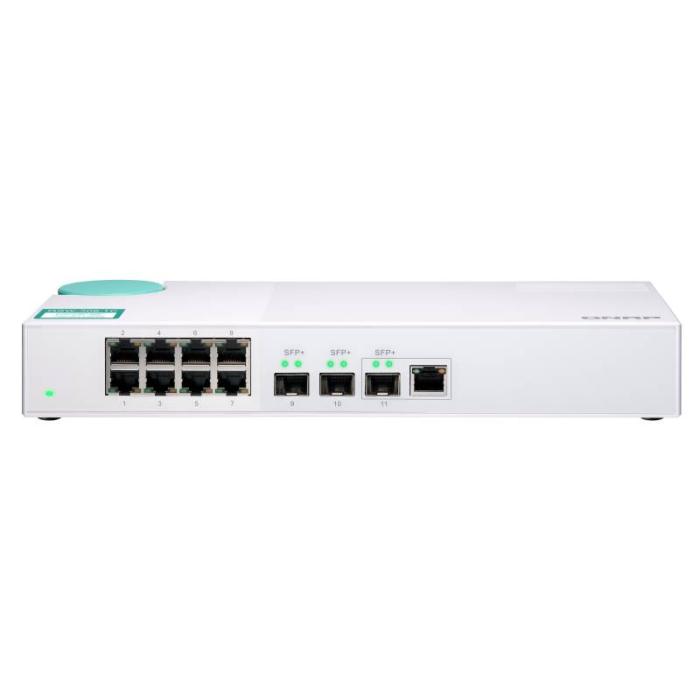

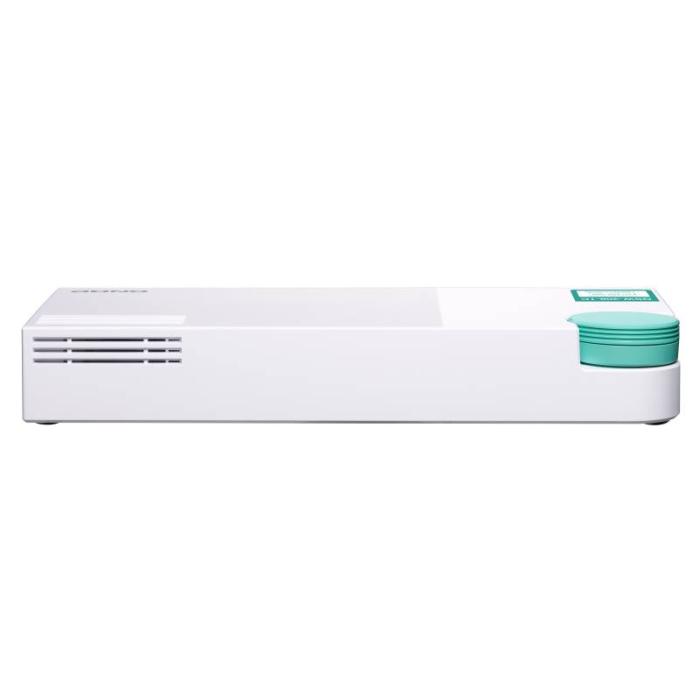

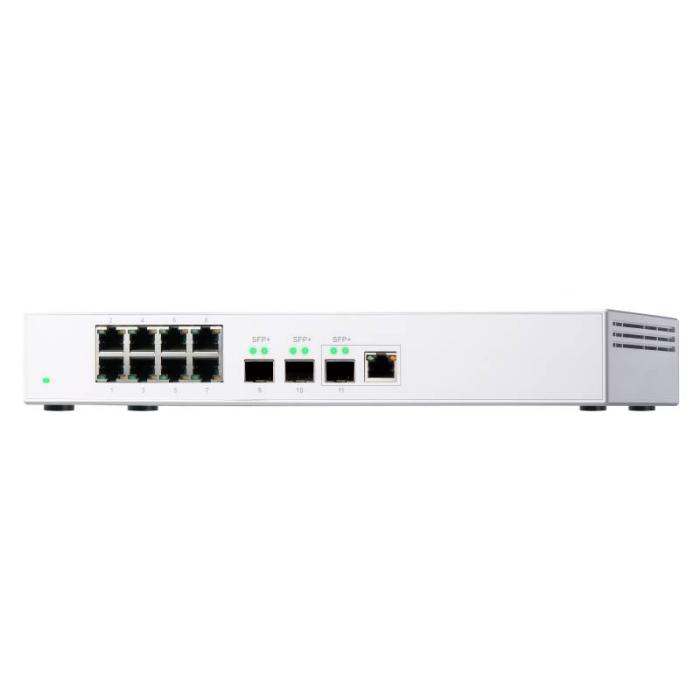

QNAP QSW-308-1C unmanaged switch in white, with eight Gigabit Ethernet RJ-45 ports and two SFP+ slots for 10G links, plus an additional combo SFP port. This switch offers a switching capacity of 76 Gbit/s and a throughput of 38 Gbit/s, with support for jumbo frames up to 10000 bytes to optimise data transfer. The MAC address table holds up to 16000 entries, and it features eight priority queues to manage network traffic efficiently. Compatible with Cat5e, Cat6a, Cat6e and Cat7 cables, and with standards such as IEEE 802.3, 802.3ab, 802.3an, 802.3bz and 802.3u, it ensures stable connectivity. Activity, link, power, speed and status LED indicators facilitate device monitoring.
Specifications
Management features
- Switch type: Unmanaged
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 8
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Gigabit Ethernet (copper) ports quantity: 8
- Combo SFP ports quantity: 1
- SFP+ module slots quantity: 2
Network
- Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3bz, IEEE 802.3u
- 10G support: Yes
- Copper ethernet cabling technology: 10GBASE-T, 100BASE-TX, 1000BASE-T
- Cable types supported: Cat5e, Cat6a, Cat6e, Cat7
Data transmission
- Switching capacity: 76 Gbit/s
- Throughput: 38 Gbit/s
- MAC address table: 16000 entries
- Number of queues: 8
- Jumbo frames support: Yes
- Jumbo frames: 10000
Design
- Rack mounting: No
- Product colour: White
- LED indicators: Activity, Link, Power, Speed, Status
- Electromagnetic compatibility: CLASS B, UL62368
Performance
- Fanless: Yes
Power
- Power source: AC
- Power supply included: Yes
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Input current: 2.5 A
- Power consumption (max): 36 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): No
Other features
- Warranty period: 2 year(s)
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 5 - 95%
Weight & dimensions
- Width: 290 mm
- Depth: 127 mm
- Height: 42.5 mm
- Weight: 770 g
Packaging content
- Cables included: AC
- Quick start guide: Yes
Packaging data
- Package weight: 1.19 kg
- Package type: Box
- Package width: 315 mm
- Package depth: 219 mm
- Package height: 60 mm
Certificates
- Certification: CE, FCC, VCCI, BSMI RCM, CCC
Logistics data
- Harmonized System (HS) code: 85176990
- Country of origin: Taiwan
- Products per master (outer) case: 8 pc(s)
