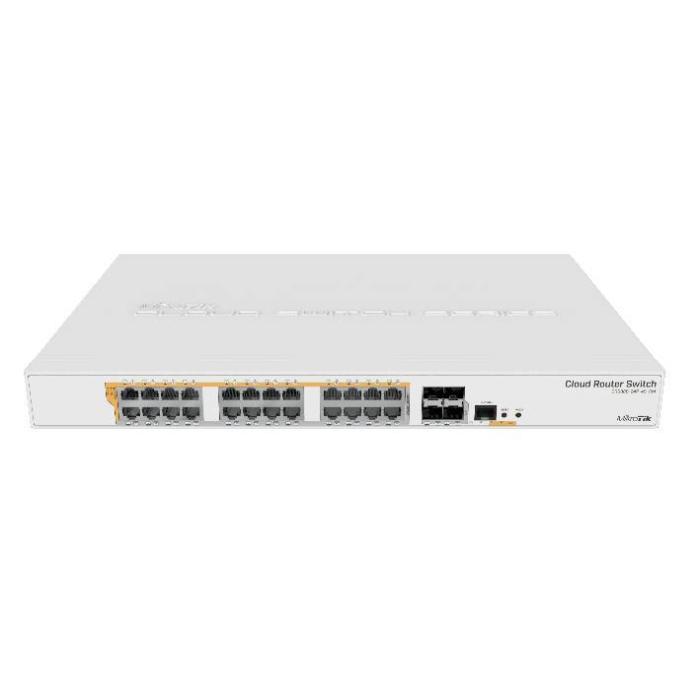

Mikrotik CRS328-24P-4S+RM network switch Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U White
More info
Brand: MIKROTIK
450.80 €
372.56 €
without VAT
Stock available: 4 units.
Get it
on the
September 1
/
September 2
SKU:
81004
PRC:
230760
EAN:
4752224002228
PN:
CRS328-24P-4S+RM
Description
The managed Mikrotik CRS328-24P-4S+RM switch, in 1U format with a white finish, offers 24 RJ-45 Gigabit Ethernet ports (10/100/1000) with PoE support and 4 SFP+ slots for high-speed fibre links. Managed with L2/L3 layers, it includes functions such as QoS, port mirroring, link aggregation and storm control, as well as support for up to 4000 VLANs in accordance with the IEEE 802.1Q standard. Its switching capacity reaches 128 Gbit/s, with a forwarding rate of 64000 Mpps and support for Jumbo Frames. This model incorporates an RJ-45 console port and auto-detection, complying with IEEE 802.3ad network standards, which facilitates the management and expansion of your network infrastructure.
Specifications
Management features
- Switch type: Managed
- Switch layer: L2/L3
- Quality of Service (QoS) support: Yes
- System event log: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 24
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- SFP+ module slots quantity: 4
- Console port: RJ-45
Network
- Networking standards: IEEE 802.1Q, IEEE 802.3ad
- Port mirroring: Yes
- Link aggregation: Yes
- Broadcast storm control: Yes
- Auto-sensing: Yes
- VLAN support: Yes
- Number of VLANs: 4000
Data transmission
- Switching capacity: 128 Gbit/s
- Throughput: 64000 Mpps
- Forwarding rate: 95.2 Mpps
- MAC address table: 16000 entries
- Jumbo frames support: Yes
- Jumbo frames: 10218
Security
- Access Control List (ACL): Yes
- IGMP snooping: Yes
Protocols
- Management protocols: SNMP
Design
- Rack mounting: Yes
- Form factor: 1U
- Product colour: White
- LED indicators: Yes
- Number of fans: 2 fan(s)
Performance
- Built-in processor: Yes
- Processor manufacturer: ARM
- Processor frequency: 800 MHz
- Internal memory: 512 MB
- Flash memory: 16 MB
- Mean time between failures (MTBF): 200000 h
Power
- Power source: AC
- Power supply included: Yes
- Number of power supply units: 2
- AC input voltage: 100 - 240 V
- Power consumption (max): 44 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
- Power over Ethernet (PoE) type supported: Passive PoE, PoE+
- Power over Ethernet (PoE) ports quantity: 24
- Power over Ethernet (PoE) voltage: 26 V
- Power over Ethernet (PoE) power per port: 30 W
- Total Power over Ethernet (PoE) budget: 450 W
Operational conditions
- Operating temperature (T-T): -20 - 60 °C
Weight & dimensions
- Width: 443 mm
- Depth: 300 mm
- Height: 44 mm
Packaging content
- Cables included: AC
- Rack mount kit: Yes
Logistics data
- Harmonized System (HS) code: 85176990
