Description

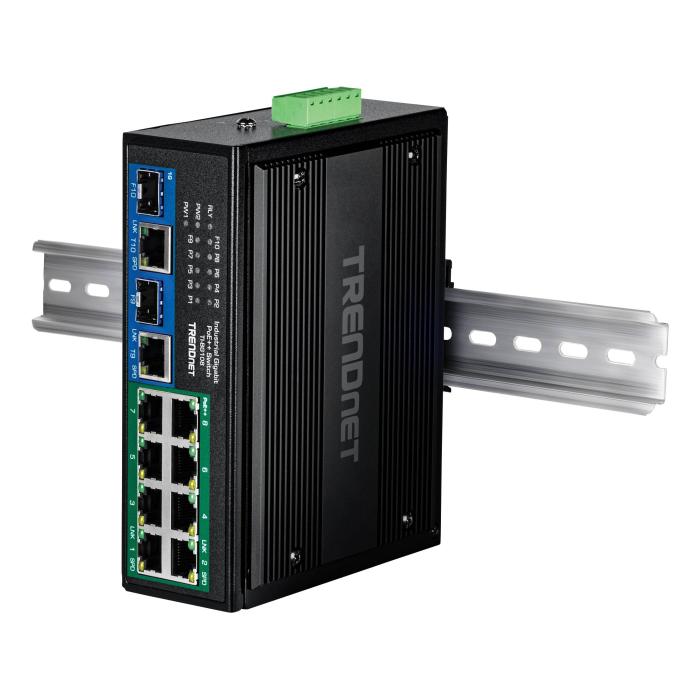

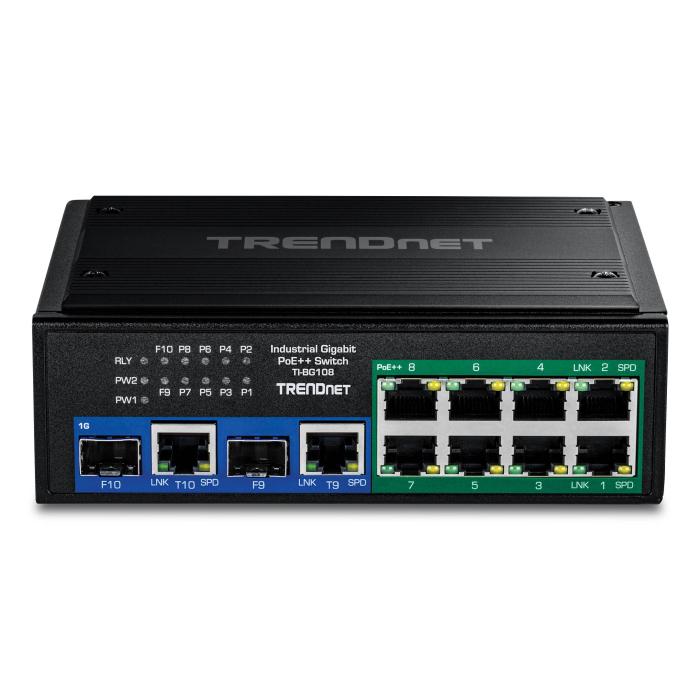

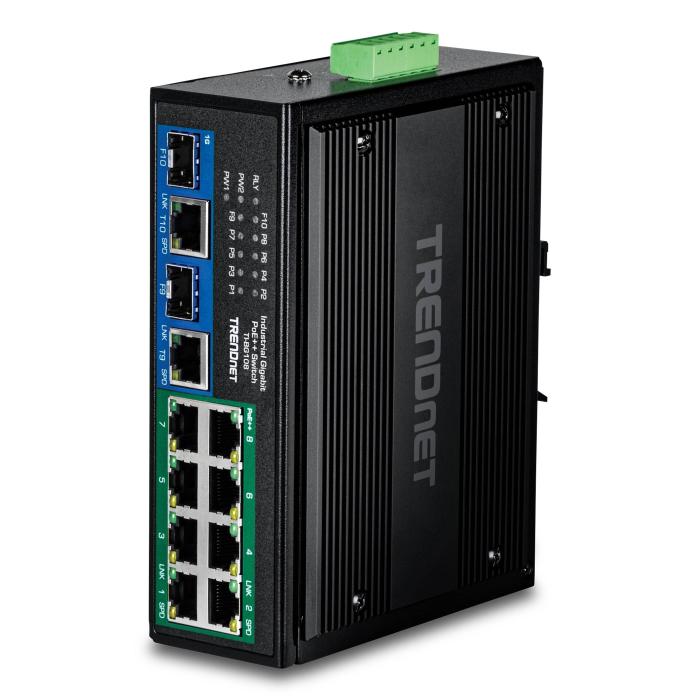

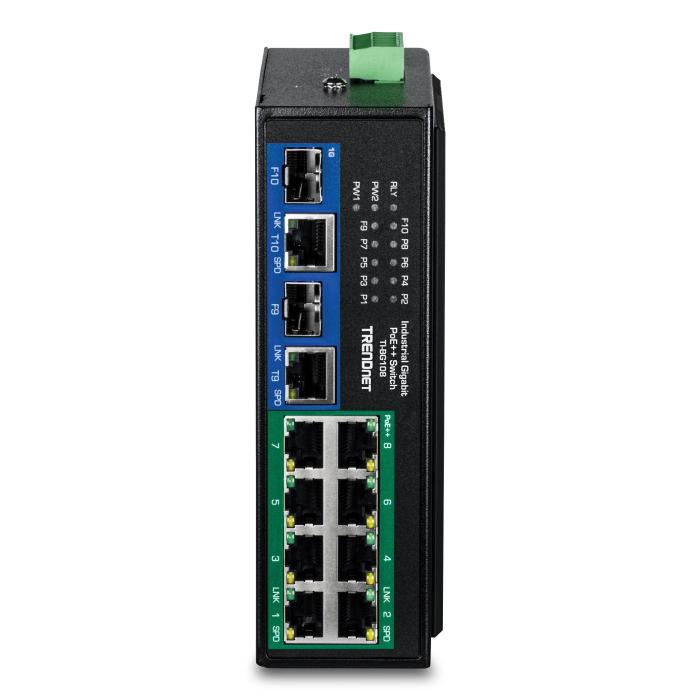

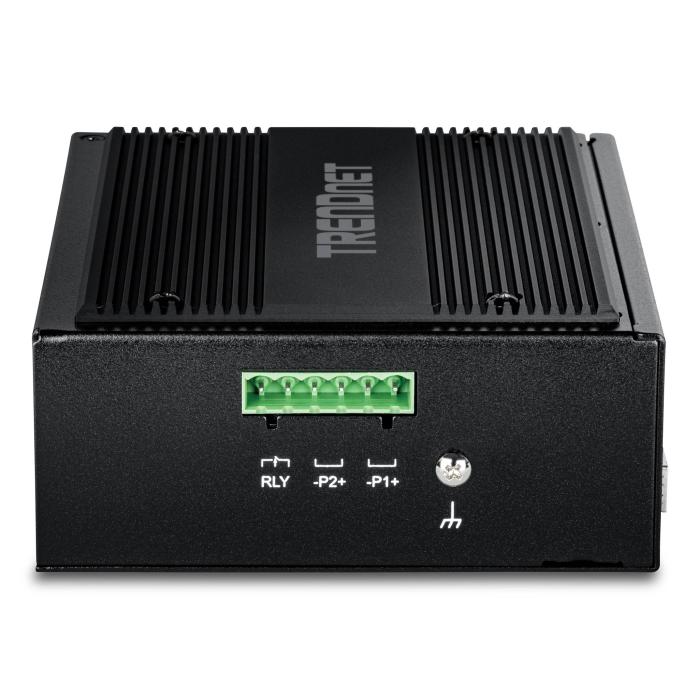

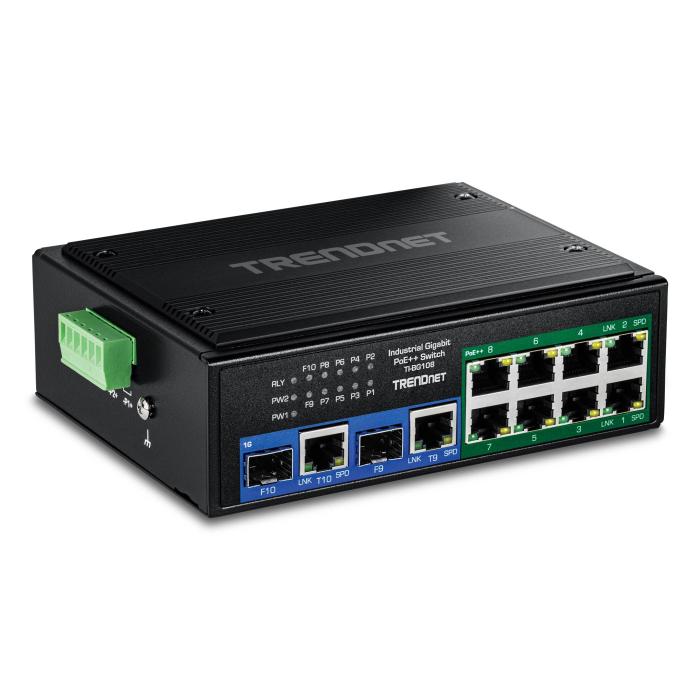

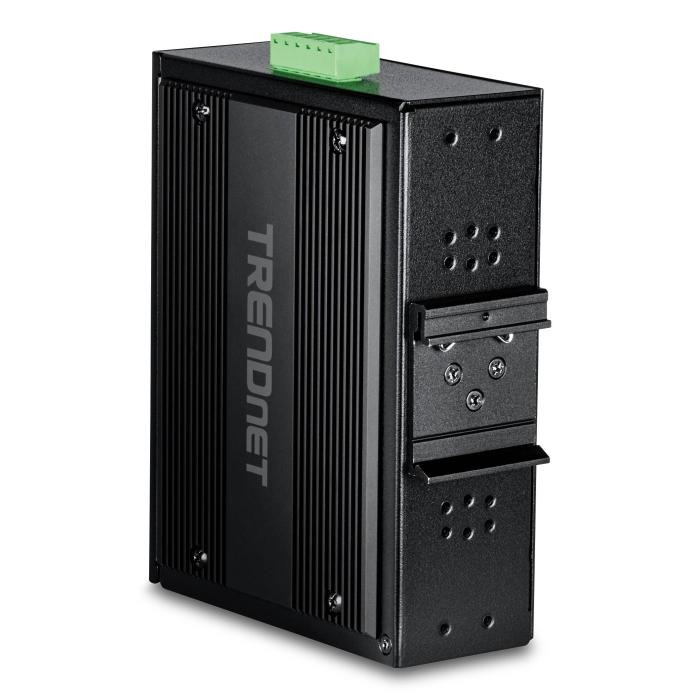

The Trendnet TI-BG108 switch, in a black finish, integrates eight RJ-45 Gigabit Ethernet (10/100/1000) ports with PoE support to power network devices directly from the unit. This model offers two SFP+ slots for additional fibre links, a switching capacity of 20 Gbit/s and Jumbo frame support of up to 10000 bytes, enabling efficient data flow. Its MAC address table of 11000 entries and a forwarding rate of 8.9 Mpps facilitate communication between multiple connected devices. With DIN rail mounting and IP50 protection, this switch is designed for installations in cabinets or industrial environments requiring a reliable and easily expandable connection.
Specifications
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 8
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- SFP+ module slots quantity: 2
Network
- Networking standards: IEEE 802.2x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3z
- 10G support: No
- Full duplex: Yes
- Half duplex: Yes
- Auto-negotiation: Yes
Data transmission
- Switching capacity: 20 Gbit/s
- Forwarding rate: 8.9 Mpps
- MAC address table: 11000 entries
- Store-and-forward: Yes
- Jumbo frames support: Yes
- Jumbo frames: 10000
- Packet buffer memory: 0.4 MB
Design
- Product colour: Black
- Housing material: Metal
- International Protection (IP) code: IP50
- Wall mountable: Yes
- DIN rail mounting: Yes
Performance
- Mean time between failures (MTBF): 515469 h
Power
- Power source: DC/PoE
- DC input voltage: 48 - 56 V
- Power consumption (max): 8.5 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
- Power over Ethernet (PoE) type supported: PoE++ (4PPoE)
- Power over Ethernet 4PPoE (PoE++) ports quantity: 8
- Total Power over Ethernet (PoE) budget: 400 W
Operational conditions
- Operating temperature (T-T): -40 - 75 °C
Weight & dimensions
- Width: 156 mm
- Depth: 122 mm
- Height: 48 mm
- Weight: 602 g
Certificates
- Certification: CE FCC
