Description

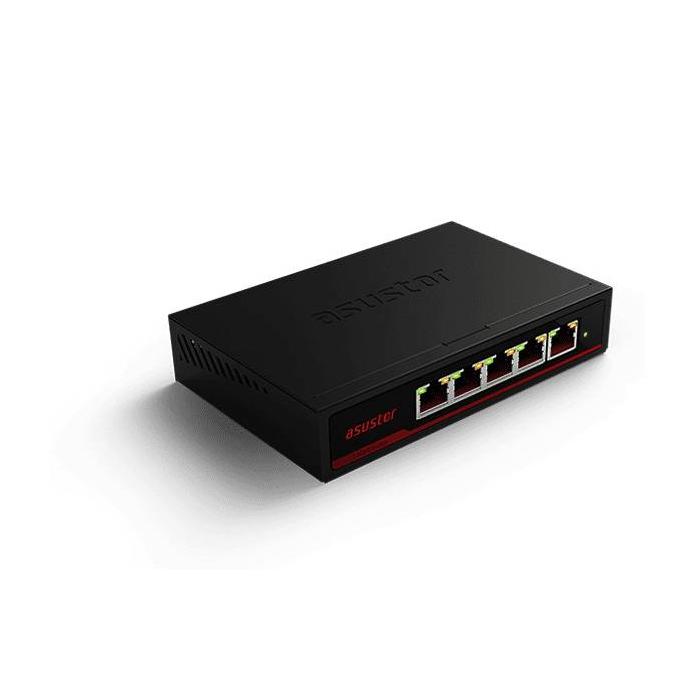

Unmanaged Asustor ASW205T switch with five RJ-45 2.5G Ethernet ports supporting speeds of 100, 1000, and 2500 Mbit/s, ideal for expanding your home or office network without configuration. Its 25 Gbit/s switching capacity and MAC address table of 16000 entries manage traffic efficiently, with support for jumbo frames up to 12000 bytes and flow control. The compact design does not support rack mounting, but includes a DC input connector and operates in full duplex under standards such as IEEE 802.3bz, forwarding packets at 18.6 Mpps thanks to its 4.1 MB buffer memory. Connect multiple devices and enjoy faster transfers than traditional Gigabit, maintaining silent and plug-and-play operation.
Specifications
Management features
- Switch type: Unmanaged
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 5
- Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500)
- Power connector: DC-in jack
Network
- Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
- 10G support: No
- Full duplex: Yes
- Flow control support: Yes
- Ethernet LAN data rates: 100,1000,2500 Mbit/s
Data transmission
- Switching capacity: 25 Gbit/s
- Throughput: 12.5 Gbit/s
- Forwarding rate: 18.6 Mpps
- MAC address table: 16000 entries
- Store-and-forward: Yes
- Jumbo frames support: Yes
- Jumbo frames: 12000
- Packet buffer memory: 4.1 MB
Design
- Rack mounting: No
- LED indicators: Activity, Power, Speed
Performance
- Fanless: Yes
Power
- Power source: AC/DC
- Power supply included: Yes
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Power consumption (typical): 10 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): No
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -10 - 85 °C
- Operating relative humidity (H-H): 0 - 85%
- Storage relative humidity (H-H): 0 - 85%
Weight & dimensions
- Width: 140 mm
- Depth: 90 mm
- Height: 28 mm
- Weight: 350 g
Packaging content
- Quick start guide: Yes
Packaging data
- Package type: Box
- Package width: 282 mm
- Package depth: 206 mm
- Package height: 49 mm
- Package weight: 715 g
Certificates
- Certification: FCC, CE, VCCI, BSMI, C-TICK, KCC
Logistics data
- Harmonized System (HS) code: 85176990
