Description

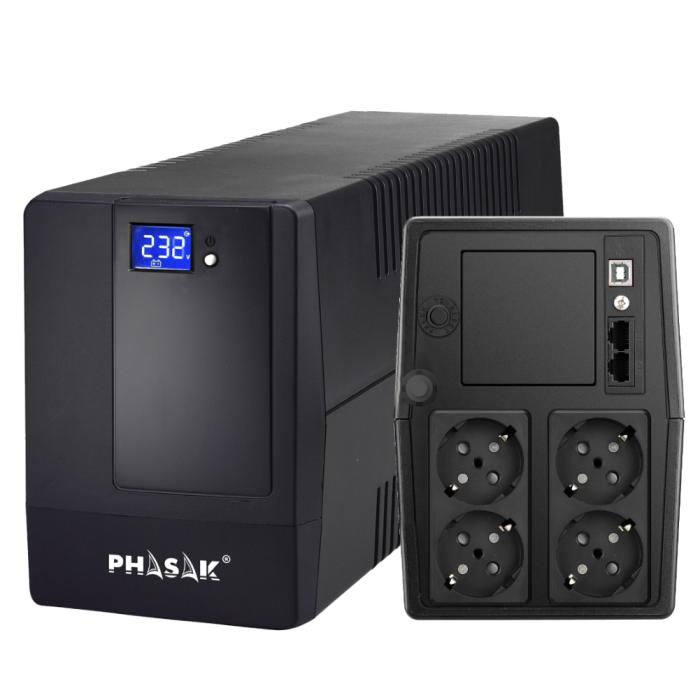

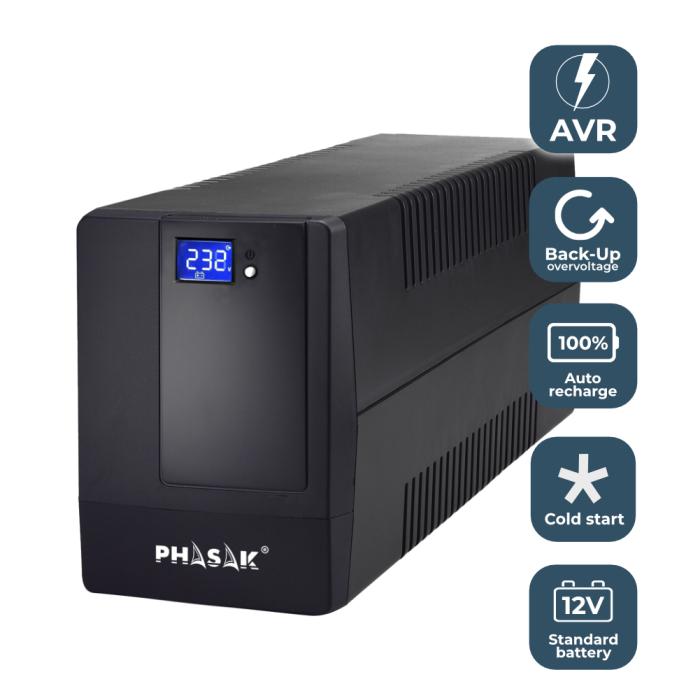

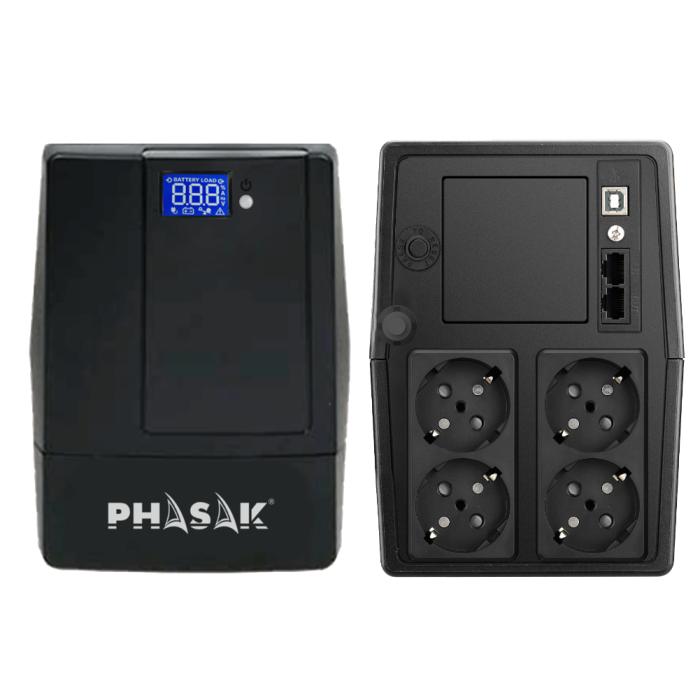

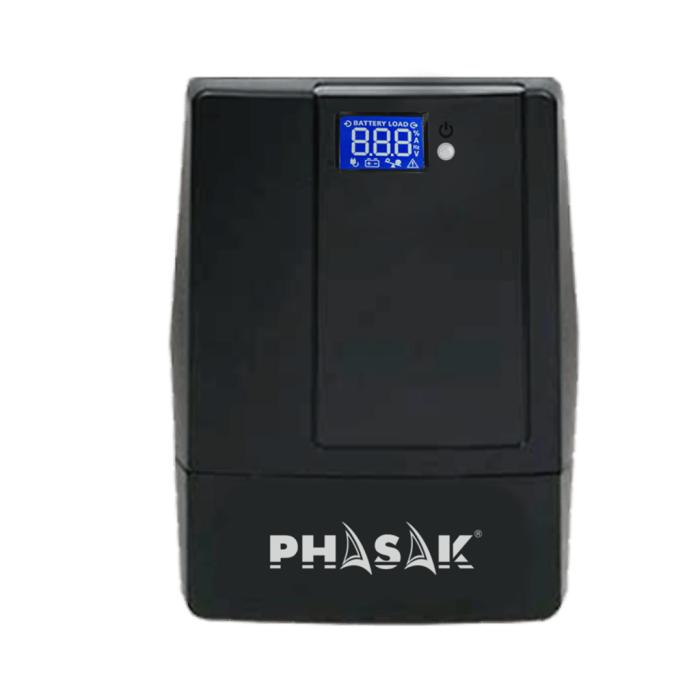

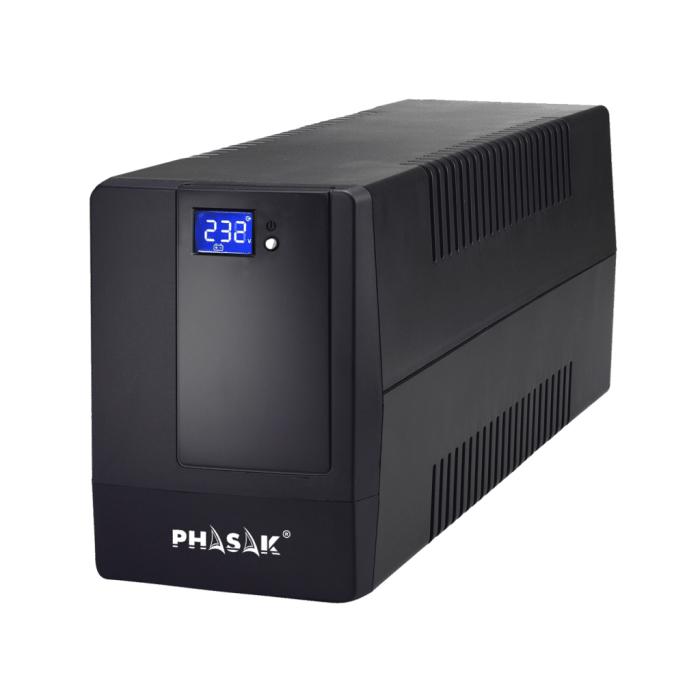

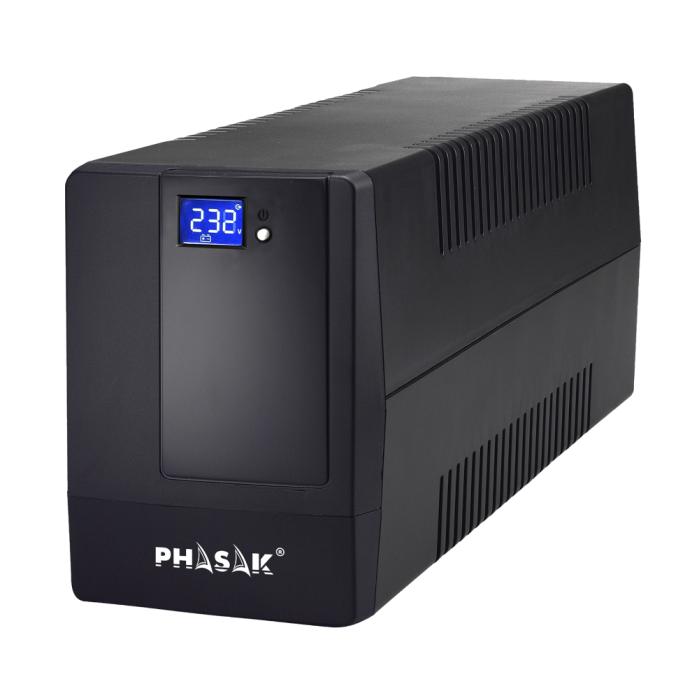

The Phasak Esential Interactive UPS 1000 VA, reference PH 9410, offers an output power of 600 W with an interactive line topology and automatic voltage regulation (AVR) to stabilise the current in connected equipment. This model operates with an input voltage between 220 V and 240 V, and delivers an output that also reaches up to 240 V, maintaining a power factor of 0.6 for both input and output. It includes auto-shutdown and auto-restart functions, as well as audible alarm modes that alert when switching to battery or in the event of faults or overloads, although it does not feature overload protection or ECO mode. Its noise level is 40 dB and it has a detachable power cable, without a carry handle or emergency shutdown.
Specifications
Features
- UPS topology: Line-Interactive
- Output power capacity: 1 kVA
- Output power: 600 W
- Waveform: Pseudo sine
- Input operation voltage (min): 220 V
- Input operation voltage (max): 240 V
- Input frequency: 50/60 Hz
- Output operation voltage (min): 220 V
- Output operation voltage (max): 240 V
- Output frequency: 50/60 Hz
- Automatic Voltage Regulation (AVR): Yes
- Response time: 2 ms
- Power factor: 0.6
- Input power factor: 1
- Output power factor: 0.6
- ECO mode: No
- Emergency Power Off (EPO): No
- Noise level: 40 dB
- Surge protection: No
- Power protection features: Battery discharge, Over power, Over voltage, Overcharge, Overheating, Overload, Reverse polarity, Under current, Under power
- Carrying handle(s): No
- Audible alarm(s): Yes
- Audible alarm modes: Alarm when on battery, Fault, Overload alarm
- Auto-restart: Yes
- Auto shut-off: Yes
- Power source type: AC/DC
- Detachable power cord: Yes

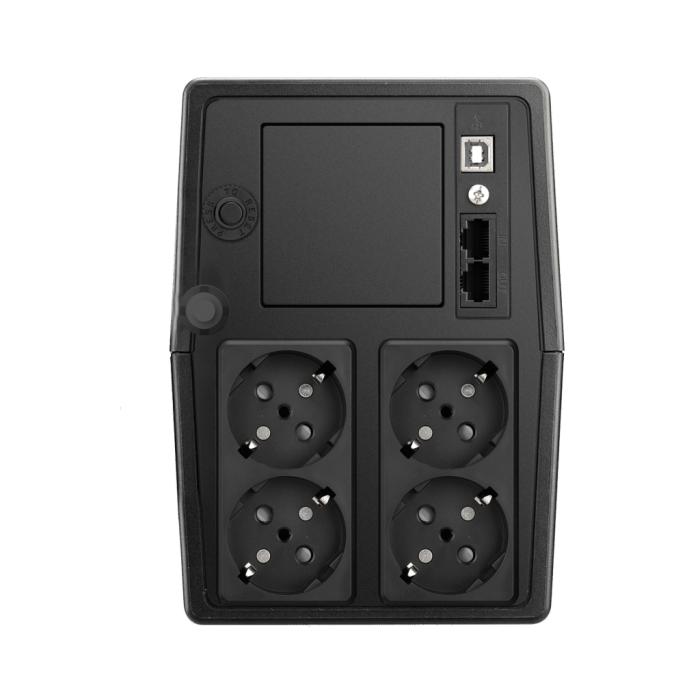

Ports & interfaces
- AC outlet types: Type F
- Power plug: Type F
- AC outlets quantity: 4 AC outlet(s)
- Number of type F outputs: 4
- USB port: Yes
- USB port type: USB Type-B
- Serial interface: Yes
- Serial interface type: RJ-45
- Serial ports quantity: 1
- Ethernet LAN (RJ-45) ports: 2
- Emergency Power Off (EPO) connector: No
- SmartSlot: No
Battery
- Battery technology: Lead-Calcium (Pb-Ca)
- Battery capacity: 7 Ah
- Battery voltage: 12 V
- Number of batteries supported: 2
- Typical backup time at full load: 12 min
- Typical backup time at half load: 5 min
- Battery recharge time: 6 h
- Cold start: Yes
Design
- Form factor: Compact
- Modular: No
- Cooling type: Passive
- Built-in fan: Yes
- Product colour: Black
- Control type: Buttons, Touch
- Display type: LCD
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 0 - 90%
- Storage relative humidity (H-H): 0 - 90%
- Operating altitude: 0 - 2400 m
- Non-operating altitude: 2400 - 3000 m
Certificates
- Compliance certificates: CE, RoHS
Packaging content
- Batteries included: Yes
- Rack mount kit: No
- Cables included: Power load cable
- Manual: Yes
- Quick installation guide: Yes
Sustainability
- Sustainability compliance: Yes
Weight & dimensions
- Width: 146 mm
- Depth: 350 mm
- Height: 205 mm
- Weight: 11 kg
- Battery width: 9.4 cm
- Battery depth: 6.5 cm
- Battery height: 15.1 cm
- Battery weight: 2.2 kg
Packaging data
- Package width: 390 mm
- Package depth: 192 mm
- Package height: 275 mm
- Package weight: 100 g
- Package type: Box
Logistics data
- Warranty period: 3 year(s)
