Description

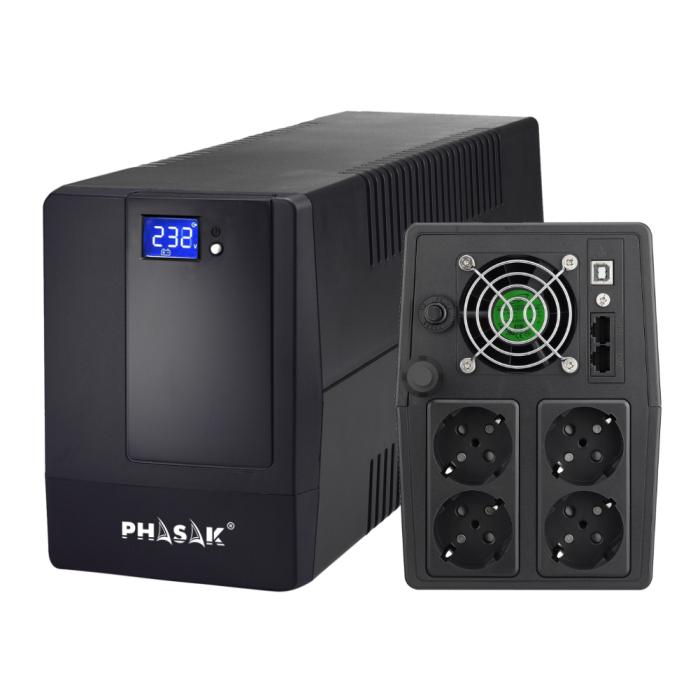

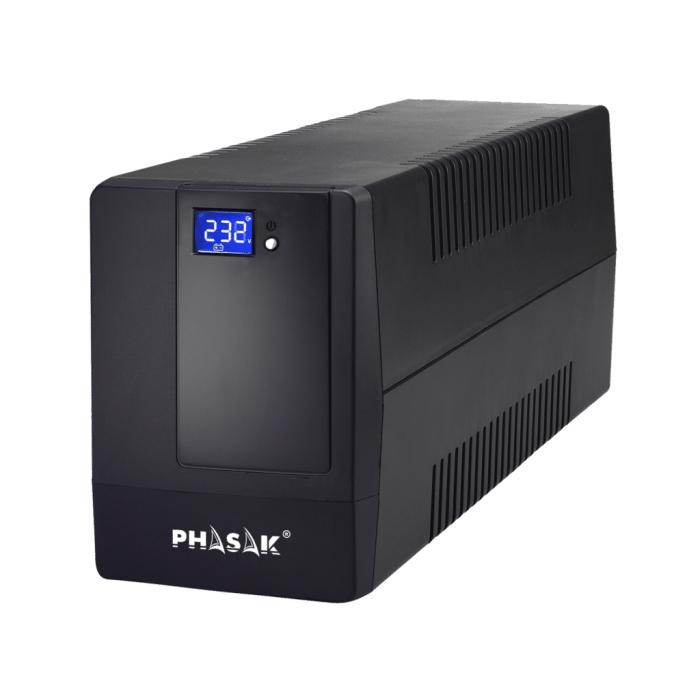

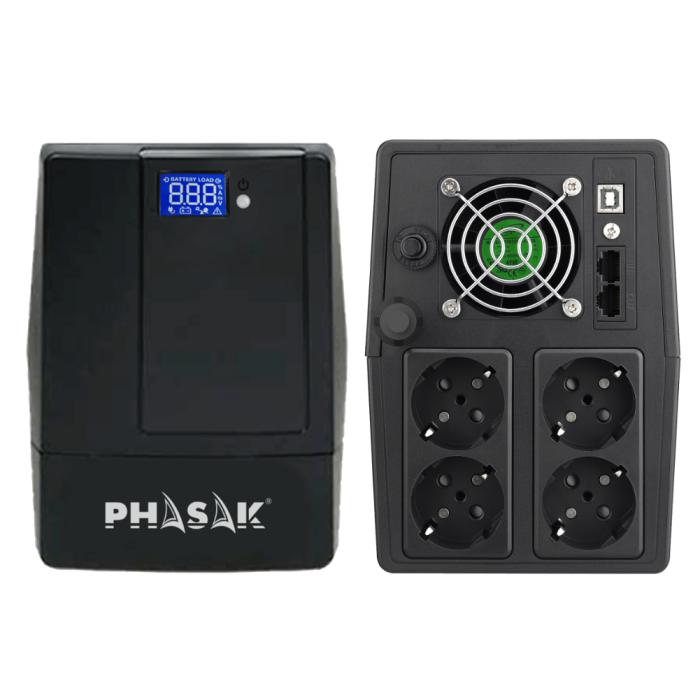

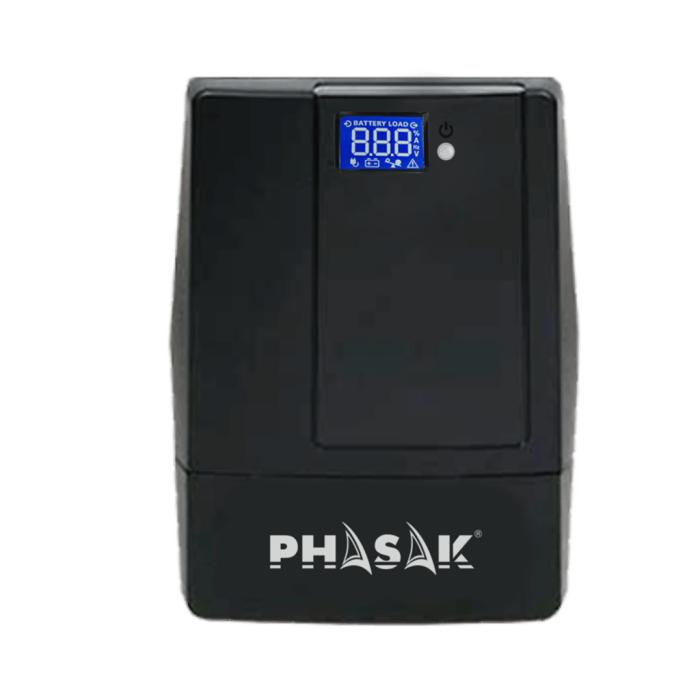

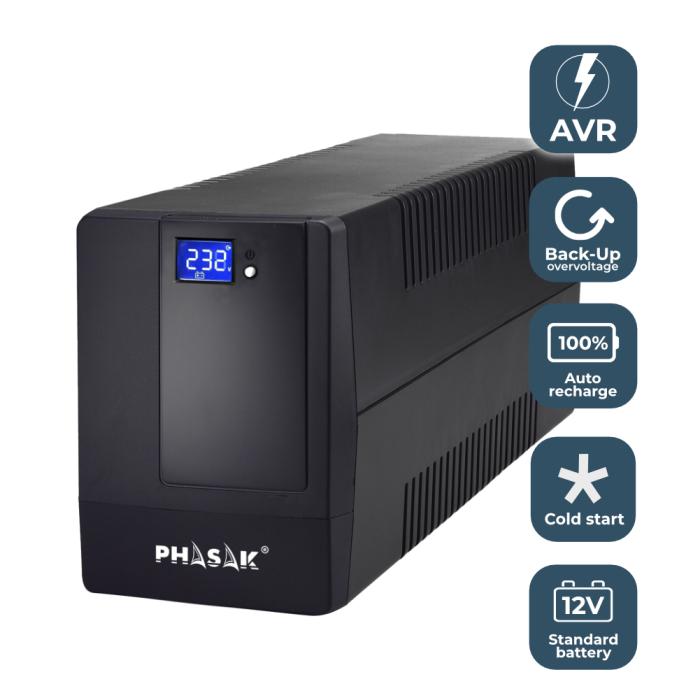

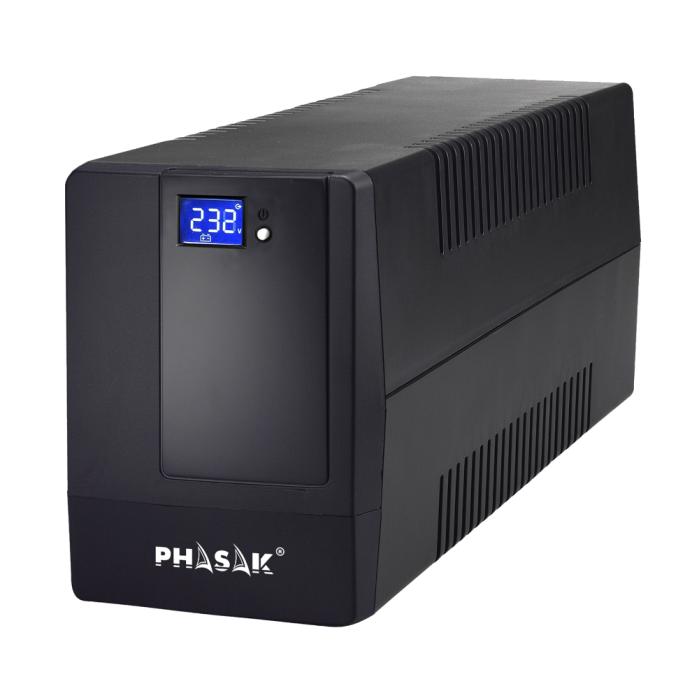

The Phasak UPS Essential Interactive 2000 VA, model PH 9420, delivers an output power of 1200 W with an interactive line topology and a response time of 2 ms. Its power factor of 0.6 and automatic voltage regulation (AVR) maintain a stable output of 220 V with 1% accuracy, protecting your equipment against fluctuations. With auto-shutdown, auto-restart and a detachable power cord, this system manages audible alarms for battery mode changes, faults and low battery; although it does not include emergency shutdown or overload protection. It ensures a reliable connection for your critical devices.
Specifications
Features
- UPS topology: Line-Interactive
- Output power capacity: 2 kVA
- Output power: 1200 W
- Waveform: Pseudo sine
- Input operation voltage (min): 220 V
- Input operation voltage (max): 240 V
- Input frequency: 50/60 Hz
- Output operation voltage (min): 220 V
- Output operation voltage (max): 240 V
- Output frequency: 50/60 Hz
- Output voltage regulation: 1%
- Automatic Voltage Regulation (AVR): Yes
- Response time: 2 ms
- Power factor: 0.6
- Input power factor: 1
- Output power factor: 0.6
- ECO mode: No
- Emergency Power Off (EPO): No
- Noise level: 40 dB
- Surge protection: No
- Power protection features: Battery discharge, Input fuse, Over power, Over voltage, Overcharge, Reverse polarity
- Carrying handle(s): No
- Audible alarm(s): Yes
- Audible alarm modes: Alarm when on battery, Fault, Low battery alarm, Overload alarm
- Auto-restart: Yes
- Auto shut-off: Yes
- Power source type: AC/DC
- Detachable power cord: Yes

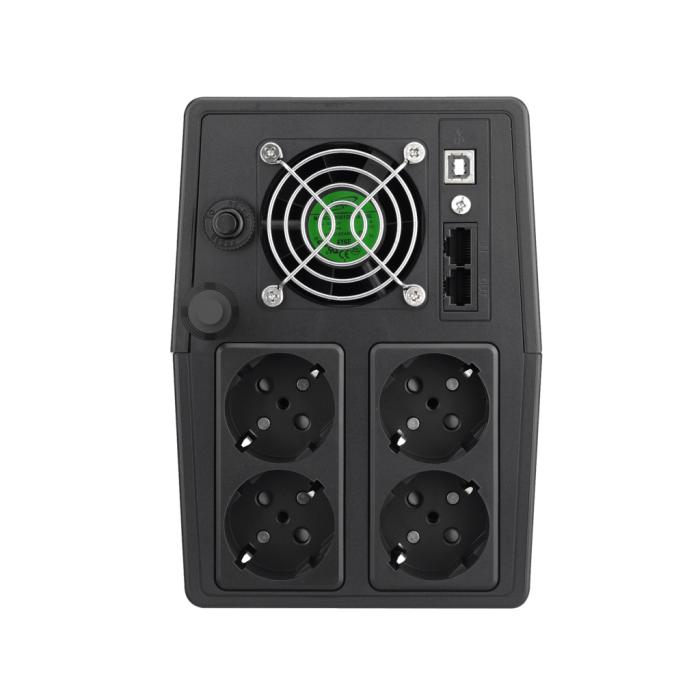

Ports & interfaces
- AC outlet types: Type F
- Power plug: Type F
- AC outlets quantity: 4 AC outlet(s)
- Number of type F outputs: 4
- USB port: Yes
- USB port type: USB Type-B
- Serial interface: Yes
- Serial interface type: RJ-45
- Serial ports quantity: 1
- Ethernet LAN (RJ-45) ports: 2
- Emergency Power Off (EPO) connector: No
- SmartSlot: No
Battery
- Battery technology: Lead-Calcium (Pb-Ca)
- Battery capacity: 9 Ah
- Battery voltage: 12 V
- Number of batteries supported: 2
- Typical backup time at full load: 12 min
- Typical backup time at half load: 5 min
- Battery recharge time: 5 h
- Cold start: Yes
Design
- Form factor: Compact
- Cable length: 1 m
- Modular: No
- Cooling type: Passive
- Built-in fan: Yes
- Product colour: Black
- Control type: Buttons, Touch
- Display type: LCD
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 0 - 90%
- Storage relative humidity (H-H): 0 - 90%
- Operating altitude: 0 - 2400 m
- Non-operating altitude: 2400 - 3000 m
Certificates
- Compliance certificates: CE, RoHS
Packaging content
- Batteries included: Yes
- Rack mount kit: No
- Cables included: Power load cable
- Manual: Yes
- Quick installation guide: Yes
Sustainability
- Sustainability compliance: Yes
Weight & dimensions
- Width: 146 mm
- Depth: 350 mm
- Height: 205 mm
- Weight: 11 kg
- Battery width: 9.4 cm
- Battery depth: 6.5 cm
- Battery height: 15.1 cm
- Battery weight: 2.2 kg
Packaging data
- Software CD: No
- Manual languages: English, Spanish, Portuguese
- Package width: 390 mm
- Package depth: 192 mm
- Package height: 275 mm
- Package weight: 100 g
- Package type: Box
Logistics data
- Serialized: Yes
- Warranty period: 3 year(s)
