Description

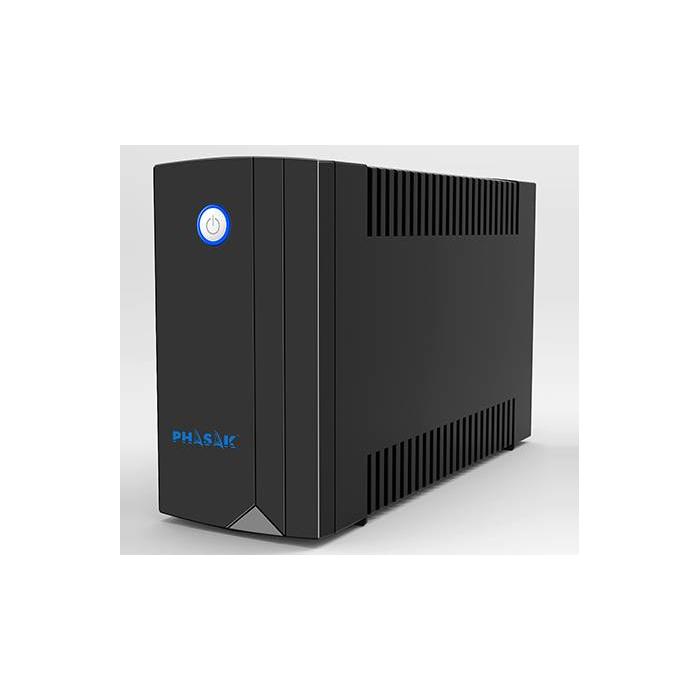

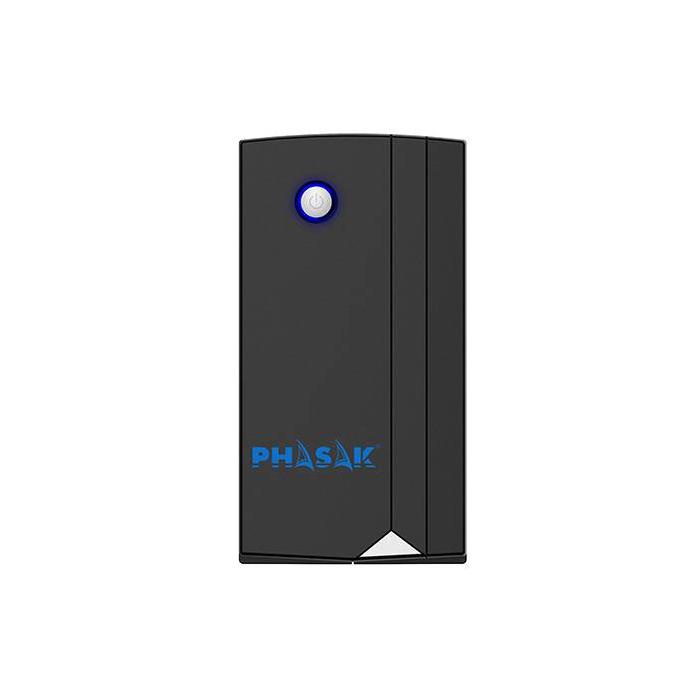

The Phasak Ottima Interactive UPS, 1060 VA, reference PH 7210, provides stable protection for your equipment thanks to its interactive line topology and automatic voltage regulation (AVR), which maintains the output with an accuracy of 1% and a total harmonic distortion of 1%. With an input range of 162 to 290 V and an adjustable frequency of 50/60 Hz, this device ensures a pseudo sine wave for sensitive loads, while its output power factor of 0.6 and capacity of 1.06 kVA define its performance. It includes an audible alarm, automatic restart after a power cut and a detachable power cable for convenient installation, although it lacks ECO mode.
Specifications
Features
- UPS topology: Line-Interactive
- Output power capacity: 1.06 kVA
- Output power: 600 W
- Waveform: Pseudo sine
- Input operation voltage (min): 162 V
- Input operation voltage (max): 290 V
- Input frequency: 50/60 Hz
- Output operation voltage (min): 220 V
- Output operation voltage (max): 240 V
- Output frequency: 50/60 Hz
- Output frequency regulation: 50/60 Hz
- Output voltage regulation: 1%
- Automatic Voltage Regulation (AVR): Yes
- Response time: 4 ms
- Number of input phases: 1
- Number of output phases: 1
- Power factor: 0.6
- Input power factor: 1
- Output power factor: 0.6
- ECO mode: No
- Emergency Power Off (EPO): No
- Output voltage Total Harmonic Distortion (THD): 1%
- Input current Total Harmonic Distortion (THD): 1%
- Noise level: 40 dB
- Surge protection: No
- Power protection features: Over power, Over voltage, Overheating, Overload
- Audible alarm(s): Yes
- Audible alarm modes: Battery replacement, Fault, Low battery alarm, Overload alarm
- Auto-restart: Yes
- Auto shut-off: Yes
- Detachable power cord: Yes
- Auto power off: No
Ports & interfaces
- AC outlet types: Type F
- Power plug: Type F
- AC outlets quantity: 2 AC outlet(s)
- Number of type F outputs: 2
- Number of outlets (Battery backup & protection): 2
- Number of outlets (Protection): 1
- USB port: No
- Serial interface: No
- Emergency Power Off (EPO) connector: No
- Remote Power Off (RPO)/Remote On-Off (ROO) connector: No
- SmartSlot: No
- Programmable sockets: No
Battery
- Battery technology: Lead-Calcium (Pb-Ca)
- Battery capacity: 9 Ah
- Battery voltage: 12 V
- Number of batteries supported: 1
- Typical backup time at full load: 20 min
- Typical backup time at half load: 10 min
- Battery life (max): 3 year(s)
- Battery recharge time: 8 h
- Battery recharge time (90%): 8 h
- Automatic battery test: No
- Cold start: Yes
Design
- Form factor: Compact
- Rack capacity: 0U
- Cable length: 1 m
- Modular: No
- Cooling type: Passive
- Built-in fan: Yes
- Fan speed control: No
- Product colour: Black
- Control type: Buttons
- Display type: LED
- LED indicators: Alarm, Battery level, Check, Error
- International Protection (IP) code: IP20, IP54
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 0 - 90%
- Storage relative humidity (H-H): 0 - 90%
- Operating altitude: 0 - 2400 m
- Non-operating altitude: 2400 - 3000 m
Certificates
- Waste Electrical and Electronic Equipment (WEEE) compliance: Yes
- UN number: EN-IEC 62040-1
- Compliance certificates: CE, RoHS
Packaging content
- Batteries included: Yes
- Rack mount kit: No
- Cables included: Input power cable
- Manual: Yes
- Quick installation guide: Yes
Sustainability
- Sustainability compliance: Yes
Weight & dimensions
- Width: 96 mm
- Depth: 286 mm
- Height: 138 mm
- Weight: 3.9 kg
- Battery width: 9.4 cm
- Battery depth: 6.5 cm
- Battery height: 15.1 cm
- Battery weight: 2.2 kg
- Extended battery module width: 0 mm
- Extended battery module depth: 0 mm
- Extended battery module height: 0 mm
Packaging data
- Bracket: No
- Rubber feet: No
- Management card included: Yes
- Resource CD: No
- Software CD: No
- Manual languages: English, Spanish, Portuguese
- Package width: 323 mm
- Package depth: 300 mm
- Package height: 146 mm
- Package weight: 4 kg
- Package type: Box
Logistics data
- Warranty period: 3 year(s)
