NZXT C1000 Gold ATX 3.1 power supply unit 1000 W 24-pin ATX White

Return

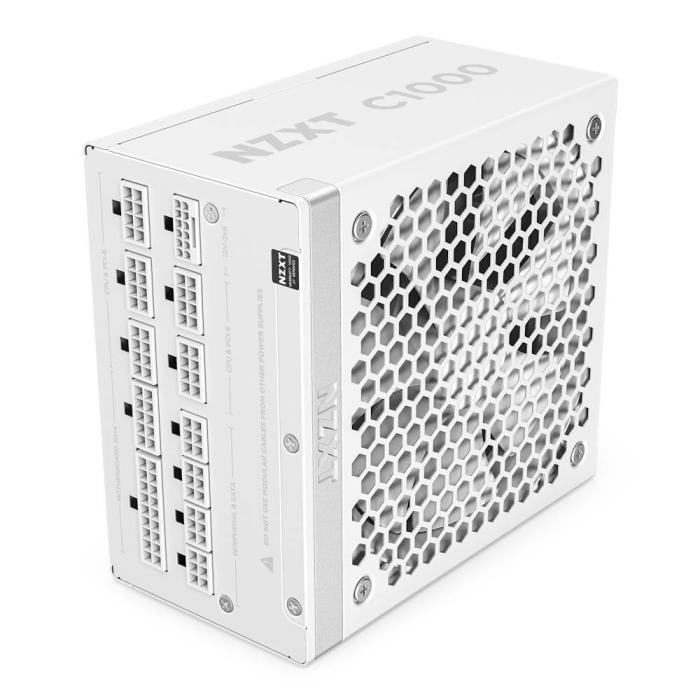

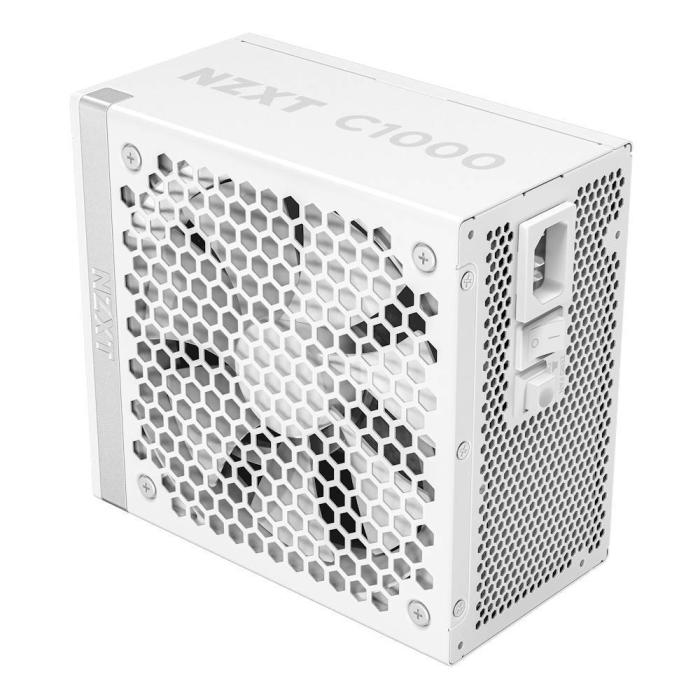

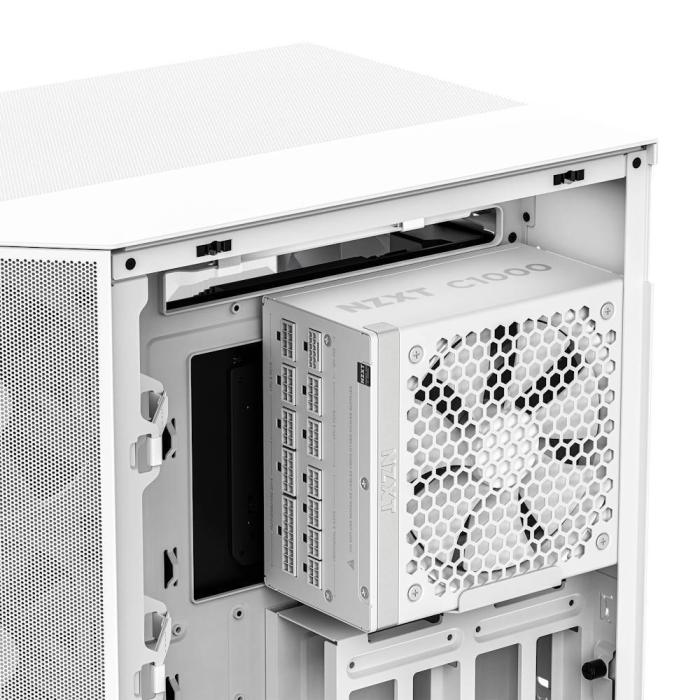

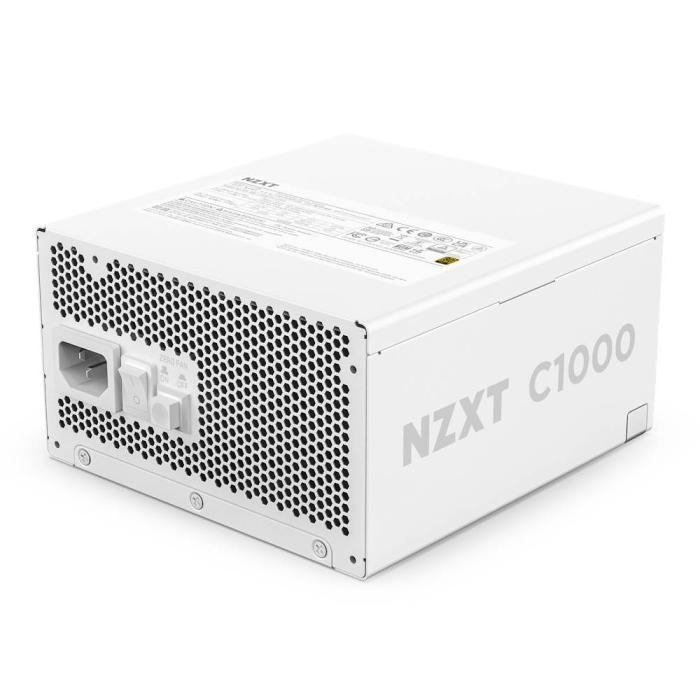

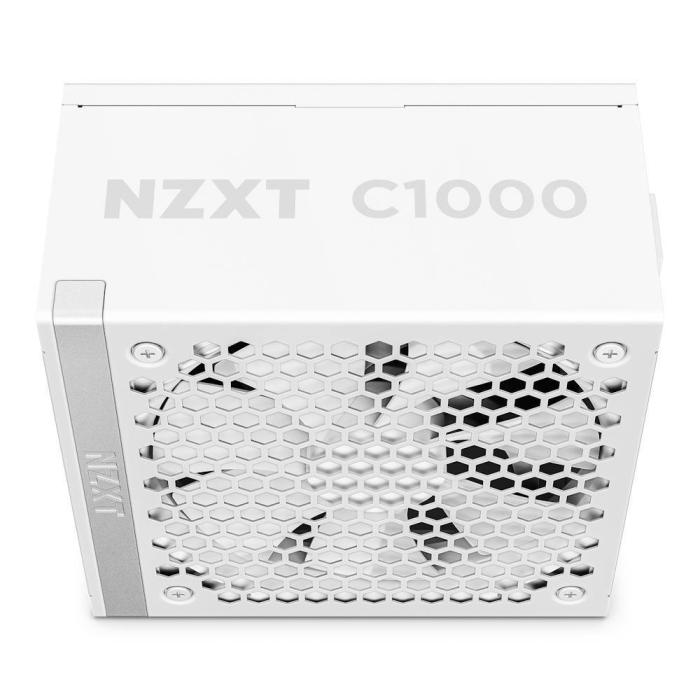

NZXT C1000 Gold ATX 3.1 power supply unit 1000 W 24-pin ATX White

Name: NZXT C1000 Gold ATX 3.1 power supply unit 1000 W 24-pin ATX White
Brand: NZXT
Availability: OutOfStock

Not avaliable

More info

Amount

Brand: NZXT

SKU: 113890 PRC: 543926 EAN: 5056547206349 PN: pa-0g2bw-eu

Description

Specifications

Power

Total power: 1000 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Input current: 13 - 6.5 A
Combined power (+3.3V): 120 W
Combined power (+12V): 1000 W
Combined power (+5V): 120 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 22 A
Max output current (+12V): 83.3 A
Max output current (+5V): 22 A
Max output current (+5Vsb): 3 A
Efficiency: 91.9%

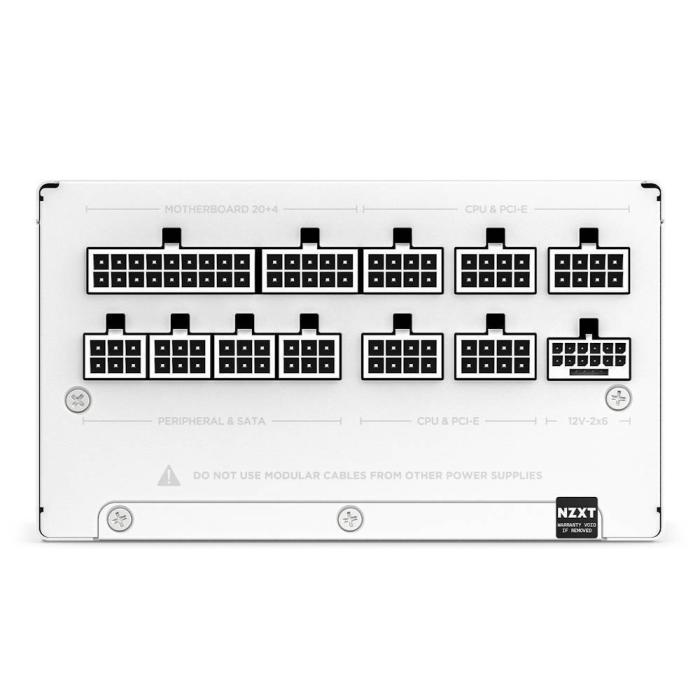

Ports & interfaces

Motherboard power connector: 24-pin ATX
Number of SATA power connectors: 12
Peripheral (Molex) power connectors (4-pin): 4
CPU power connector (4+4 pin): Yes
ATX Power connector (24-pin): Yes
Cabling type: Fully-Modular

Performance

80 PLUS certification: 80 PLUS Gold
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.1
EPS version: 2.92
Noise level: 44.5 dB
Bearing technology: FDB
Mean time between failures (MTBF): 100000 h

Design

Product colour: White
Cooling type: Active
Fan diameter: 13.5 cm
Number of fans: 1 fan(s)
Fan speed: 0 - 2300 RPM
On/off switch: Yes

Operational conditions

Operating temperature (T-T): 0 - 50 °C

Certificates

Compliance certificates: BSMI, CCC, CE, EAC, UKCA
Certification: CB/ (IEC 950/62368-1) / CCC / CEC /BSMI / RCM / EAC / CE / LVD / UKCA

Weight & dimensions

Width: 150 mm
Depth: 160 mm
Height: 86 mm

Logistics data

Warranty period: 10 year(s)
