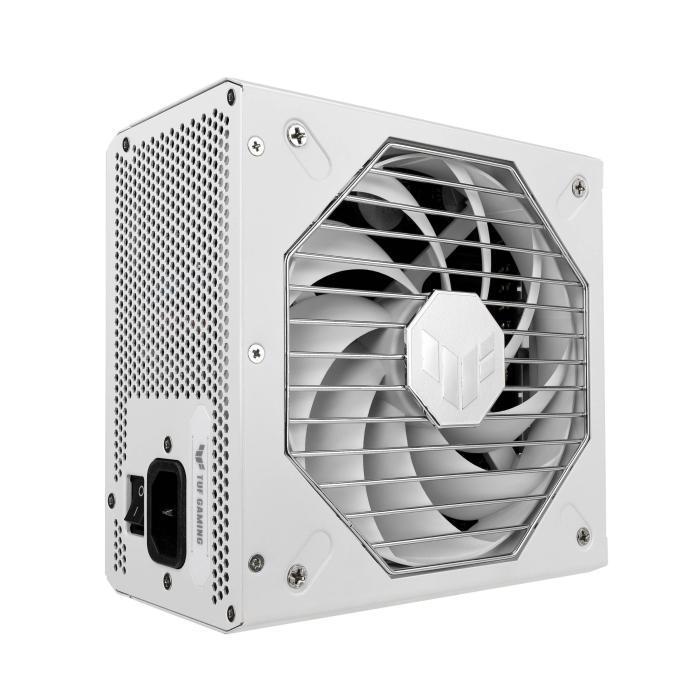

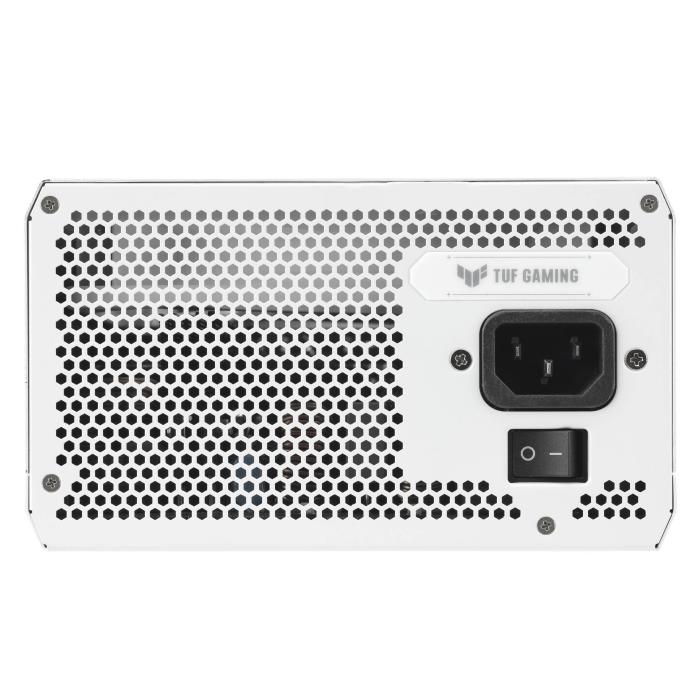

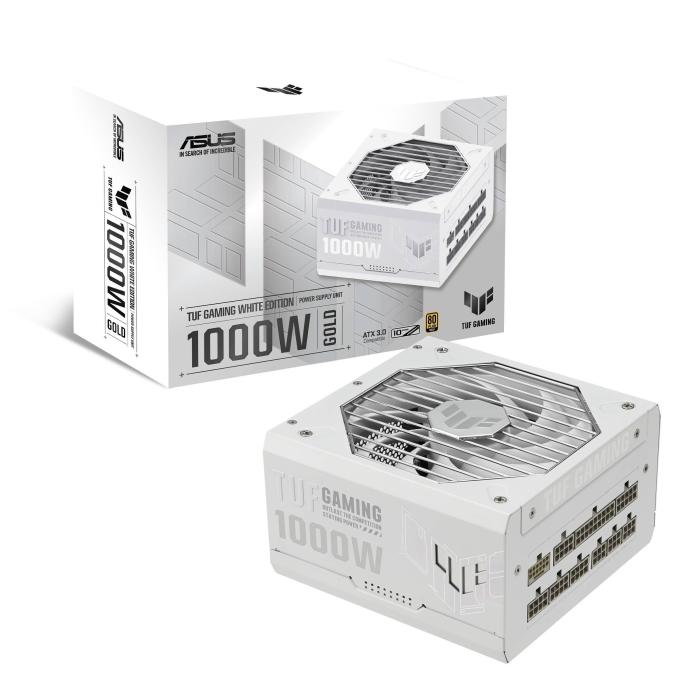

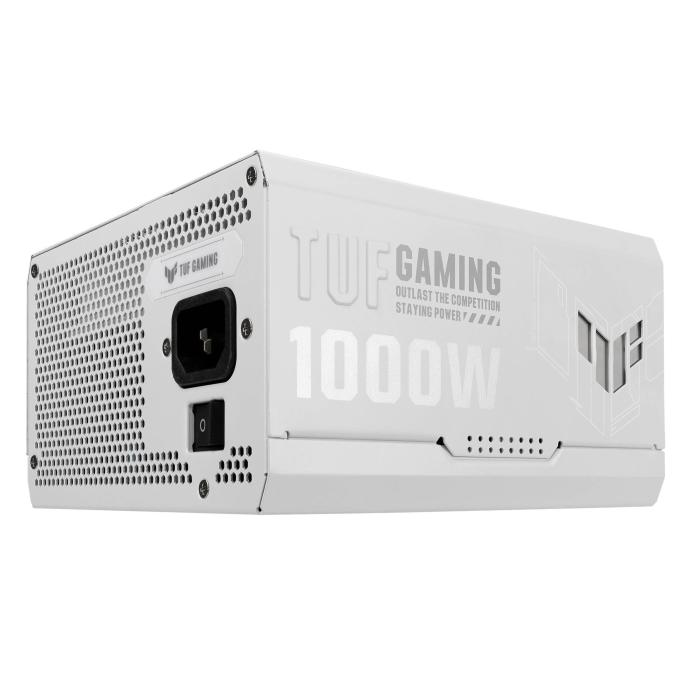

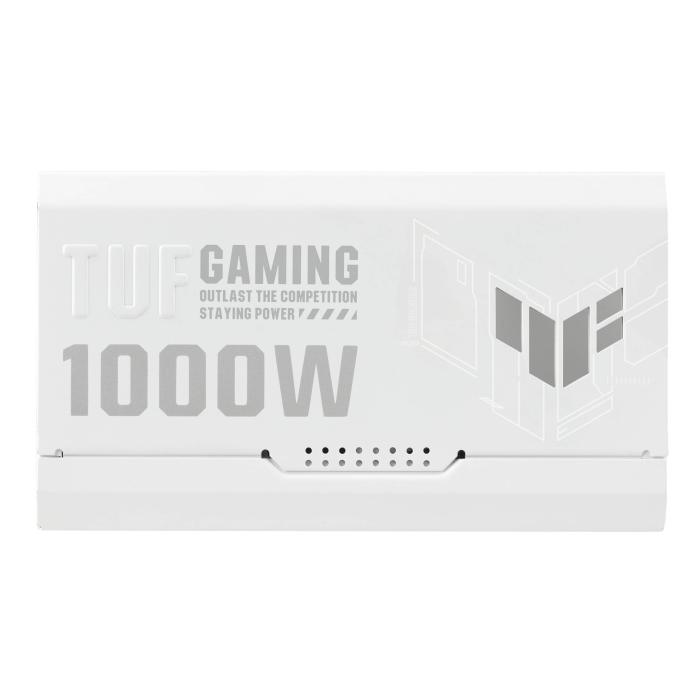

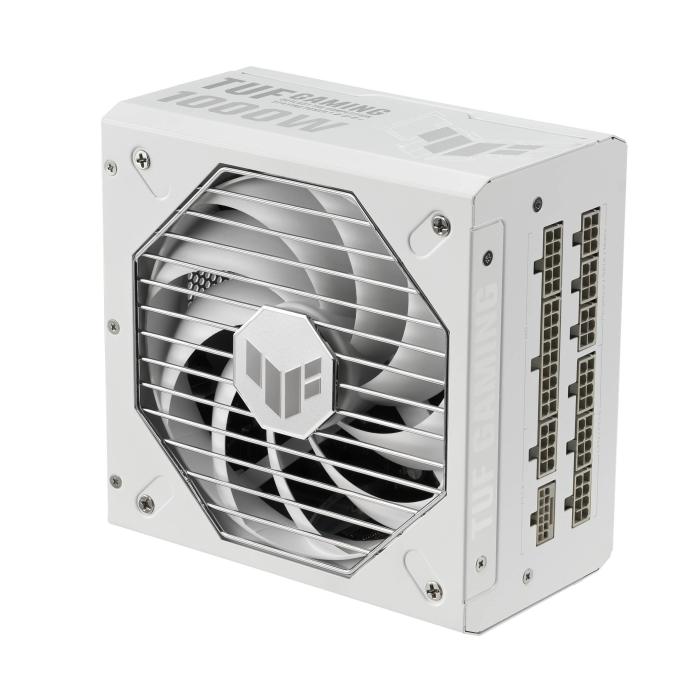

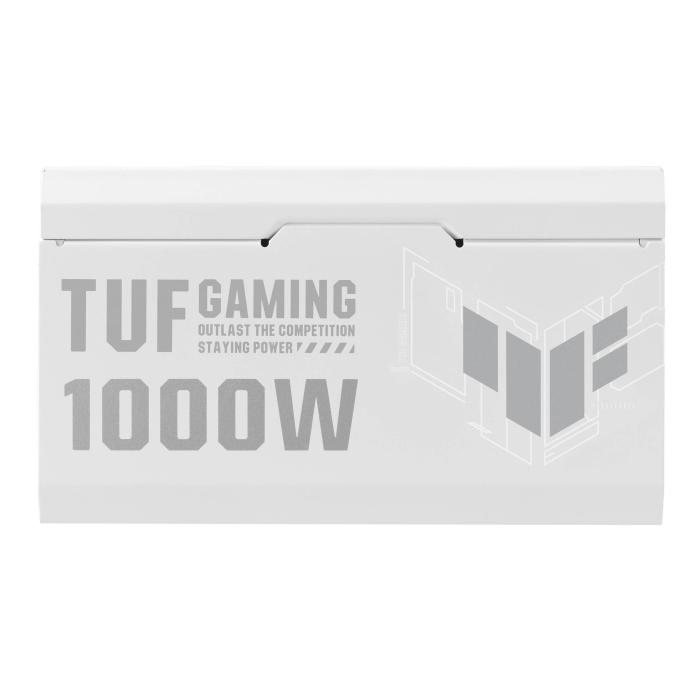

ASUS TUF Gaming 1000W Gold White Edition power supply unit 20+4 pin ATX ATX

Not avaliable

ASUS TUF Gaming 1000W Gold White Edition power supply unit 20+4 pin ATX ATX. More info

Amount

Brand: ASUS

SKU: 113999 PRC: 530435 EAN: 4711387275993 PN: 90YE00S5-B0NA00

Description

TUF Gaming 1000W Gold Gaming Power Supply (1000 Watt, fully modular power supply, ATX 3.0 compatible, Axial-tech fan, PCB coating, double ball bearing, white)

Specifications

Power

Total power: 1000 W
AC input voltage: 100 - 240 V
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 130 W
Combined power (+12V): 1000 W
Combined power (+5V): 130 W
Combined power (-12V): 9.6 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 25 A
Max output current (+12V): 83.3 A
Max output current (+5V): 25 A
Max output current (-12V): 0.8 A
Max output current (+5Vsb): 3 A
Efficiency: 92%
Power protection features: Over power, Over voltage, Overcharge, Overheating, Short circuit, Under power, Under voltage

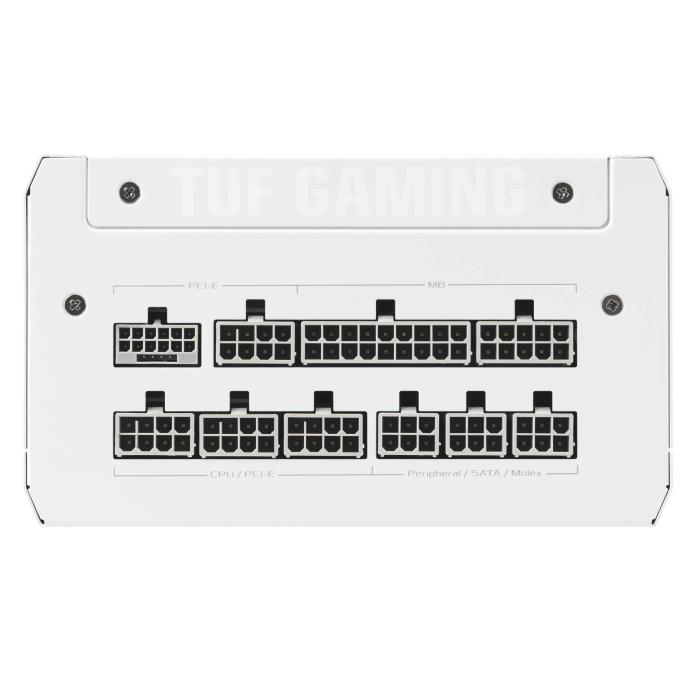

Ports & interfaces

Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 61 cm
Number of SATA power connectors: 5
SATA power cable length: 120, 400 mm
Peripheral (Molex) power connectors (4-pin): 4
Peripheral (Molex) power cable length: 150, 400 mm
PCI Express power connectors (8-pin): 4
PCI Express power connectors (16-pin): 1
PCI Express power cable length: 67.5 cm
CPU power connector (4+4 pin): Yes
CPU power cable length: 65 cm
ATX power connector (20+4 pin): Yes
Cabling type: Fully-Modular

Performance

80 PLUS certification: 80 PLUS Gold
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.0
Bearing technology: Ball bearing

Design

Product colour: White
Cooling type: Active
Fan diameter: 13.5 cm
Number of fans: 1 fan(s)
On/off switch: Yes

Packaging content

Cables included: AC, CPU, PCIe, Peripheral (Molex), SATA
Cable tie(s) included: Yes

Certificates

Compliance certificates: RoHS

Weight & dimensions

Width: 150 mm
Depth: 150 mm
Height: 86 mm
Weight: 2.48 kg

Packaging data

Package width: 310 mm
Package depth: 200 mm
Package height: 108 mm
Package weight: 3.17 kg
Package type: Box

Technical details

Sustainability compliance: Yes
