Description

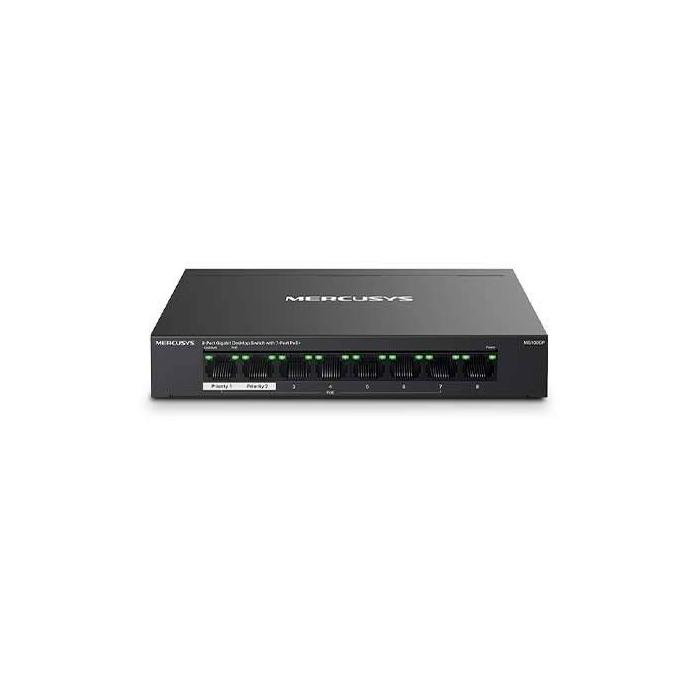

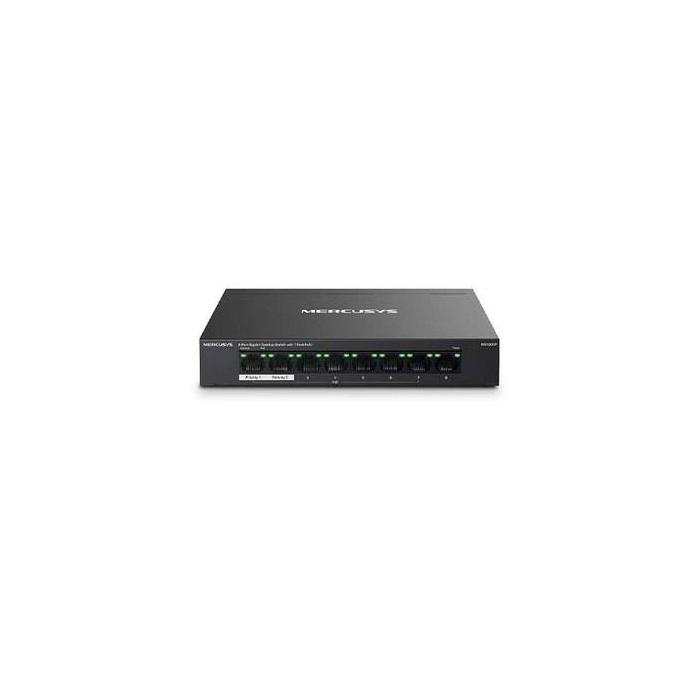

The Mercusys MS108GP is a managed switch with 8 Gigabit Ethernet ports that incorporates PoE support and a black metal housing, designed for network environments requiring web management and traffic classification. This device enables policy-based routing, flow control, and both half-duplex and full-duplex transmission, as well as auto MDI/MDI-X, with a MAC address table of 8000 entries. Its wall-mount design facilitates installation in confined spaces, while the IEEE 802.3af, IEEE 802.3at, and IEEE 802.3x standards ensure compatibility with PoE devices and store-and-forward operation.
Specifications
Management features
- Switch type: Managed
- Web-based management: Yes
- Traffic classification: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 8
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Network
- Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
- 10G support: No
- Full duplex: Yes
- Policy-based routing: Yes
- Half duplex: Yes
- Flow control support: Yes
- Auto MDI/MDI-X: Yes
Data transmission
- MAC address table: 8000 entries
- Store-and-forward: Yes
Design
- Rack mounting: No
- Stackable: No
- Product colour: Black
- Housing material: Metal
- Wall mountable: Yes
Power
- Power source: AC
- Power supply included: Yes
- AC input voltage: 220 V
- AC input frequency: 50 Hz
- Input current: 1.31 A
- Input voltage: 53.5 V
- Power consumption (typical): 5.07 W
- Power consumption (max): 77.33 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
- Power over Ethernet (PoE) ports quantity: 7
- Power over Ethernet plus (PoE+) ports quantity: 1
- Power over Ethernet (PoE) power per port: 65 W
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 5 - 95%
- Heat dissipation: 262.922 BTU/h
Weight & dimensions
- Width: 171 mm
- Depth: 98 mm
- Height: 27 mm
Packaging content
- Cables included: AC
- Quick start guide: Yes
