  • StarTech.com 4K HDMI over Fiber Extender Kit, 4K 60Hz up to 3300ft/1km (Single Mode) or 1000ft/300m (Multimode) LC Fiber Optic, HDR, HDCP, 3.5mm Audio/RS232/IR Extender, Transmitter and Receiver Kit
Return
Product 1 image
Product 2 image
Product 3 image
Product 4 image
Product 5 image
Product 6 image
Product 7 image

StarTech.com 4K HDMI over Fiber Extender Kit, 4K 60Hz up to 3300ft/1km (Single Mode) or 1000ft/300m (Multimode) LC Fiber Optic, HDR, HDCP, 3.5mm Audio/RS232/IR Extender, Transmitter and Receiver Kit

$556.07
$556.07 without VAT

StarTech.com 4K HDMI over Fiber Extender Kit, 4K 60Hz up to 3300ft/1km (Single Mode) or 1000ft/300m (Multimode) LC Fiber Optic, HDR, HDCP, 3.5mm Audio/RS232/IR Extender, Transmitter and Receiver Kit.   More info

Brand: STARTECH.COM
SKU: 99827 PRC: 434998 EAN: 65030897303 PN: ST121HD20FXA2

Description

StarTech.com 4K HDMI over Fiber Extender Kit, 4K 60Hz up to 3300ft (Single Mode) or 1000ft (Multimode) LC Fiber Optic, HDR, HDCP, Audio/RS232/IR Extender, Transmitter and Receiver Kit (ST121HD20FXA2)

Specifications

Features

  • Type: AV transmitter & receiver
  • Maximum resolution: 4096 x 2160 pixels
  • Maximum transfer distance: 1000 m
  • Chipset: SiFotonics SD1503/SD1513
  • High Dynamic Range (HDR) supported: Yes
  • High Dynamic Range (HDR) technology: High Dynamic Range 10 (HDR10)
  • Maximum refresh rate: 60 Hz
  • Fiber mode structure: Multi-mode, Single-mode
  • Extended display identification data (EDID): Yes
  • Audio output channels: 7.1 channels
  • Electrostatic Discharge (ESD) protection: 8 kV
  • Infrared (IR) frequency range: 20 - 60 kHz
  • LED indicators: Activity, Power
  • Bandwidth: 18 Gbit/s
  • HDCP: Yes
  • Baud rate: 115.2 Kbit/s
  • HDCP version: 2.2
  • Product colour: Black

Ports & interfaces

  • Connectivity technology: Wired
  • HDMI in: 1
  • Number of HDMI outputs: 2
  • HDMI version: 2.1
  • Fiber optic connector: LC
  • Fiber ports quantity: 2
  • USB ports quantity: 2
  • USB connector type: Micro-USB B
  • Serial ports quantity: 2
  • Serial interface type: RS-232
  • Remote (IR) input: 2
  • Remote (IR) output: 2
  • Line outputs (RCA): 1
  • Line-in: Yes
  • DC-in jack: Yes

Power

  • AC input voltage: 100 - 240 V
  • Operating voltage: 5 V
  • Input current: 0.35 A
  • Output current: 1 A
  • Power plug type: Type M

Operational conditions

  • Storage temperature (T-T): -20 - 60 °C
  • Operating relative humidity (H-H): 20 - 90%
  • Operating temperature (T-T): 0 - 40 °C

Weight & dimensions

  • Width: 68 mm
  • Depth: 134 mm
  • Height: 18 mm
  • Weight: 280 g

Packaging data

  • Package width: 200 mm
  • Package depth: 300 mm
  • Package height: 60 mm
  • Package weight: 1 kg

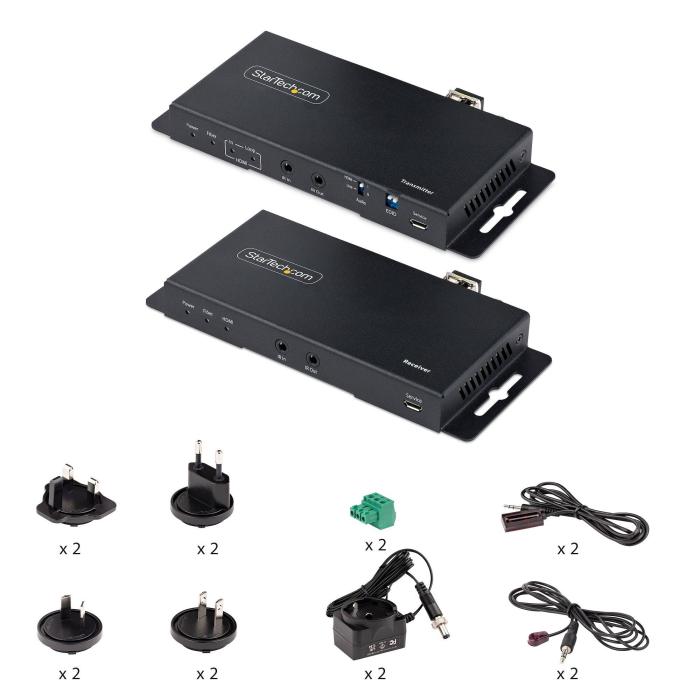

Packaging content

  • AC adapter included: Yes
  • Quick start guide: Yes
  • IR blaster included: Yes
  • IR receiver included: Yes

Technical details

  • Sustainability compliance: Yes
  • Compliance certificates: CE, RoHS

Logistics data

  • Master (outer) case width: 325 mm
  • Master (outer) case length: 530 mm
  • Master (outer) case height: 402 mm
  • Products per master (outer) case: 20 pc(s)
