Description

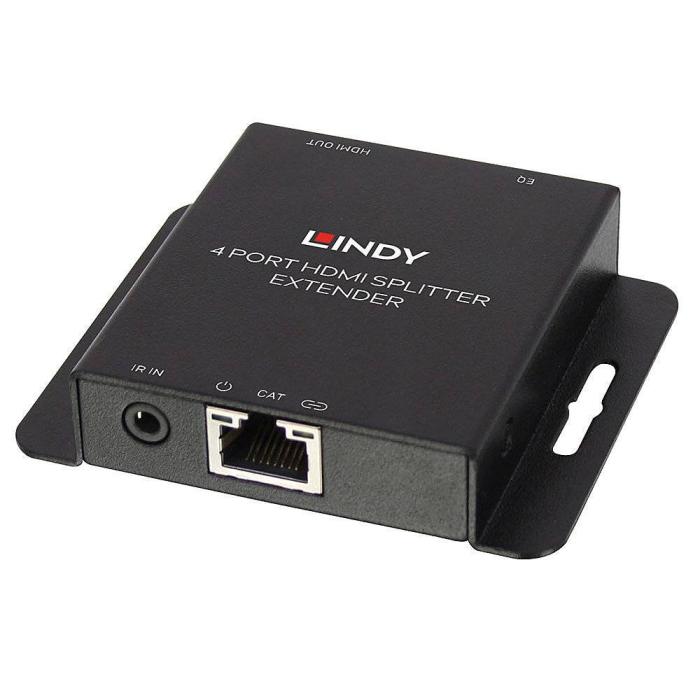

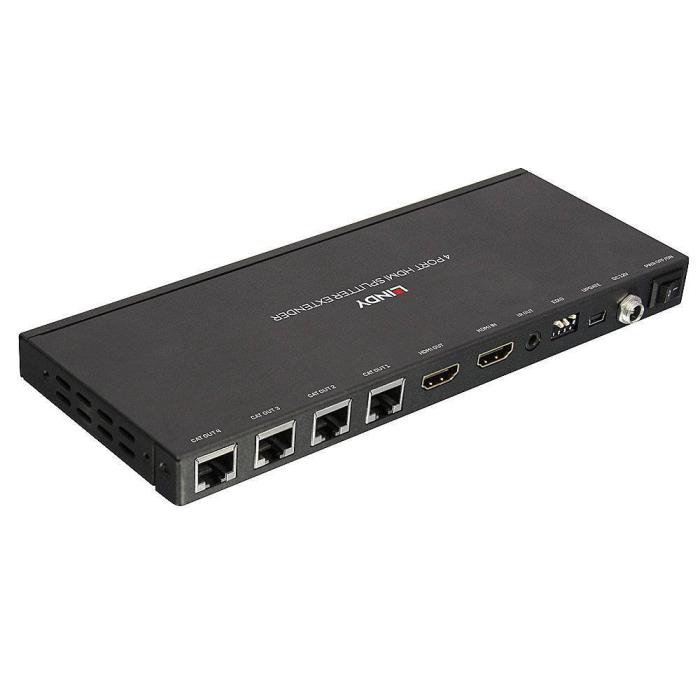

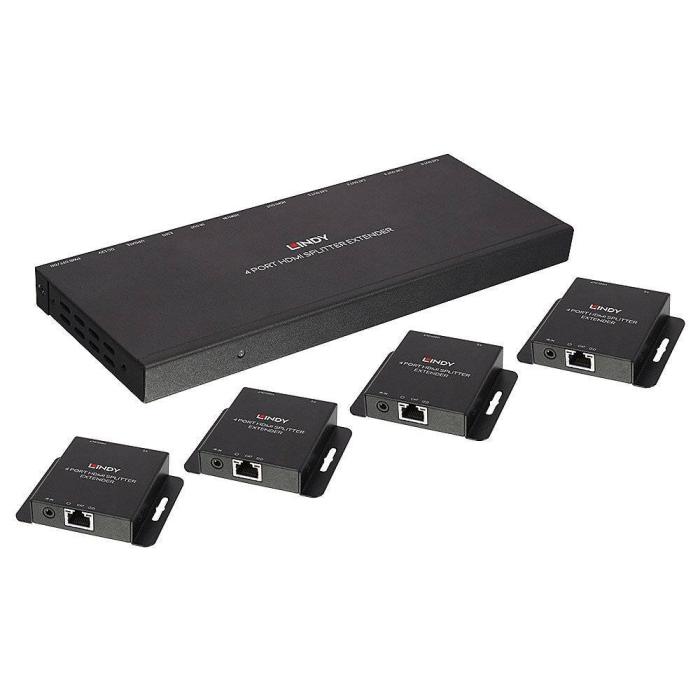

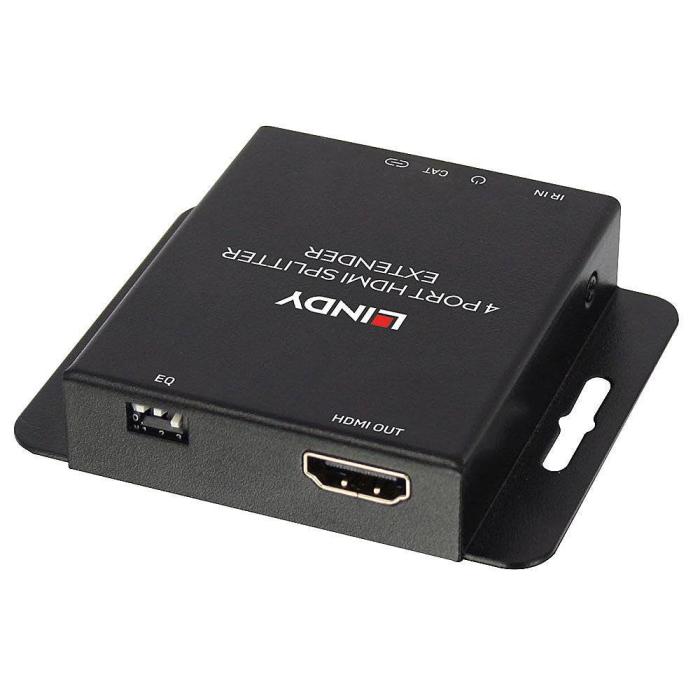

The Lindy 38155 KVM extender, in black, combines a transmitter and a receiver to extend control of your equipment over a cable connection. It reaches a maximum digital resolution of 1920 x 1080 pixels on up to four screens, thanks to the transmitter integrating four RJ-45 ports and a local HDMI video port, while the receiver has an RJ-45 port and its own local HDMI port. Transmission is carried out over Cat6 cable and covers a maximum transfer distance of 50 m, enough to separate the workstation from the equipment without losing signal. The LED indicators show you the link status at all times. Its power adapter delivers an output of 12 V and 2.5 A, and the transmitter measures 25 cm in depth. It has CE, FCC, RoHS and REACH certification.
Specifications
Features
- Type: Transmitter & receiver
- Connectivity technology: Wired
- Maximum transfer distance: 50 m
- Cable types supported: Cat6
- Maximum digital resolution: 1920 x 1080 pixels
- Product colour: Black
- LED indicators: Yes
- Certification: CE, FCC, RoHS, REACH
Transmitter
- Transmitter video port type: HDMI
- Transmitter local video port: Yes
- Transmitter local video port type: HDMI
- Number of displays supported: 4
- RJ-45 ports quantity (transmitter): 4
Receiver
- Receiver local video port type: HDMI
- RJ-45 ports quantity (receiver): 1
Power
- AC adapter output voltage: 12 V
- AC adapter output current: 2.5 A
Weight & dimensions
- Transmitter width: 11.8 cm
- Transmitter depth: 25 cm
- Transmitter height: 3.2 cm
- Transmitter weight: 443 g
- Receiver width: 4.9 cm
- Receiver depth: 8.1 cm
- Receiver height: 2.5 cm
- Receiver weight: 131 g
Packaging content
- AC adapter included: Yes
- Cables included: IR
- Manual: Yes
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 20 - 90%
Logistics data
- Harmonized System (HS) code: 84733080
