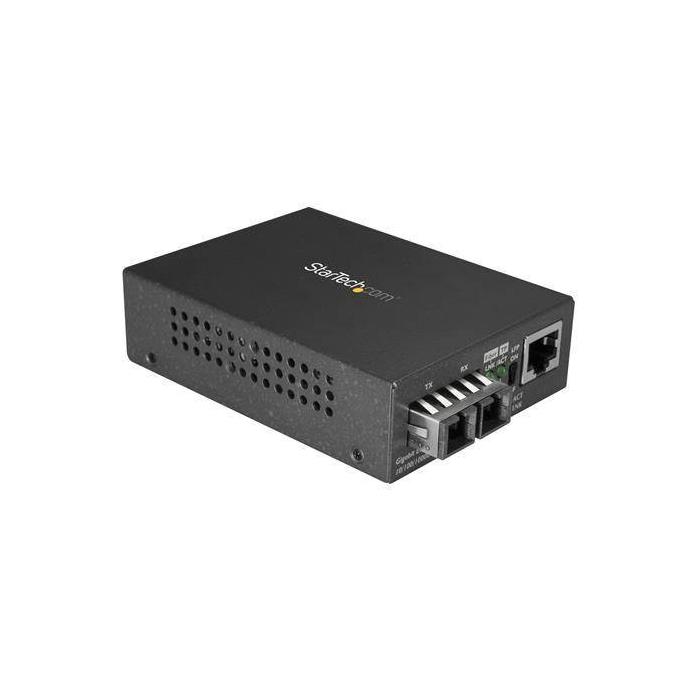

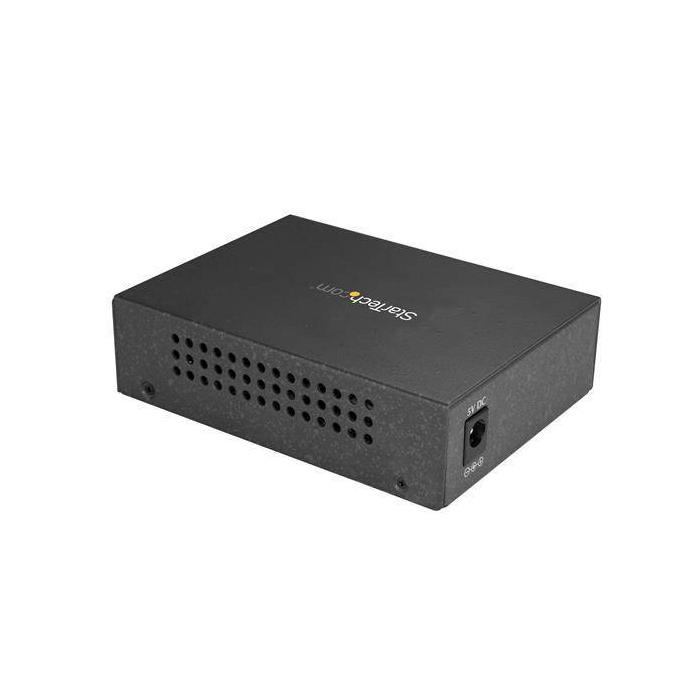

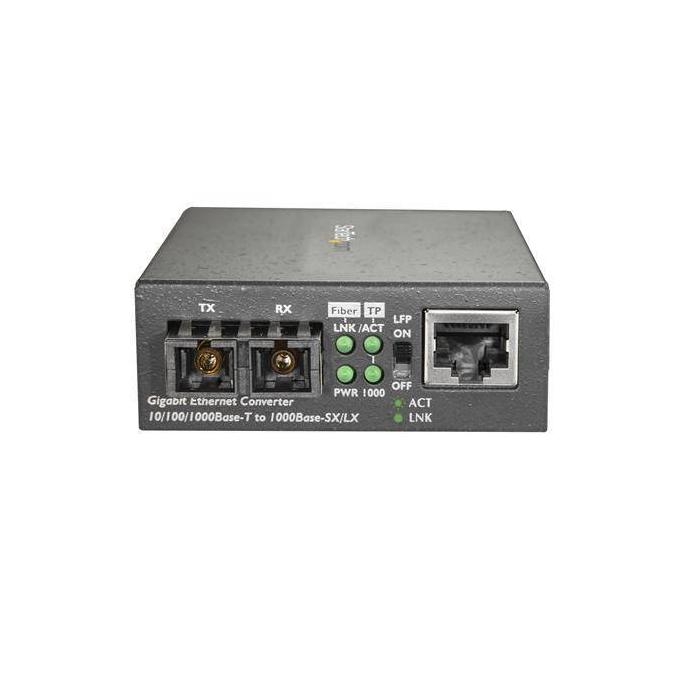

StarTech.com Gigabit Ethernet to SC Fiber Media Converter - 1000Base-LX - Single-mode - 10 km

Return

Product 1 image

Product 2 image

Product 3 image

StarTech.com Gigabit Ethernet to SC Fiber Media Converter - 1000Base-LX - Single-mode - 10 km

$91.41

$91.41 without VAT

StarTech.com Gigabit Ethernet to SC Fiber Media Converter - 1000Base-LX - Single-mode - 10 km. More info

Amount

Brand: STARTECH.COM

SKU: 80235 PRC: 200064 EAN: 65030878241 PN: MCMGBSCSM10

Description

Specifications

Network

Maximum data transfer rate: 1000 Mbit/s
Converter input interface: 10Base-T, 100Base-TX, 1000Base-T
Converter output interface: 100Base-LX
Networking standards: IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Ethernet interface type: Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates: 10, 100, 1000 Mbit/s
Jumbo frames support: Yes
Jumbo frames: 9000
Auto MDI/MDI-X: Yes
Store-and-forward: Yes
Duplex system: Full

Performance

Maximum transfer distance: 10000 m
Wavelength: 1310 nm
Wavelength-division multiplexing (WDM): No
Fiber mode structure: Single-mode
Mean time between failures (MTBF): 50000 h

Features

Internal: No
LED indicators: Activity, Link, Power
Product colour: Black

Ports & interfaces

Connectivity technology: Wired
Ethernet LAN (RJ-45) ports: 1
Fiber ports quantity: 1
Fiber optic connector: SC

Power

Input voltage: 100 - 240 V
Input current: 0.5 A
Output voltage: 5 V
Output current: 2.6 A
External power adapter: Yes
Power plug type: Type N

Weight & dimensions

Width: 105 mm
Depth: 70 mm
Height: 26 mm
Weight: 196 g

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -10 - 70 °C
Operating relative humidity (H-H): 5 - 90%

Packaging content

AC adapter included: Yes
Quick installation guide: Yes

Packaging data

Package width: 138 mm
Package depth: 285 mm
Package height: 66 mm
Package weight: 560 g

Certificates

Compliance certificates: RoHS
Certification: CE, FCC

Logistics data

Harmonized System (HS) code: 85176990
