Description

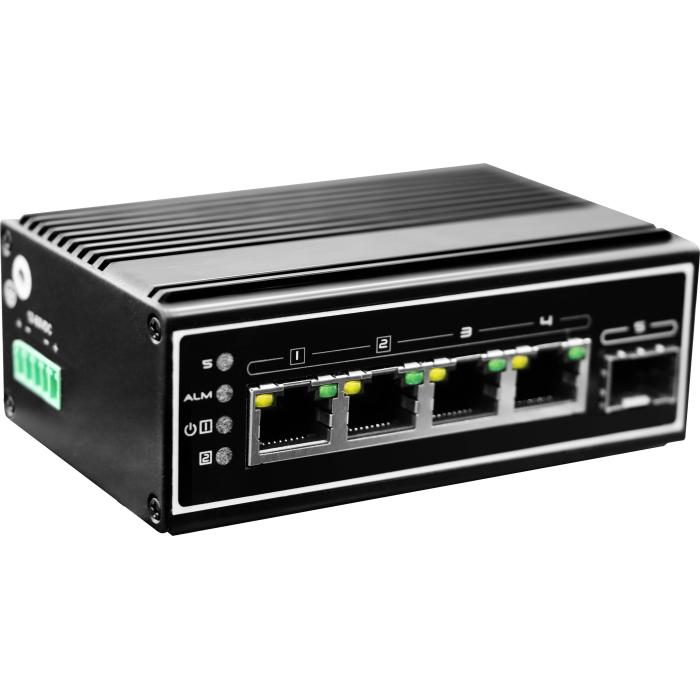

Connect up to four Gigabit Ethernet devices and an additional SFP slot with the LevelOne IGP-0502 unmanaged switch, in black to blend discreetly into any installation. This unit supports Power over Ethernet (PoE) in accordance with IEEE 802.3af and 802.3at standards, with a switching capacity of 10 Gbit/s and jumbo frames of 9000 bytes to optimise data transfer between network devices. Its MAC address table of 8000 entries and automatic MDI/MDI-X detection enable direct connection without crossover cables, while the LED indicators for activity, link, and power allow you to monitor network status at a glance.
Specifications
Management features
- Switch type: Unmanaged
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 4
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Gigabit Ethernet (copper) ports quantity: 4
- SFP module slots quantity: 1
Network
- Networking standards: IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x, IEEE 802.3at, IEEE 802.3z
- 10G support: No
- Auto MDI/MDI-X: Yes
- Ethernet LAN data rates: 1000 Mbit/s
Data transmission
- Switching capacity: 10 Gbit/s
- MAC address table: 8000 entries
- Jumbo frames support: Yes
- Jumbo frames: 9000
Design
- Rack mounting: No
- Stackable: No
- Product colour: Black
- LED indicators: Activity, Link, Power
- Wall mountable: Yes
- DIN rail mounting: Yes
Performance
- Internal memory: 1 MB
Power
- Power source: DC
- DC input voltage: 48 - 57 V
- Power consumption (typical): 5 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
- Power over Ethernet (PoE) power per port: 30 W
- Total Power over Ethernet (PoE) budget: 120 W
Operational conditions
- Operating temperature (T-T): -40 - 75 °C
- Storage temperature (T-T): -40 - 85 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 5 - 95%
Weight & dimensions
- Width: 65 mm
- Depth: 50 mm
- Height: 99 mm
- Weight: 350 g
Packaging content
- Quick start guide: Yes
Packaging data
- Package type: Box
- Package width: 110 mm
- Package depth: 62 mm
- Package height: 130 mm
- Package weight: 400 g
Technical details
- Pallet net height: 150 cm
- Pallet net length: 80 cm
- Pallet net width: 120 cm
Logistics data
- Country of origin: China
- Harmonized System (HS) code: 85176990
