Description

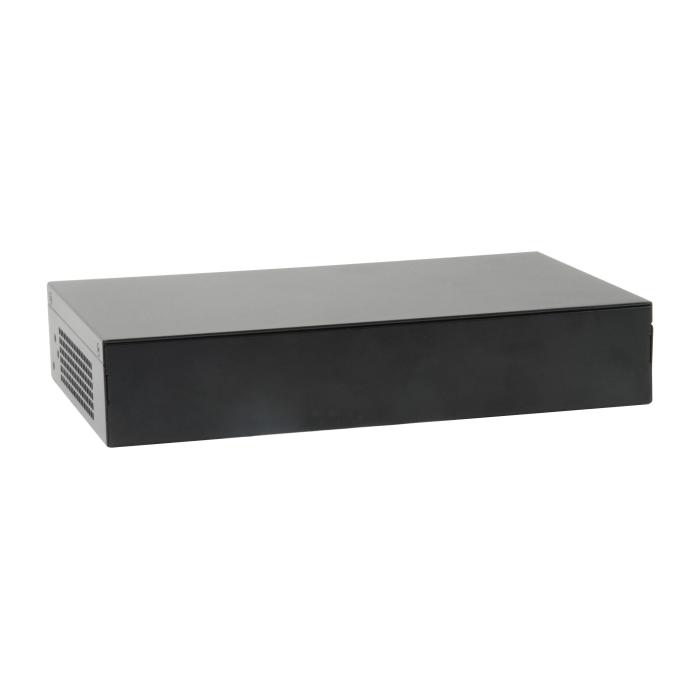

The LevelOne WAC-2000 gateway and controller integrates four RJ-45 Ethernet ports at 10, 100 and 1000 Mbit/s, with a WAN connection of the same type and support for IEEE 802.3, 802.3ab and 802.3u standards. Its 16 MB flash memory and 128 MB RAM allow managing access point isolation and VLANs, in addition to offering QoS, Syslog and a reset button for effective network control. It operates with a 12 V input and a consumption of only 5 W, including a power LED indicator to monitor its status. With dimensions of 232 x 142 x 45 mm and a weight of 780 g, this device centralises the management of your network infrastructure efficiently.
Specifications
Design
- LED indicators: Power
Performance
- Internal memory: 128 MB
- Flash memory: 16 MB
Network
- Ethernet LAN data rates: 10, 100, 1000 Mbit/s
- Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Security
- VLAN support: Yes
- Access point isolation: Yes
Ports & interfaces
- Ethernet LAN (RJ-45) ports: 4
- WAN connection: Ethernet (RJ-45)
Management features
- Quality of Service (QoS) support: Yes
- Reset button: Yes
- Syslog: Yes
Power
- Power consumption (typical): 5 W
- Input voltage: 12 V
- Input current: 1.5 A
Weight & dimensions
- Width: 142 mm
- Depth: 45 mm
- Height: 232 mm
- Weight: 780 g
- Dimensions (WxDxH): 232 x 142 x 45 mm
Packaging data
- Package width: 215 mm
- Package depth: 60 mm
- Package height: 260 mm
- Package weight: 1.2 kg
- Package type: Box
Packaging content
- Cables included: LAN (RJ-45)
- Quick installation guide: Yes
Operational conditions
- Operating temperature (T-T): -20 - 50 °C
- Storage temperature (T-T): -30 - 70 °C
- Operating relative humidity (H-H): 5 - 90%
Technical details
- Package dimensions (WxDxH): 215 x 60 x 260 mm
Certificates
- Certification: EN 55022: 2010+AC:2011 EN 61000-3-2:2014 EN 61000-3-3:2013 EN 55024: 2010+A1:2015\ CE
Logistics data
- Country of origin: China
- Harmonized System (HS) code: 85176990
- Master (outer) case width: 230 mm
- Master (outer) case length: 262 mm
- Master (outer) case height: 620 mm
- Master (outer) case gross weight: 13 kg
- Products per master (outer) case: 10 pc(s)
