Description

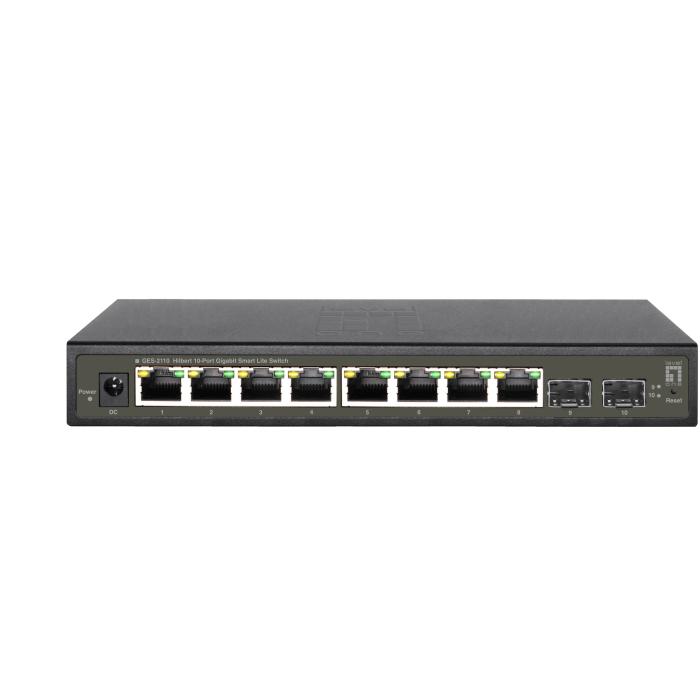

The LevelOne GES-2110 is a black L2 managed switch that organises Gigabit Ethernet networks with eight 10/100/1000-compatible basic switching RJ-45 ports, plus two combo SFP ports. Its management is carried out via web and it supports QoS quality of service, tagged VLAN and VLAN support for segmenting traffic, as well as rate limiting, port mirroring and link aggregation. It incorporates flow control, full duplex operation and MAC address auto-aging, and complies with IEEE 802.1Q, 802.1p, 802.3, 802.3ab, 802.3az, 802.3u, 802.3x and 802.3z standards. Its dimensions are 225 x 35 x 121 mm (width x height x depth) and its weight is 700 g, so it integrates easily into communications cabinets and technical desks.
Specifications
Management features
- Switch type: Managed
- Switch layer: L2
- Quality of Service (QoS) support: Yes
- Web-based management: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 8
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Gigabit Ethernet (copper) ports quantity: 8
- Combo SFP ports quantity: 2
Network
- Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
- 10G support: No
- Port mirroring: Yes
- Full duplex: Yes
- Flow control support: Yes
- Link aggregation: Yes
- Broadcast storm control: Yes
- Rate limiting: Yes
- MAC address auto-learning supported: Yes
- MAC address auto-aging supported: Yes
- VLAN support: Yes
- Virtual LAN features: Tagged VLAN
- Number of VLANs: 32
Data transmission
- Switching capacity: 20 Gbit/s
- MAC address table: 8000 entries
- Number of queues: 4
- Jumbo frames support: Yes
- Jumbo frames: 9000
- Packet buffer memory: 1.5 MB
Security
- IGMP snooping: Yes
Multicast features
- Multicast support: Yes
Design
- Rack mounting: No
- Product colour: Black
- LED indicators: Activity, Link
Performance
- Flash memory: 2 MB
- Noise level: 0 dB
- Fanless: Yes
- Mean time between failures (MTBF): 43800 h
Power
- Power source: DC
- Power supply included: Yes
- DC input voltage: 12 V
- Input current: 1 A
- Power consumption (max): 10 W
- Surge protection: Yes
- Surge protection voltage: 8 kV
Power over Ethernet (PoE)
- Power over Ethernet (PoE): No
Operational conditions
- Operating temperature (T-T): 0 - 45 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 5 - 95%
- Heat dissipation: 34.12 BTU/h
Weight & dimensions
- Width: 225 mm
- Depth: 121 mm
- Height: 35 mm
- Weight: 700 g
Packaging content
- Quick start guide: Yes
Packaging data
- AC adapter included: Yes
- Package type: Box
- Package width: 290 mm
- Package depth: 172 mm
- Package height: 93 mm
- Package weight: 950 g
Sustainability
- Sustainability compliance: Yes
Technical details
- Master (outer) cases per pallet (air): 16 pc(s)
- Pallet gross length: 80 cm
- Pallet gross width: 120 cm
- Pallet height (air): 174.4 cm
Certificates
- Compliance certificates: CE, RoHS
- Certification: UKCA, FCC Class A
Logistics data
- Master (outer) case net weight: 750 g
- Country of origin: China
- Master (outer) case width: 540 mm
- Master (outer) case length: 320 mm
- Master (outer) case height: 400 mm
- Master (outer) case gross weight: 12.2 kg
- Products per master (outer) case: 12 pc(s)
