LevelOne Hilbert 10” 8-Port Gigabit Smart Lite Switch, 8 x Gigabit RJ45 (10/100/1000)

Few units

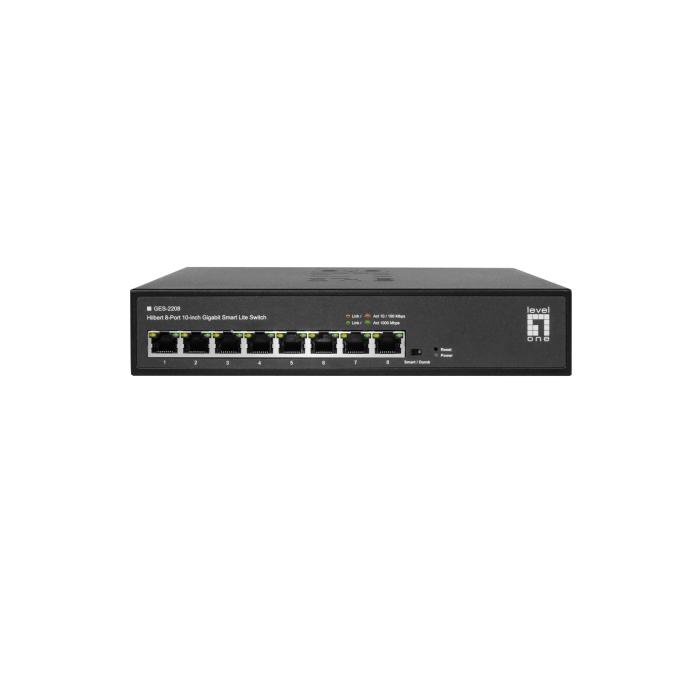

Product 1 image

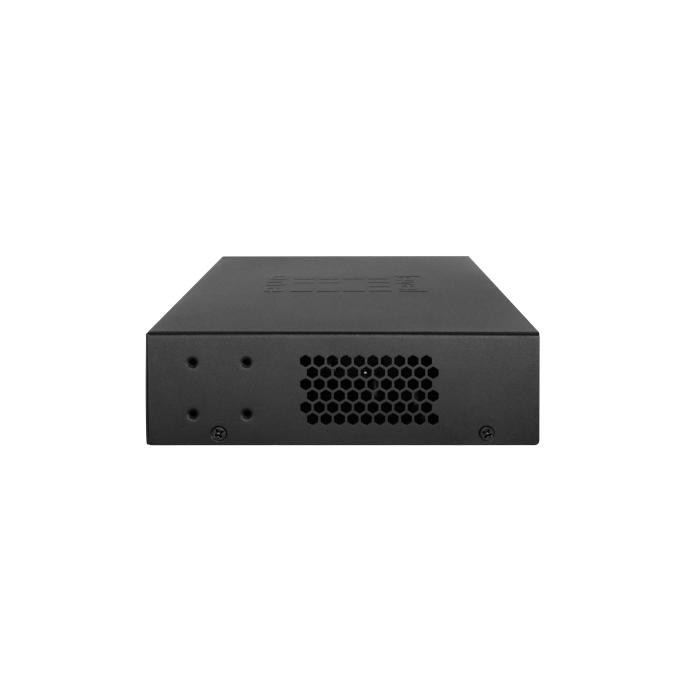

Product 2 image

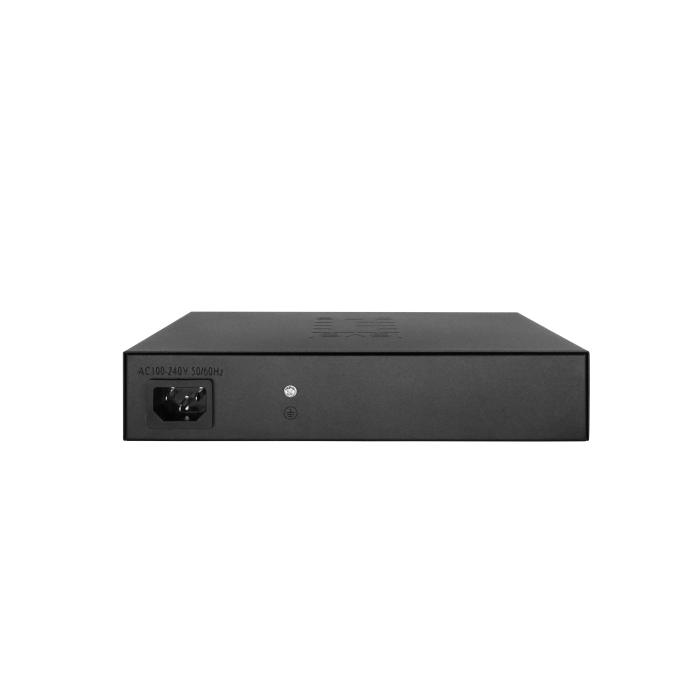

Product 3 image

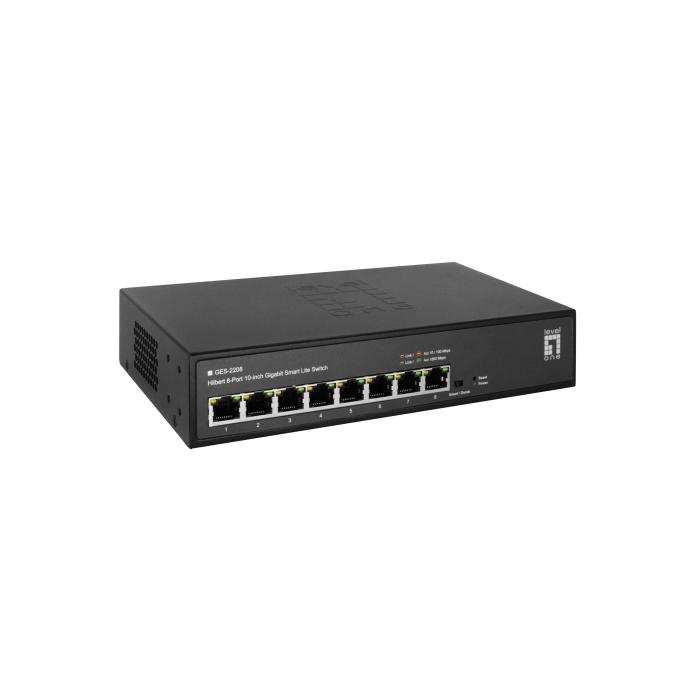

Product 4 image

LevelOne Hilbert 10” 8-Port Gigabit Smart Lite Switch, 8 x Gigabit RJ45 (10/100/1000)

77.00 €

63.64 € without VAT

Amount

Brand: LEVELONE

SKU: 119401 PRC: 533625 EAN: 4015867229972 PN: GES-2208

Description

Hilbert 10” 8-Port Gigabit Smart Lite Switch, 8 x Gigabit RJ45 (10/100/1000)

Specifications

Management features

Switch type: Managed
Switch layer: L2
Quality of Service (QoS) support: Yes
Web-based management: Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 8
Power connector: AC-in jack

Network

Networking standards: IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support: No
Port mirroring: Yes
Full duplex: Yes
Half duplex: Yes
Link aggregation: Yes
Broadcast storm control: Yes
Rate limiting: Yes
Auto MDI/MDI-X: Yes
Auto-negotiation: Yes
MAC address auto-learning supported: Yes
MAC address auto-aging supported: Yes
VLAN support: Yes
Number of VLANs: 32

Data transmission

Switching capacity: 16 Gbit/s
Forwarding rate: 11.904 Mpps
MAC address table: 4000 entries
Jumbo frames support: Yes
Jumbo frames: 9000
Packet buffer memory: 1.5 MB

Security

IGMP snooping: Yes

Design

Product colour: Black
LED indicators: Activity, Link, Power
Rack mounting: Yes
Stackable: No

Performance

Flash memory: 2 MB
Noise level: 0 dB
Fanless: Yes

Power

Power source: AC
Power supply included: Yes
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Power consumption (typical): 6 W

Power over Ethernet (PoE)

Power over Ethernet (PoE): No

Operational conditions

Operating temperature (T-T): 0 - 45 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 95%
Heat dissipation: 20.4 BTU/h

Weight & dimensions

Width: 215 mm
Depth: 150 mm
Height: 44.5 mm
Weight: 720 g

Packaging content

Cables included: AC
Quick start guide: Yes
Rack mount kit: Yes

Packaging data

Package type: Box
Package width: 285 mm
Package depth: 257 mm
Package height: 62 mm
Package weight: 1.19 kg

Certificates

Certification: CE, UKCA, FCC Part 15, Subpart B Class B, RoHS

Logistics data

Country of origin: China
