Description

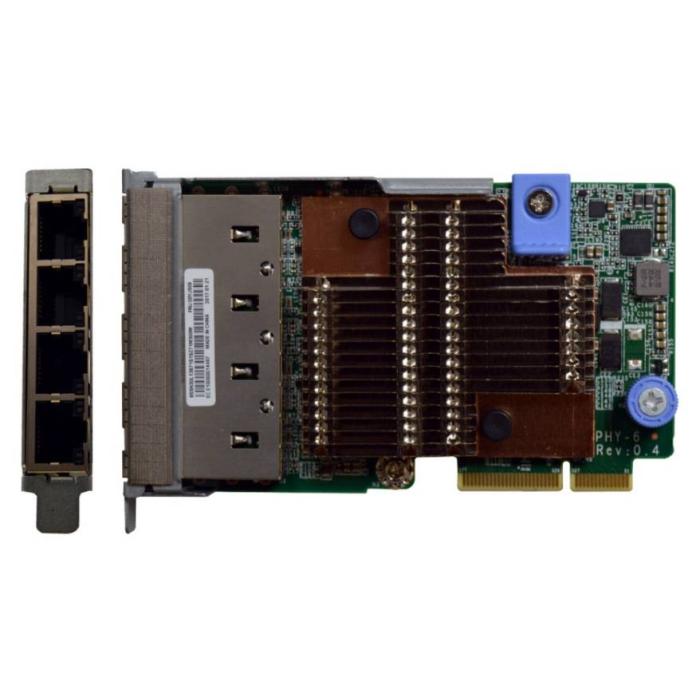

Internal Lenovo network card, model 7ZT7A00549, designed for Ethernet connectivity of up to 10000 Mbit/s via a PCI Express host interface. With four RJ-45 ports and 10GBase-T cabling technology, it supports jumbo frames of 9728 bytes, VLAN tagging and quality of service, integrating the Intel C624 chipset and protocols such as IEEE 802.1Q, 802.3ad and SNMP. Its green colour suits compatible servers such as SR630, SR650, SR850, SR860 and SR950, facilitating high-speed network management in corporate environments.
Specifications
Ports & interfaces
- Connectivity technology: Wired
- Host interface: PCI Express
- Interface: Ethernet
- Ethernet LAN (RJ-45) ports: 4
Network
- Maximum data transfer rate: 10000 Mbit/s
- Networking standards: IEEE 802.1Q, IEEE 802.1Qbg, IEEE 802.1p, IEEE 802.3ad, IEEE 802.3x
- Ethernet LAN: Yes
- Ethernet LAN data rates: 10, 100, 1000, 10000 Mbit/s
- Cabling technology: 10GBase-T
- Security algorithms: SNMP
- Jumbo frames support: Yes
- Jumbo frames: 9728
- Quality of Service (QoS) support: Yes
- VLAN tagging: Yes
Design
- Product colour: Green
- Internal: Yes
- Chipset: Intel® C624
- Certification: UL recognized to UL60950-1 2nd Edition FCC Rules, Part 15, Class A Australian EMC Framework (RCM) Japan VCCI, Class A Industry C
- Compatible products: SR630 SR650 SR850 SR860 SR950
System requirements
- Linux operating systems supported: Red Hat Enterprise Linux WS 6.0, Red Hat Enterprise Linux WS 7.0, openSUSE 11.3, openSUSE 11.4, openSUSE 12.1, openSUSE 12.2
- Other operating systems supported: VMware vSphere ESXi
- Server operating systems supported: Windows Server 2012 R2, Windows Server 2012 R2 x64, Windows Server 2016
Technical details
- Compliance certificates: RoHS
Logistics data
- Harmonized System (HS) code: 85176990
Other features
- Flow control support: Yes
- Number of VLANs: 4096
- PCI-SIG* SR-IOV Capable: Yes
- Receive Side Scaling (RSS): Yes
