Description

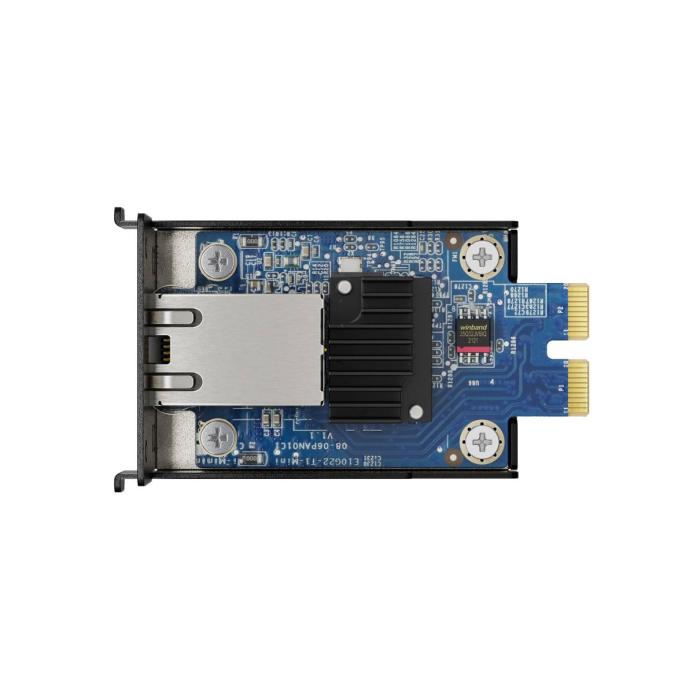

The Synology E10G22-T1-Mini network card, in blue with a compact form factor, integrates a PCI Express interface with an RJ-45 Ethernet port to connect your storage server or NAS to 10 Gigabit Ethernet networks, with transfer speeds of 100, 1000, 2500, 5000, and 10000 Mbit/s. Specifically designed for compatible models such as the Synology RS422+ and DS1522+, it offers support for jumbo frames up to 9000 bytes, auto-negotiation, and full duplex mode, ensuring a stable wired connection with IEEE 802.3ab, 802.3an, 802.3bz, 802.3u, and 802.3x standards. This component optimises network traffic in NAS environments thanks to its 10GBase-T technology, without the need for WiFi.
Specifications
Ports & interfaces
- Connectivity technology: Wired
- Host interface: PCI Express
- Interface: Ethernet
- Ethernet LAN (RJ-45) ports: 1
Network
- Maximum data transfer rate: 10000 Mbit/s
- Networking standards: IEEE 802.3ab, IEEE 802.3an, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
- Ethernet LAN: Yes
- Ethernet interface type: 10 Gigabit Ethernet
- Ethernet LAN data rates: 100, 1000, 2500, 5000, 10000 Mbit/s
- Cabling technology: 10GBase-T
- Wi-Fi: No
- Full duplex: Yes
- Jumbo frames support: Yes
- Auto-negotiation: Yes
- Jumbo frames: 9000
Design
- Component for: NAS/storage server
- Product colour: Blue
- Internal: Yes
- Compatible products: Synology RS422+, DS1522+
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 5 - 95%
Weight & dimensions
- Width: 45.4 mm
- Depth: 75.7 mm
- Height: 26.4 mm
Other features
- Interface type: PCIe 3.0 x2
