Description

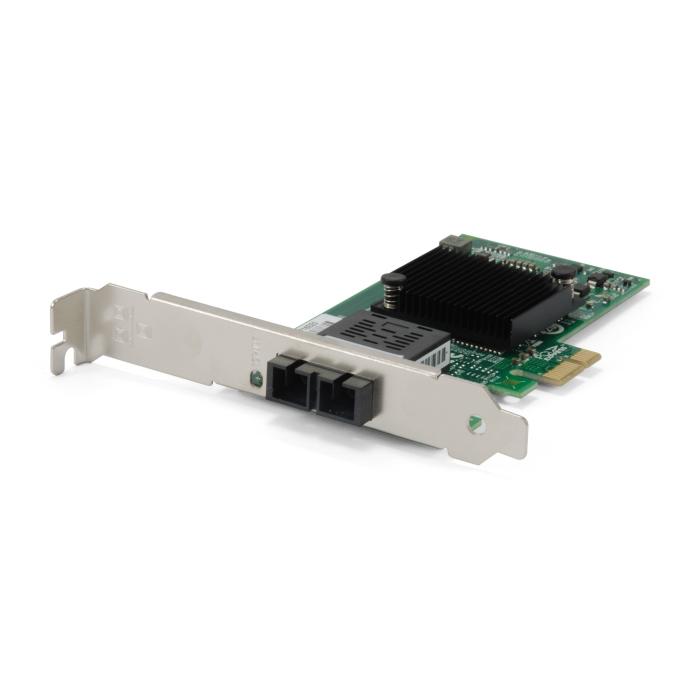

LevelOne GNC-0200 internal network adapter with PCI Express host interface and fibre optic cable connectivity, designed to integrate an SC fibre channel port into your system. It operates at a maximum transfer speed of 1000 Mbit/s under the 1000BASE-SX standard, with support for auto-negotiation, full duplex, and jumbo frames of up to 9000 bytes. It includes VLAN tagging and complies with IEEE 802.1Q, 802.1p, 802.3, 802.3ad, and 802.3x standards, as well as featuring activity and link LED indicators. It is compatible with Linux, DOS, and Novell NetWare 5.x and 6.x operating systems.
Specifications
Ports & interfaces
- Connectivity technology: Wired
- Host interface: PCI Express
- Interface: Fiber
- Fiber ports quantity: 1
- Fiber optic connector: SC
Network
- Maximum data transfer rate: 1000 Mbit/s
- Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ad, IEEE 802.3x
- Fiber ethernet cabling technology: 1000BASE‑SX
- Wake-on-LAN ready: Yes
- Full duplex: Yes
- Jumbo frames support: Yes
- Auto-negotiation: Yes
- Jumbo frames: 9000
- VLAN tagging: Yes
Design
- Internal: Yes
- LED indicators: Activity, Link
System requirements
- Windows operating systems supported: Windows 2000, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Pre
- Linux operating systems supported: Yes
- Other operating systems supported: DOS, Novell NetWare 5.x, Novell NetWare 6.x
- Server operating systems supported: Windows Server 2003, Windows Server 2003 x64, Windows Server 2008, Windows Server 2008 R2, Windows Server 2008 R2 x64, Windows S
Operational conditions
- Operating temperature (T-T): 0 - 55 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 5 - 95%
- Storage relative humidity (H-H): 5 - 95%
Weight & dimensions
- Width: 17 mm
- Depth: 68 mm
- Height: 115 mm
- Weight: 67 g
Packaging data
- Drivers included: Yes
- Package width: 153 mm
- Package depth: 30 mm
- Package height: 230 mm
- Package weight: 86 g
Packaging content
- Mounting brackets included: Yes
- Manual: Yes
Logistics data
- Harmonized System (HS) code: 85176990
Other features
- Quick start guide: Yes
- Flow control support: Yes
