Allied Telesis 2914SX/LC Internal Fiber 1000 Mbit/s
More info
Brand: ALLIED TELESIS
342.02 €
282.66 €
without VAT
incl. 21 % VAT
Stock available: 2 units.
Get it
on the
October 16
/
October 19
SKU:
112577
PRC:
354268
EAN:
767035210636
PN:
AT-2914SX/LC-901
Description

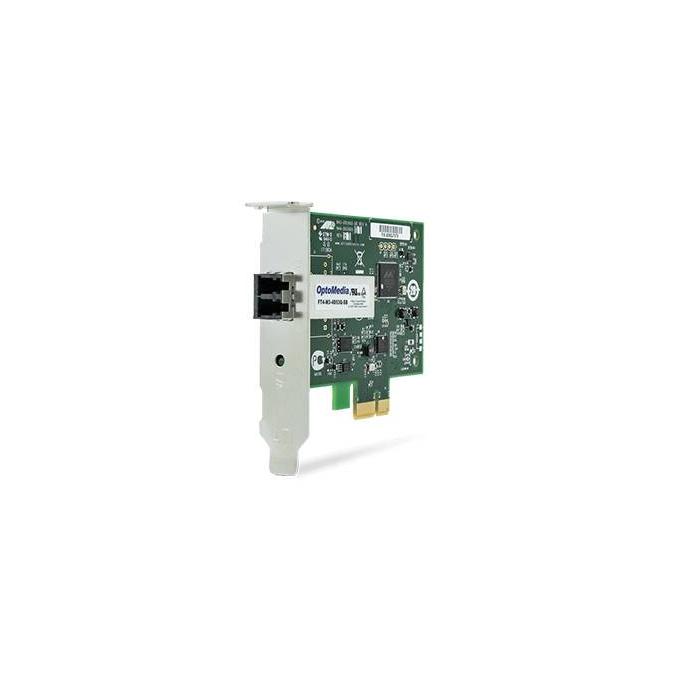

The Allied Telesis 2914SX/LC network card is an internal adapter for installation in the equipment via a PCI Express interface. It incorporates two fibre channel ports with LC connector and offers a maximum data transfer speed of 1000 Mbit/s over a wired connection. It supports auto-negotiation, automatic load control and quality of service, as well as Jumbo frames of up to 9600 bytes. It complies with the network standards IEEE 802.1Q, IEEE 802.1p, IEEE 802.2, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3x and IEEE 802.3z, and supports SNMP security algorithms. It features LED indicators to monitor the connection status and its power consumption is 1.5 W. It has a weight of 68 g and is certified under UL, FCC/EN55022 Class A, TUV, EN55024, CE, C-TICK and VCCI.
Specifications
Ports & interfaces
- Connectivity technology: Wired
- Host interface: PCI Express
- Interface: Fiber
- Fiber ports quantity: 2
- Fiber optic connector: LC
Network
- Maximum data transfer rate: 1000 Mbit/s
- Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.2, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3z
- Security algorithms: SNMP
- Wake-on-LAN ready: Yes
- Jumbo frames support: Yes
- Auto-negotiation: Yes
- Jumbo frames: 9600
- Quality of Service (QoS) support: Yes
- Load balancing system: Yes
Design
- Internal: Yes
- LED indicators: Yes
- Certification: UL, FCC/EN55022 Class A, TUV, EN55024, CE, C-TICK, VCCI
Power
- Power consumption (typical): 1.5 W
System requirements
- Windows operating systems supported: Windows 10, Windows 7
- Linux operating systems supported: Yes
- Server operating systems supported: Windows Server 2016, Windows Server 2019
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -25 - 70 °C
- Operating relative humidity (H-H): 5 - 90%
Weight & dimensions
- Width: 88 mm
- Height: 69 mm
- Weight: 68 g
Technical details
- Compliance certificates: RoHS
Logistics data
- Harmonized System (HS) code: 85176990
Other features
- Flow control support: Yes
