Description

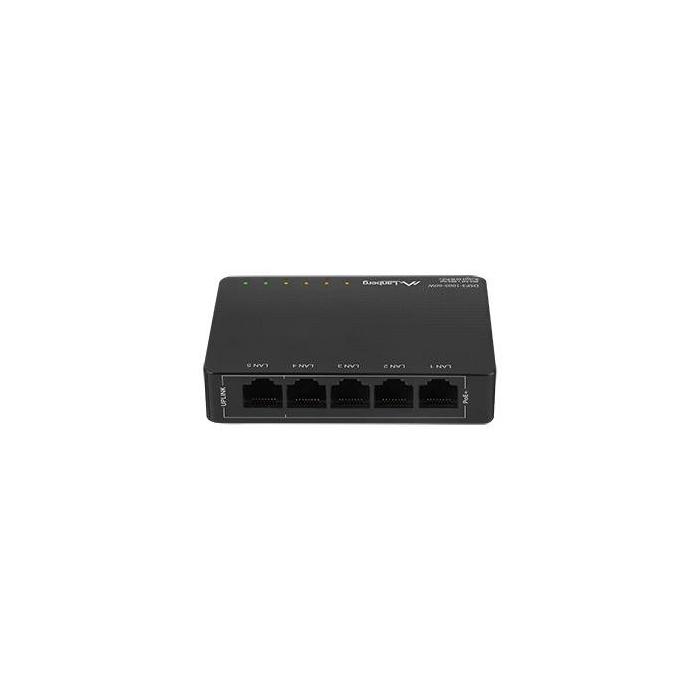

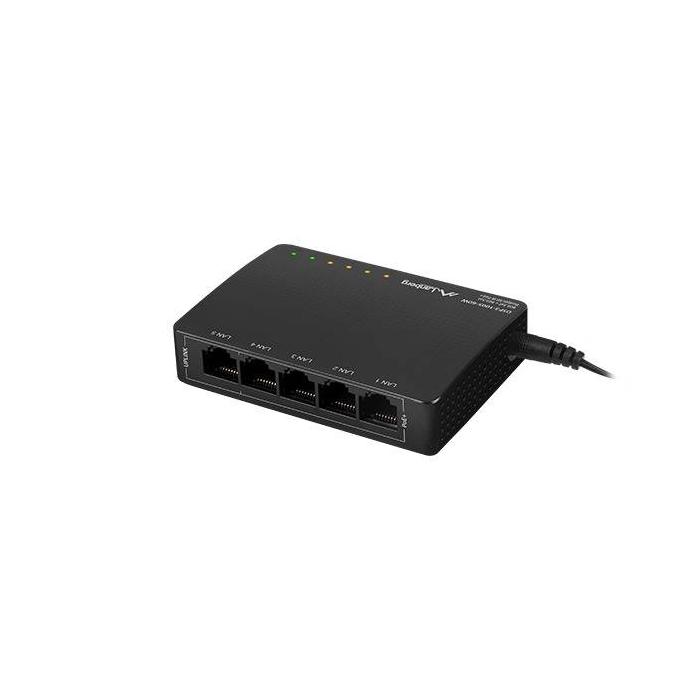

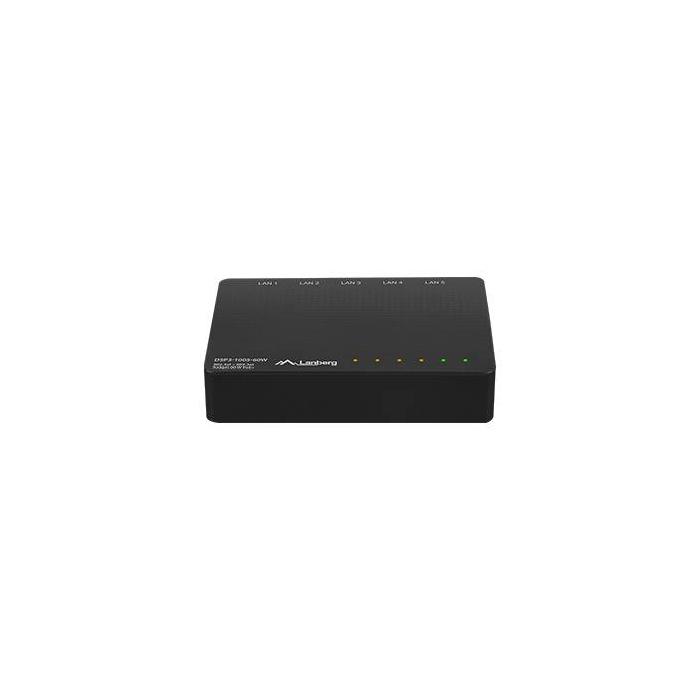

The Lanberg DSP3-1005-60W switch, an unmanaged model in black, features five Gigabit Ethernet ports and one uplink port, allowing multiple devices to be connected to the network at speeds of up to 1000 Mbit/s. Its PoE technology simplifies cabling by supplying power over the network cable itself to compatible devices such as cameras or access points, in accordance with IEEE 802.3af and 802.3at standards. This unit integrates flow control, auto-negotiation, and full-duplex and half-duplex transmission, with a MAC address table of 2000 entries and a switching capacity of 10 Gbit/s to handle traffic smoothly.
Specifications
Management features
- Switch type: Unmanaged
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 5
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Gigabit Ethernet (copper) ports quantity: 5
- Uplink ports quantity: 1
Network
- Networking standards: IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
- Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
- Full duplex: Yes
- Half duplex: Yes
- Flow control support: Yes
- Auto MDI/MDI-X: Yes
- Ethernet LAN data rates: 10,1000 Mbit/s
- Auto-negotiation: Yes
Data transmission
- Switching capacity: 10 Gbit/s
- MAC address table: 2000 entries
Design
- Rack mounting: No
- Product colour: Black
- Housing material: Plastic
- LED indicators: Activity, LAN, Link, PoE, Power
- International Protection (IP) code: IP20
- Wall mountable: Yes
Power
- Power source: AC
- Power supply included: Yes
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- DC input voltage: 53 V
- Input current: 1.12 A
- Power consumption (max): 65 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
- Power over Ethernet (PoE) ports quantity: 4
- Power over Ethernet plus (PoE+) ports quantity: 4
- Power over Ethernet (PoE) power per port: 30 W
- Total Power over Ethernet (PoE) budget: 60 W
Operational conditions
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 0 - 85%
Weight & dimensions
- Width: 65.7 mm
- Depth: 93 mm
- Height: 22.3 mm
- Weight: 540 g
Certificates
- Certification: CE, RoHS
