Description

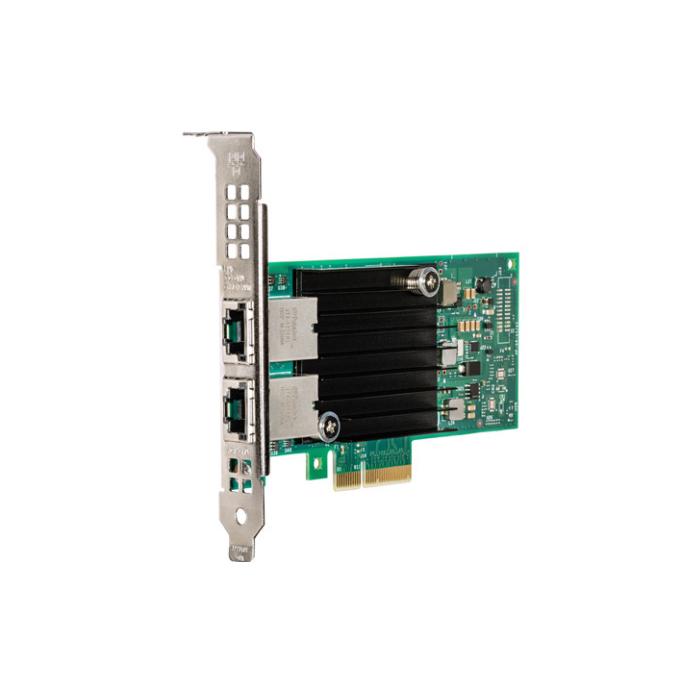

The Intel X550T2 adapter and network card is an internal solution with a PCI Express 3.0 interface and a low-profile form factor, designed for medium-tower systems. This 10 Gbit/s Ethernet card features two RJ-45 ports and wired connection technology, offering transfer speeds of up to 10000 Mbit/s via 10GBase-T cabling and compatibility with 5G, 2.5G, Gigabit and Fast Ethernet. Its Intel X550 controller supports IEEE 802.3, 802.1Q, 802.1as, 802.1p and 802.3ad standards, as well as VLAN tagging and iSCSI, with a maximum operating distance of 100 metres. In green and silver, it integrates internally into your system to expand high-performance network connectivity.
Specifications
Ports & interfaces
- PCI Card form factor: Half-height (low-profile)
- Connectivity technology: Wired
- Host interface: PCI Express
- Interface: Ethernet
- Ethernet LAN (RJ-45) ports: 2
- PCI version: 3.0
Network
- Maximum data transfer rate: 10000 Mbit/s
- Networking standards: IEEE 802.1Q, IEEE 802.1as, IEEE 802.1p, IEEE 802.3, IEEE 802.3ad
- Ethernet LAN: Yes
- Ethernet interface type: 5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
- Ethernet LAN data rates: 100, 1000, 2500, 5000, 10000 Mbit/s
- Cabling technology: 10GBase-T
- VLAN tagging: Yes
- iSCSI support: Yes
- Maximum operating distance: 100 m
- LAN controller: Intel® X550
Design
- Product colour: Green, Silver
- Internal: Yes
System requirements
- Compatible operating systems: https://www.intel.com/content/www/us/en/support/articles/000025890/network-and-i-o/ethernet-products.html
- Windows operating systems supported: Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows
- Linux operating systems supported: Red Hat Enterprise Linux WS 5.0, Red Hat Enterprise Linux WS 6.0, SUSE Linux Enterprise Desktop 10, SUSE Linux Enterprise Deskto
- Server operating systems supported: Windows Server 2003, Windows Server 2008 R2, Windows Server 2008 R2 x64, Windows Server 2008 x64, Windows Server 2012 R2, Window
Operational conditions
- Operating temperature (T-T): 0 - 55 °C
- Storage temperature (T-T): -40 - 70 °C
- Storage relative humidity (H-H): 0 - 90%
Logistics data
- Harmonized System (HS) code: 85176990
Other features
- Data transfer rate: 8 GT/s
- Cable type: RJ45 Category 6 up to 55m; Category 6A up to 100m
- Market segment: Server
- Number of VLANs: 4096
- Intel Virtual Machine Device Queues (VMDq): Yes
- PCI-SIG* SR-IOV Capable: Yes
- On-chip QoS and Traffic Management: Yes
- Intel Flexible Port Partitioning: Yes
- Speed & slot width: 8.0 GT/s, x4 Lane
- Low halogen options available: No
- Intelligent Offloads: Yes
- iWARP/RDMA: No
- Fiber Channel over Ethernet: Yes
- Intel Data Direct I/O Technology: Yes
- Intel Virtualization Technology for Connectivity (VT-c): Yes
- Interface type: PCIe v3.0 (8.0 GT/s)
- Conflict-Free: Yes
- Product type: Network Interface Card
- Storage Over Ethernet: iSCSI, FCoE, NFS
- Desktop Management Interface (DMI) version: 2.0
- Launch date: Q1'16
- Network interface card cable medium: Copper
- Network interface card type: Server
- Product brief URL: http://www.intel.com/content/www/us/en/ethernet-products/converged-network-adapters/ethernet-x550-brief.html
- Status: Launched
- Last change: 64826838
- Processor family: 500 Network Adapters (up to 10GbE)-500 Network Adapters (up to 10GbE)
- Ethernet adapter ARK ID: 88209
- Export Control Classification Number (ECCN): 5A992C
- Commodity Classification Automated Tracking System (CCATS): G135872
- Controller type: Intel® Ethernet Controller X550
- Cabling type: RJ45 Category 6 up to 55m; Category 6A up to 100m
- Bracket height: Low-Profile (LP) / Full-Height (FH)
- Product family: Intel 10 Gigabit server adapter
- Product series: 500 Series Network Adapters (up to 10GbE)
