Description

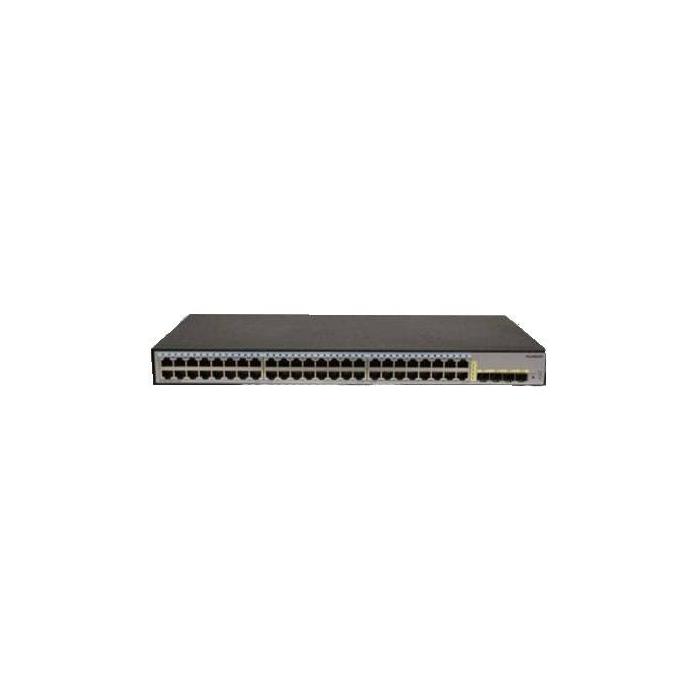

The HUAWEI S1700-52GFR-4P-AC managed switch is an L2 layer network device designed to organise and segment data installations. It offers 48 Gigabit Ethernet copper ports and 4 SFP module slots, with transfer speeds of 10, 100 and 1000 Mbit/s. It supports up to 4000 VLANs and supports network standards such as IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w and IEEE 802.1x, which facilitates traffic management in demanding networks. It incorporates quality of service (QoS), storm transmission control and rate limiting to prioritise critical traffic. Its MAC address table supports 8000 entries and allows functions such as port mirroring or link aggregation. With dimensions of 442 x 43.6 x 220 mm (width x height x depth), it integrates easily into communications cabinets and racks.
Specifications
Management features
- Switch type: Managed
- Switch layer: L2
- Quality of Service (QoS) support: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 48
- Gigabit Ethernet (copper) ports quantity: 48
- SFP/SFP+ slots quantity: 4
- SFP module slots quantity: 4
Network
- Networking standards: IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x
- 10G support: No
- Port mirroring: Yes
- Link aggregation: Yes
- Broadcast storm control: Yes
- Rate limiting: Yes
- Ethernet LAN data rates: 10,100,1000 Mbit/s
- VLAN support: Yes
- Number of VLANs: 4000
Data transmission
- Supported data transfer rates: 10/100/1000Mbps
- Switching capacity: 104 Gbit/s
- MAC address table: 8000 entries
- Number of queues: 8
Security
- DHCP features: DHCP client
- Access Control List (ACL): Yes
- IGMP snooping: Yes
- MAC address filtering: Yes
Multicast features
- Multicast support: Yes
Protocols
- Management protocols: SNMP, RMON, VCT, LLDP, EEE
Design
- Stackable: No
- Number of fans: 1 fan(s)
Power
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Power consumption (typical): 45 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): No
Other features
- Connectivity technology: Wired
- Packet transfer speed: 78 Mpps
- Ethernet LAN: Yes
Operational conditions
- Operating temperature (T-T): 0 - 45 °C
- Operating relative humidity (H-H): 20 - 85%
- Storage relative humidity (H-H): 10 - 90%
Weight & dimensions
- Width: 442 mm
- Depth: 220 mm
- Height: 43.6 mm
