Dahua Technology SG4010-2F Managed L2 Gigabit Ethernet (10/100/1000) Black
More info
Brand: DAHUA TECHNOLOGY
54.88 €
45.36 €
without VAT
incl. 21 % VAT
Stock available: 19 units.
Get it
on the
October 16
/
October 19
SKU:
103263
PRC:
465716
EAN:
6923172597670
PN:
dh-sg4010-2f
Description

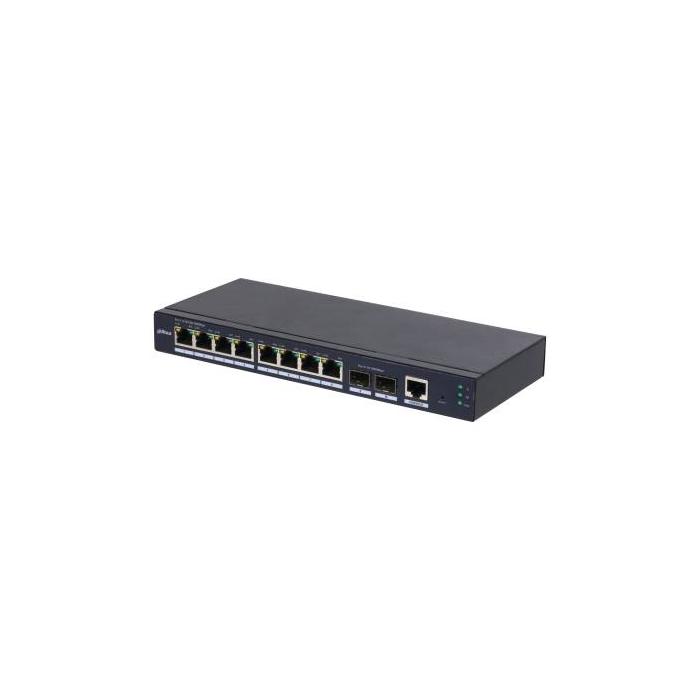

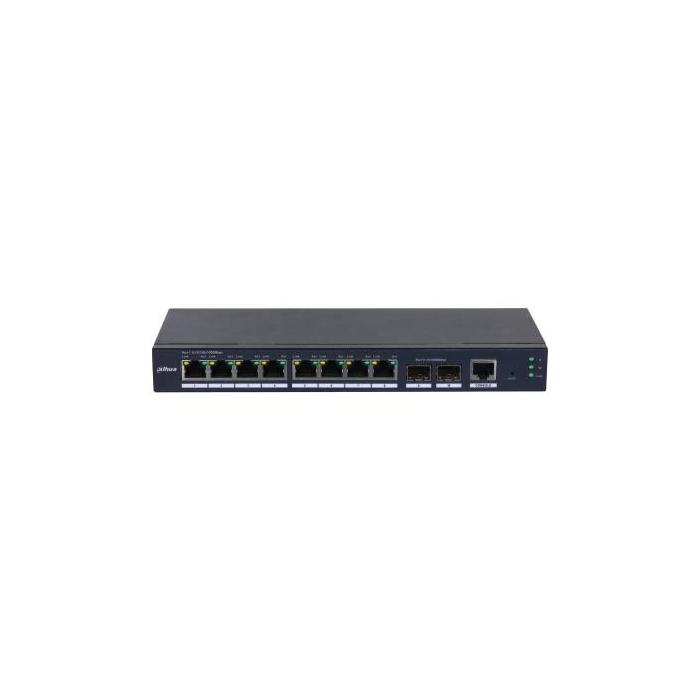

The Dahua Technology SG4010-2F managed switch, in black, is an L2 layer device with eight Gigabit Ethernet (10/100/1000) RJ-45 ports and two slots for SFP modules, designed to expand the network with uplink connections. It includes an RJ-45 console port and allows web-based management, as well as offering support for QoS and VLAN with up to 4000 VLANs. At connection level, it supports link aggregation, flow control and 10BASE-T, 100BASE-TX and 1000BASE-T copper cabling technologies, complying with network standards such as IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab and IEEE 802.3ad. With dimensions of 104 x 28 x 240 mm (width x height x depth) and a weight of 640 g, it integrates easily into network installations that require traffic segmentation and prioritisation.
Specifications
Management features
- Switch type: Managed
- Switch layer: L2
- Quality of Service (QoS) support: Yes
- Web-based management: Yes
- Cloud-managed: No
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 8
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Gigabit Ethernet (copper) ports quantity: 8
- SFP module slots quantity: 2
- Uplink ports quantity: 2
- Console port: RJ-45
Network
- Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
- 10G support: No
- Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
- Full duplex: Yes
- Flow control support: Yes
- Link aggregation: Yes
- Spanning tree protocol: Yes
- Ethernet LAN data rates: 10,100,1000 Mbit/s
- VLAN support: Yes
- Virtual LAN features: Port-based VLAN, Tagged VLAN
- Number of VLANs: 4000
Optical fiber
- Fiber ethernet cabling technology: 1000BASE-X
Data transmission
- Switching capacity: 20 Gbit/s
- Forwarding rate: 14.88 Mpps
- MAC address table: 8000 entries
- Jumbo frames support: Yes
- Jumbo frames: 9000
- Packet buffer memory: 4.1 MB
Security
- DHCP features: DHCP client
- Access Control List (ACL): Yes
- IGMP snooping: Yes
Multicast features
- Multicast support: Yes
Protocols
- Management protocols: SNMP V1/V2C/V3
Design
- Rack mounting: No
- Product colour: Black
- Housing material: Steel
- Reset button: Yes
- LED indicators: Yes
- Wall mountable: Yes
Performance
- Fanless: Yes
- Mean time between failures (MTBF): 2322286.99 h
Power
- Power source: DC
- DC input voltage: 12 V
- Input current: 1 A
- Power consumption (max): 12 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): No
Operational conditions
- Operating temperature (T-T): -10 - 55 °C
- Operating relative humidity (H-H): 5 - 95%
Weight & dimensions
- Width: 104 mm
- Depth: 240 mm
- Height: 28 mm
- Weight: 640 g
Packaging data
- Package width: 240 mm
- Package depth: 316 mm
- Package height: 82 mm
- Package weight: 1.04 kg
Sustainability
- Sustainability compliance: Yes
Certificates
- Compliance certificates: CE
