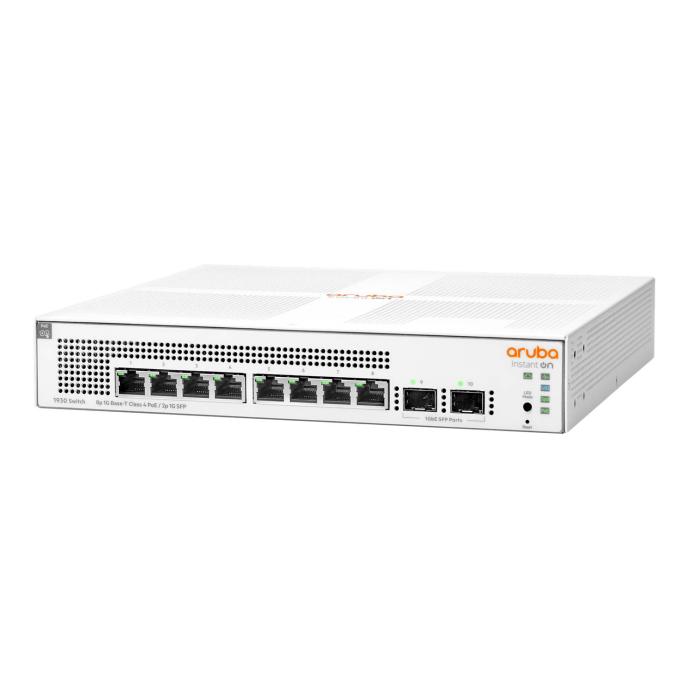

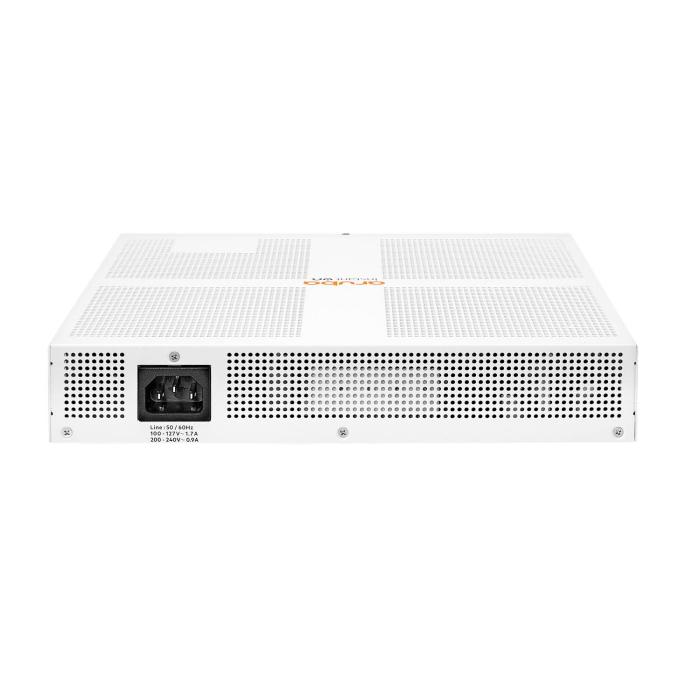

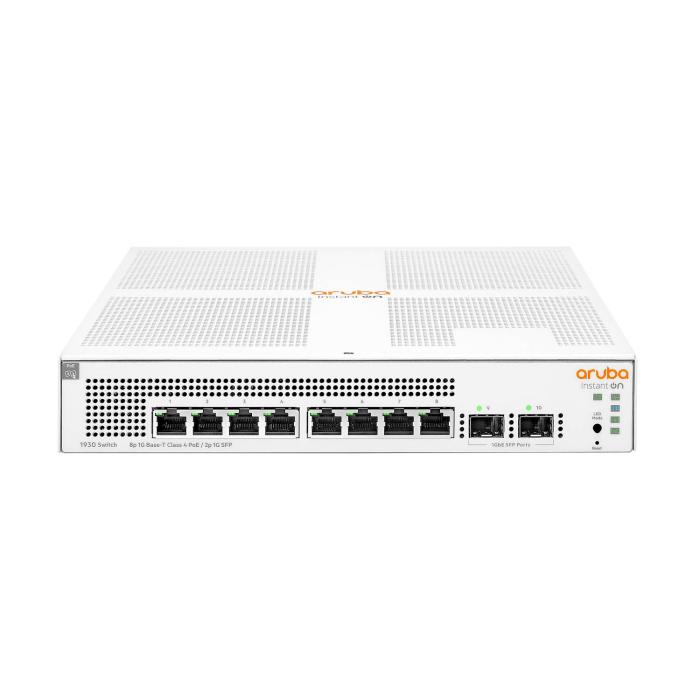

Hewlett Packard Enterprise Aruba Instant On 1930 Managed L2+ Gigabit Ethernet (10/100/1000) White 1U Power over Ethernet (PoE)
Hewlett Packard Enterprise Aruba Instant On 1930, Managed, L2+, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, 1U.
More infoBrand: HEWLETT PACKARD ENTERPRISE
252,00 €Stock available: 0 units.
Unavailable
SKU:
84892
PRC:
290922
EAN:
190017355207
PN:
jl681a
Description
The Hewlett Packard Enterprise Aruba Instant On 1930 managed switch, in white, organises professional networks with its 8 Gigabit Ethernet (10/100/1000) ports and 2 SFP combo ports. Its management is managed L2+ type, and includes web-based management and quality of service (QoS) support. It offers full duplex function, flow control, rate limiting, link aggregation and port mirroring, as well as spanning tree protocol. It manages up to 256 VLANs in accordance with IEEE 802.1Q, 802.1p, 802.1x, 802.3, 802.3ab, 802.3u and 802.3x standards. Compatible copper ethernet cabling covers 10BASE-T, 100BASE-TX and 1000BASE-T. Its dimensions are 254 x 43.9 x 254 mm (width x height x depth) and it weighs 1.16 kg.
Specifications
Management features
- Switch type: Managed
- Switch layer: L2+
- Quality of Service (QoS) support: Yes
- Web-based management: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 8
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Combo SFP ports quantity: 2
Network
- Networking standards: IEEE 802.1Q,IEEE 802.1p,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x
- 10G support: No
- Copper ethernet cabling technology: 10BASE-T,100BASE-TX,1000BASE-T
- Port mirroring: Yes
- Full duplex: Yes
- Flow control support: Yes
- Link aggregation: Yes
- Rate limiting: Yes
- Auto MDI/MDI-X: Yes
- Spanning tree protocol: Yes
- Auto-sensing: Yes
- VLAN support: Yes
- Number of VLANs: 256
Data transmission
- Switching capacity: 20 Gbit/s
- Throughput: 14.8 Mpps
- MAC address table: 8000 entries
- Latency (10-100 Mbps): 5.2 µs
- Latency (1 Gbps): 3 µs
- Jumbo frames support: Yes
- Packet buffer memory: 1.5 MB
Security
- IGMP snooping: Yes
- SSH/SSL support: Yes
Design
- Rack mounting: Yes
- Stackable: No
- Form factor: 1U
- Product colour: White
Performance
- Processor model: ARM Cortex-A9
- Processor frequency: 800 MHz
- Memory type: SDRAM
- Internal memory: 512 MB
- Flash memory: 256 MB
Power
- Power supply included: Yes
- AC input voltage: 100 - 240 V
- AC input frequency: 50/60 Hz
- Power consumption (max): 150.2 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
- Total Power over Ethernet (PoE) budget: 124 W
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 15 - 95%
- Storage relative humidity (H-H): 15 - 95%
Weight & dimensions
- Width: 254 mm
- Depth: 254 mm
- Height: 43.9 mm
- Weight: 1.16 kg
