Description

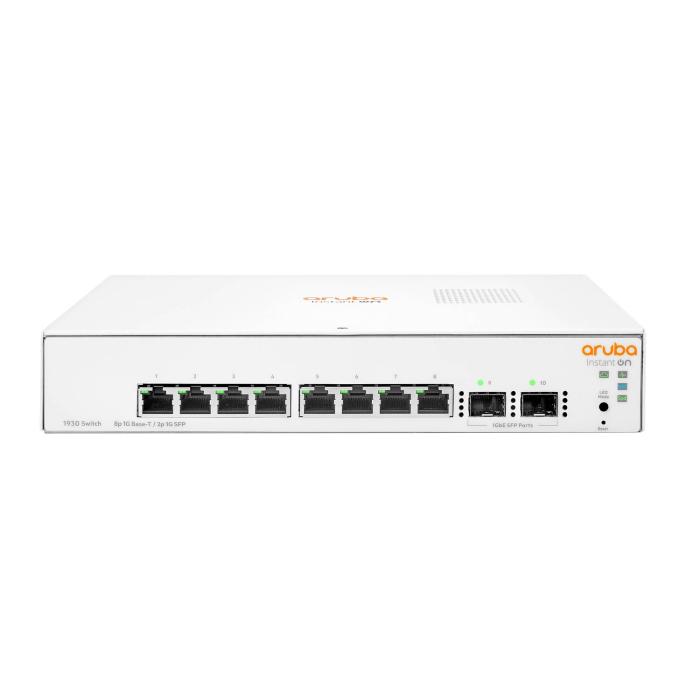

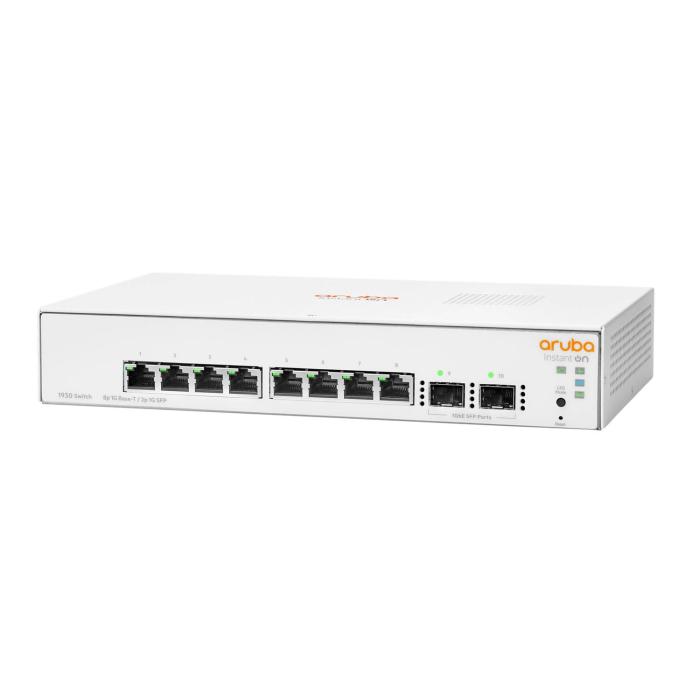

Hewlett Packard Enterprise Aruba Instant On 1930, Managed, L2+, Gigabit Ethernet (10/100/1000), Full duplex, Rack mounting, 1U

Specifications

Management features


  • Switch type: Managed
  • Switch layer: L2+
  • Quality of Service (QoS) support: Yes
  • Web-based management: Yes

Ports & interfaces


  • Basic switching RJ-45 Ethernet ports quantity: 8
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • SFP module slots quantity: 2

Network


  • Networking standards: IEEE 802.1Q,IEEE 802.1p,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x
  • 10G support: No
  • Copper ethernet cabling technology: 10BASE-T,100BASE-TX,1000BASE-T
  • Port mirroring: Yes
  • Full duplex: Yes
  • Flow control support: Yes
  • Link aggregation: Yes
  • Rate limiting: Yes
  • Auto MDI/MDI-X: Yes
  • Spanning tree protocol: Yes
  • Auto-sensing: Yes
  • VLAN support: Yes
  • Number of VLANs: 256

Data transmission


  • Switching capacity: 20 Gbit/s
  • Throughput: 14.8 Mpps
  • MAC address table: 8000 entries
  • Latency (10-100 Mbps): 5.2 µs
  • Latency (1 Gbps): 3 µs
  • Jumbo frames support: Yes
  • Packet buffer memory: 1.5 MB

Security


  • IGMP snooping: Yes
  • SSH/SSL support: Yes

Design


  • Rack mounting: Yes
  • Stackable: No
  • Form factor: 1U
  • Product colour: White

Performance


  • Processor model: ARM Cortex-A9
  • Processor frequency: 800 MHz
  • Memory type: SDRAM
  • Internal memory: 512 MB
  • Flash memory: 256 MB

Power


  • Power supply included: Yes
  • AC input voltage: 100 - 240 V
  • AC input frequency: 50/60 Hz
  • Power consumption (max): 11 W

Power over Ethernet (PoE)


  • Power over Ethernet (PoE): No

Operational conditions


  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -40 - 70 °C
  • Operating relative humidity (H-H): 15 - 95%
  • Storage relative humidity (H-H): 15 - 95%

Weight & dimensions


  • Width: 254 mm
  • Depth: 159.5 mm
  • Height: 43.9 mm
  • Weight: 820 g
