Description
Specifications

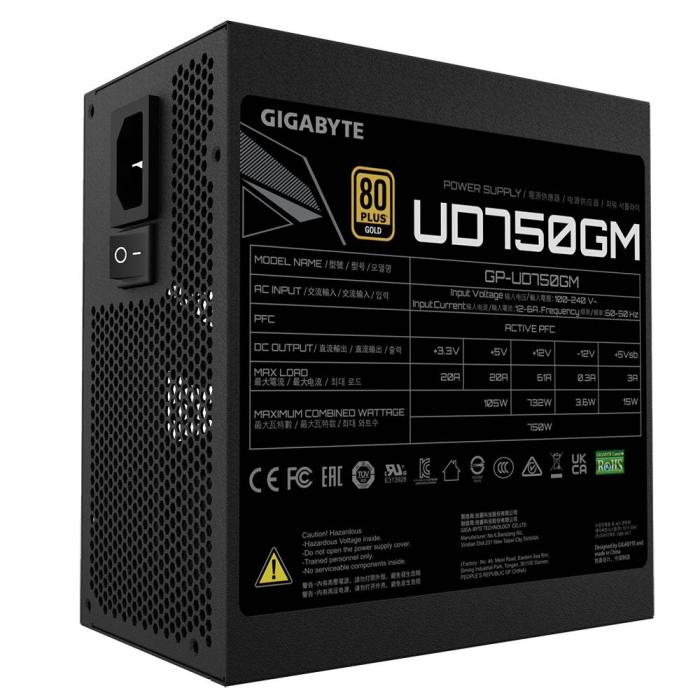

Power
- Total power: 750 W
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Input current: 12 A
- Power Factor Correction (PFC) type: Active
- Combined power (+3.3V): 105 W
- Combined power (+12V): 732 W
- Combined power (+5V): 105 W
- Combined power (-12V): 3.6 W
- Combined power (+5Vsb): 15 W
- Max output current (+3.3V): 20 A
- Max output current (+12V): 61 A
- Max output current (+5V): 20 A
- Max output current (-12V): 2.3 A
- Max output current (+5Vsb): 3 A
- Hold time: 16 ms
- Efficiency: 90%
- Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Ports & interfaces

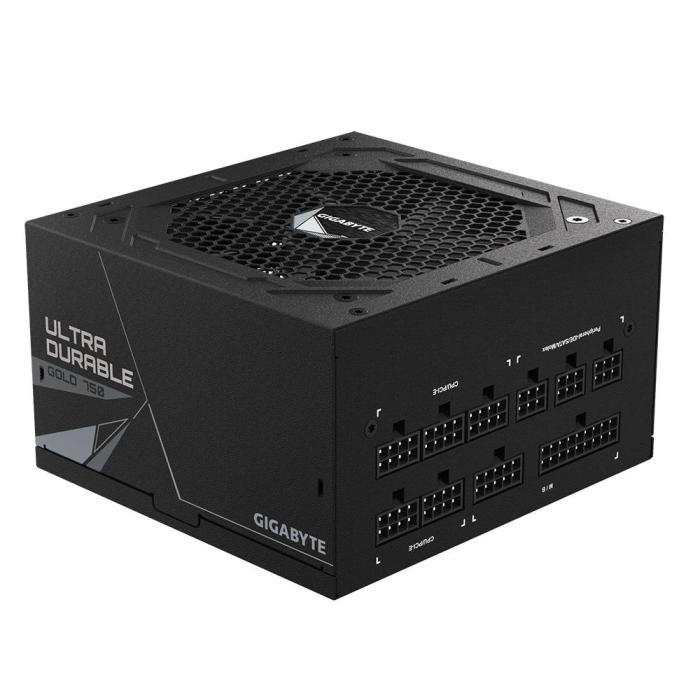

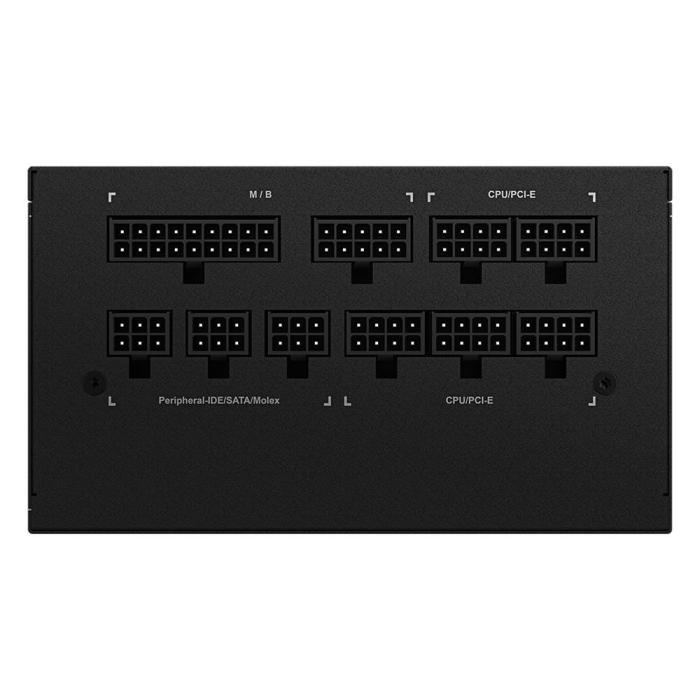

- Motherboard power connector: 20+4 pin ATX
- Motherboard power cable length: 61 cm
- Number of SATA power connectors: 8
- SATA power cable length: 150, 300, 450, 600 mm
- Peripheral (Molex) power connectors (4-pin): 3
- Peripheral (Molex) power cable length: 120, 500 mm
- EPS power connector (4+4 pin): Yes
- PCI Express power connectors (6+2 pin): 4
- PCI Express power cable length: 60 cm
- CPU power connector (4+4 pin): Yes
- CPU power cable length: 60 cm
- ATX power connector (20+4 pin): Yes
- Floppy drive power connector: 1
- Floppy disk drive connector: Yes
- Floppy disk drive cable length: 15 cm
- Cabling type: Fully-Modular
Performance
- 80 PLUS certification: 80 PLUS Gold
- Purpose: PC
- Power supply unit (PSU) form factor: ATX
- ATX version: 2.31
- Bearing technology: HYB
- Mean time between failures (MTBF): 100000 h
Design
- Product colour: Black
- Cooling type: Active

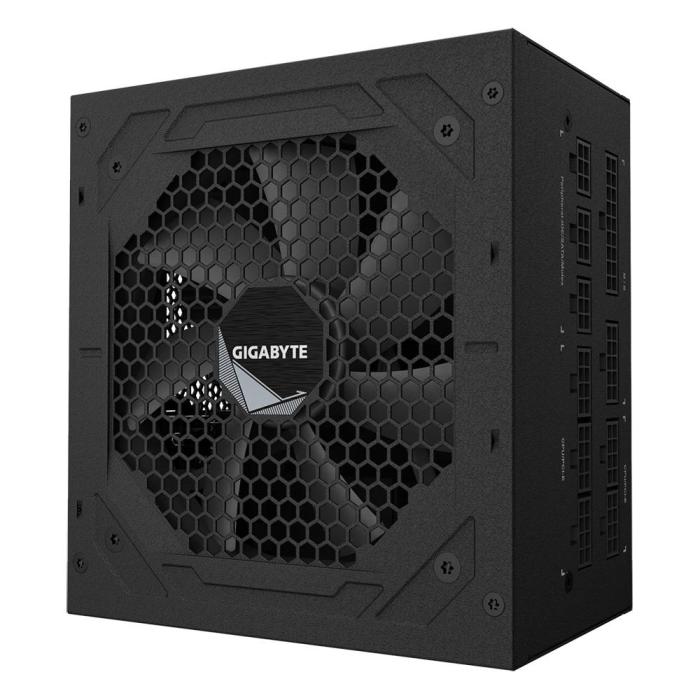

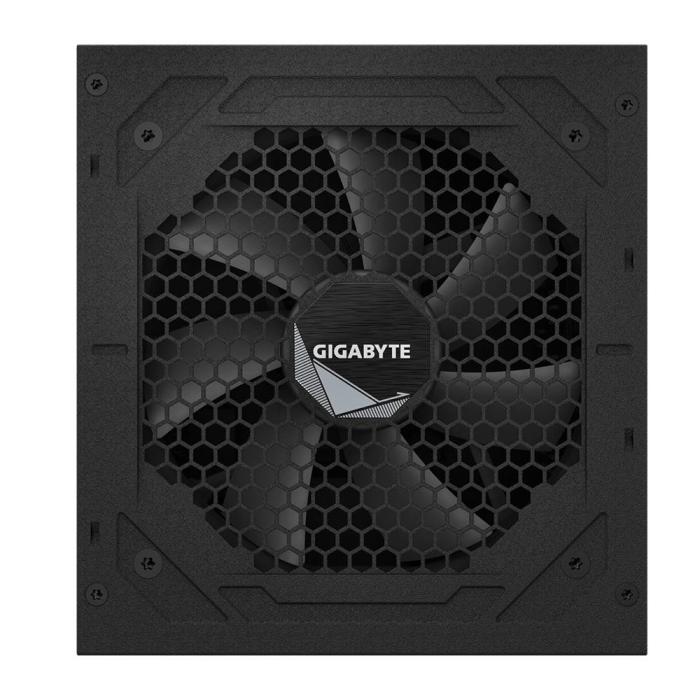

- Fan diameter: 12 cm
- Number of fans: 1 fan(s)
- Fan location: Top
- On/off switch: Yes
Packaging content
- Cables included: CPU, PCIe, Peripheral (Molex), SATA
Weight & dimensions
- Width: 150 mm
- Depth: 140 mm
- Height: 86 mm
Logistics data
- Harmonized System (HS) code: 84733020
