Description

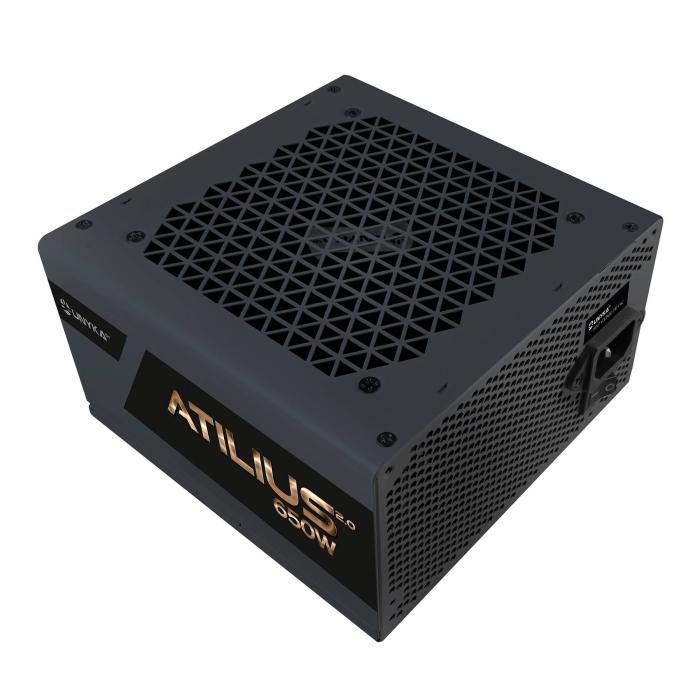

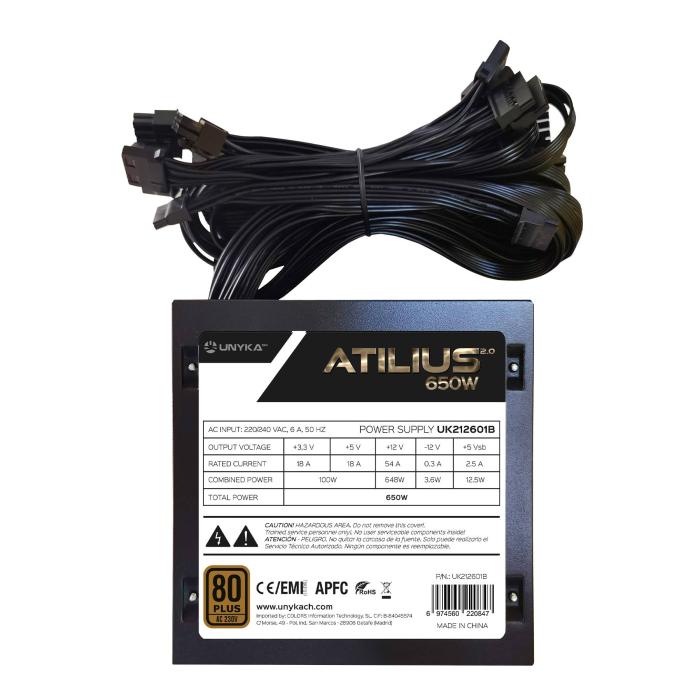

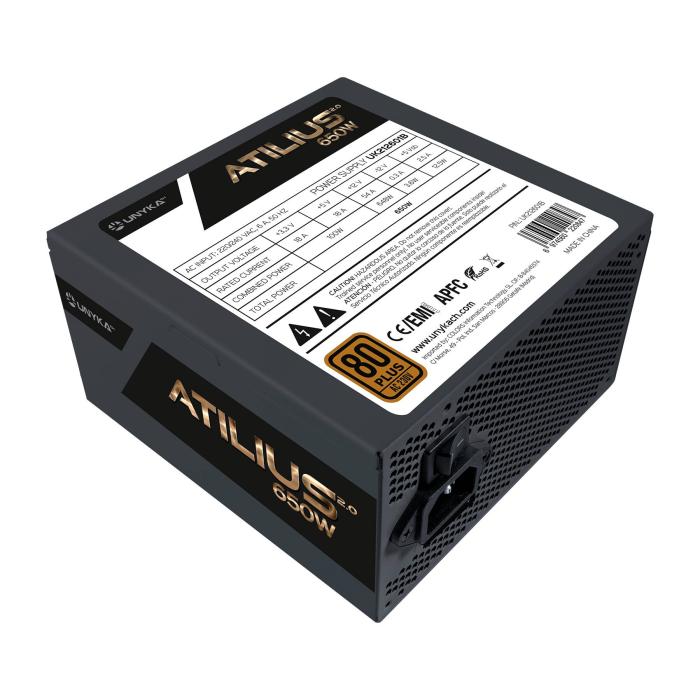

The UNYKAch Atilius 2.0 Black is a 650 W ATX power supply unit with 80+ Bronze certification, in black and weighing 1.5 kg. Its dimensions are 150 x 85 x 150 mm (width x height x depth), a standard format that fits most PC cases. It features active power factor correction and supports an AC input voltage of 100 to 240 V with a frequency of 50/60 Hz. The +12V rail delivers a maximum current of 54.5 A, which translates to a combined power of 648 W, while the +3.3V and +5V rails offer 18 A each with 100 W combined. Motherboard power is supplied via a 20+4 pin ATX connector, and it includes four 6+2 pin PCI Express connectors and a 4+4 pin CPU connector. It has protection features against overcurrent, overvoltage, undervoltage and short circuit.
Specifications
Power
- Total power: 650 W
- AC input voltage: 100 - 240 V
- AC input frequency: 50/60 Hz
- Power Factor Correction (PFC) type: Active
- Combined power (+3.3V): 100 W
- Combined power (+12V): 648 W
- Combined power (+5V): 100 W
- Combined power (-12V): 3.6 W
- Combined power (+5Vsb): 12.5 W
- Max output current (+3.3V): 18 A
- Max output current (+12V): 54.5 A
- Max output current (+5V): 18 A
- Max output current (-12V): 0.3 A
- Max output current (+5Vsb): 2.5 A
- Power protection features: Over power, Over voltage, Under voltage, Short circuit
Ports & interfaces
- Motherboard power connector: 20+4 pin ATX
- Motherboard power cable length: 55 cm
- SATA power cable length: 150, 500 mm
- Peripheral (Molex) power cable length: 150, 500 mm
- PCI Express power connectors (6+2 pin): 4
- CPU power connector (4+4 pin): Yes
- ATX power connector (20+4 pin): Yes
- Cabling type: Non-Modular
Performance
- 80 PLUS certification: 80 PLUS Bronze
- Purpose: PC
- Power supply unit (PSU) form factor: ATX
- ATX version: 2.3
Design
- Product colour: Black
- Cooling type: Active
- Fan diameter: 12 cm
- Number of fans: 1 fan(s)
- Fan location: Top
- On/off switch: Yes
Certificates
- Certification: ROHS / CE / 80+ Bronze
Weight & dimensions
- Width: 150 mm
- Depth: 150 mm
- Height: 85 mm
- Weight: 1.5 kg
Packaging data
- Package width: 195 mm
- Package depth: 290 mm
- Package height: 85 mm
- Package weight: 1.8 kg
- Package type: Box
Logistics data
- Country of origin: China
