Description

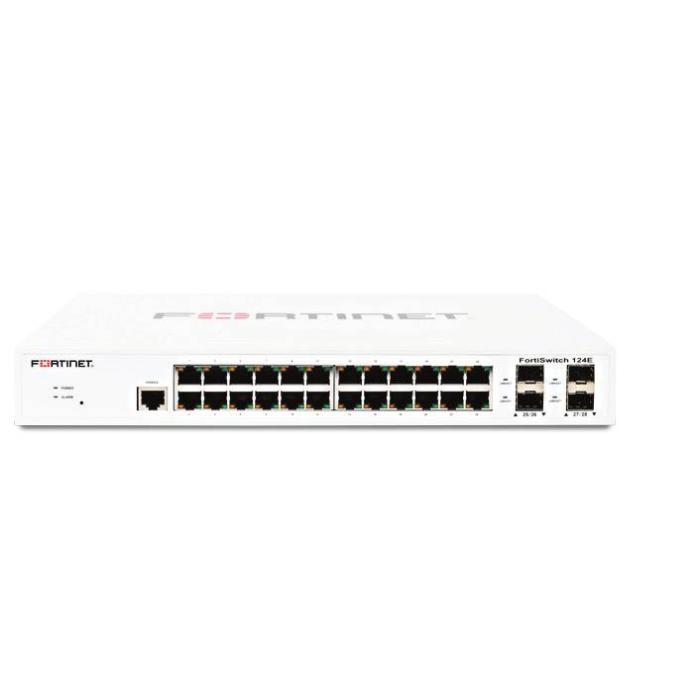

Managed layer 2 switch in 1U white format, the FortiSwitch 124E from FORTINET offers 24 Gigabit Ethernet ports (10/100/1000) and 4 SFP slots for fibre links, all with an RJ-45 console port for direct local administration. This model includes advanced features such as VLAN tagging up to 4096, storm control, port mirroring, link aggregation, auto-negotiation and full duplex mode, as well as support for spanning tree protocol and flow control. Its design allows easy integration into standard racks, ideal for expanding the network of an office or corporate environment with traffic segmentation and monitoring needs.
Specifications
Management features
- Switch type: Managed
- Switch layer: L2
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 24
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Gigabit Ethernet (copper) ports quantity: 24
- SFP module slots quantity: 4
- Console port: RJ-45
Network
- Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
- 10G support: No
- Port mirroring: Yes
- Full duplex: Yes
- Flow control support: Yes
- Link aggregation: Yes
- Broadcast storm control: Yes
- Auto MDI/MDI-X: Yes
- Spanning tree protocol: Yes
- Auto-negotiation: Yes
- VLAN support: Yes
- Virtual LAN features: Tagged VLAN
- Number of VLANs: 4096
Data transmission
- Switching capacity: 56 Gbit/s
- Forwarding rate: 83 Mpps
- MAC address table: 8000 entries
- Store-and-forward: Yes
- Latency (1 Gbps): 4 µs
- Jumbo frames support: Yes
- Packet buffer memory: 0.512 MB
Security
- DHCP features: DHCP client, DHCP relay, DHCP snooping
Multicast features
- Multicast support: Yes
Protocols
- Management protocols: HTTP / HTTPS, SNMP v1/v2c/v3, Telnet / SSH
Design
- Rack mounting: Yes
- Form factor: 1U
- Product colour: White
- LED indicators: Yes
Performance
- Memory type: DDR3-SDRAM
- Internal memory: 256 MB
- Flash memory: 32 MB
Power
- Power supply included: Yes
- Redundant power supply (RPS) support: No
- Number of power supply units: 1
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Power consumption (typical): 15.83 W
- Power consumption (max): 17.79 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): No
Operational conditions
- Operating temperature (T-T): 0 - 45 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Heat dissipation: 54 BTU/h
Weight & dimensions
- Width: 330 mm
- Depth: 209 mm
- Height: 44 mm
- Weight: 2.13 kg
Certificates
- Certification: FCC, CE, RCM, VCCI, BSMI, UL, CB, RoHS2
