Fortinet L2+ managed POE switch with 24GE +4SFP, 12 port POE with max 185W limit and smart fan temperature control

Return

Few units

Product 1 image

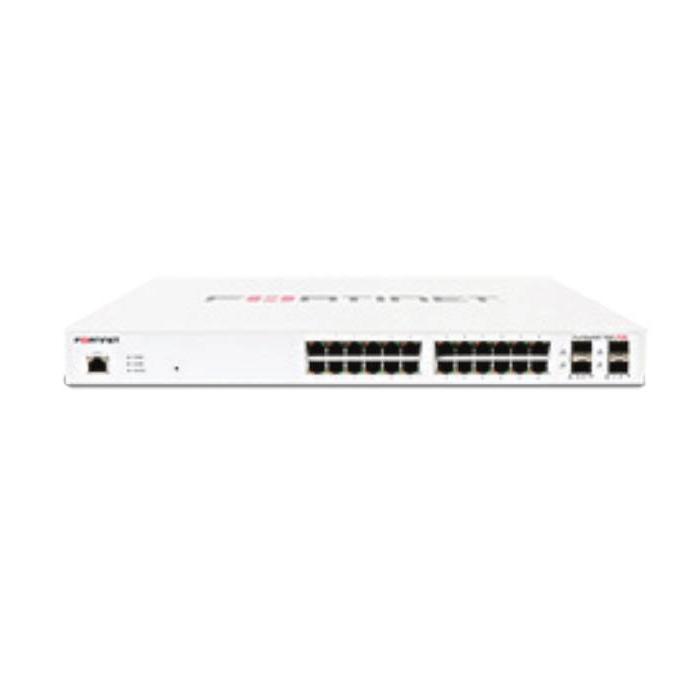

Fortinet L2+ managed POE switch with 24GE +4SFP, 12 port POE with max 185W limit and smart fan temperature control

$759.84

$759.84 without VAT

Amount

Brand: FORTINET

SKU: 105711 PRC: 522244 EAN: 842382130902 PN: fs-124e-poe

Description

Specifications

Management features

Switch type: Managed
Switch layer: L2

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 24
SFP module slots quantity: 4
Console port: RJ-45

Network

Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
10G support: No
Port mirroring: Yes
Full duplex: Yes
Flow control support: Yes
Link aggregation: Yes
Broadcast storm control: Yes
Auto MDI/MDI-X: Yes
Spanning tree protocol: Yes
Auto-negotiation: Yes
VLAN support: Yes
Virtual LAN features: Tagged VLAN
Number of VLANs: 4096

Data transmission

Switching capacity: 56 Gbit/s
Forwarding rate: 83 Mpps
MAC address table: 8000 entries
Store-and-forward: Yes
Latency (1 Gbps): 4 µs
Jumbo frames support: Yes
Packet buffer memory: 0.512 MB

Security

DHCP features: DHCP client, DHCP relay, DHCP snooping

Multicast features

Multicast support: Yes

Protocols

Management protocols: HTTP / HTTPS, SNMP v1/v2c/v3, Telnet / SSH

Design

Rack mounting: Yes
Form factor: 1U
Product colour: White
LED indicators: Yes

Performance

Memory type: DDR3-SDRAM
Internal memory: 256 MB
Flash memory: 32 MB

Power

Power supply included: Yes
Redundant power supply (RPS) support: No
Number of power supply units: 1
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Power consumption (typical): 202.78 W
Power consumption (max): 205.45 W

Power over Ethernet (PoE)

Power over Ethernet (PoE): Yes
Power over Ethernet (PoE) ports quantity: 12
Total Power over Ethernet (PoE) budget: 185 W

Operational conditions

Operating temperature (T-T): 0 - 45 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Heat dissipation: 60.67 BTU/h

Weight & dimensions

Width: 440 mm
Depth: 309 mm
Height: 44 mm
Weight: 5.03 kg

Certificates

Certification: FCC, CE, RCM, VCCI, BSMI, UL, CB, RoHS2

Logistics data

Harmonized System (HS) code: 85176990
