Description

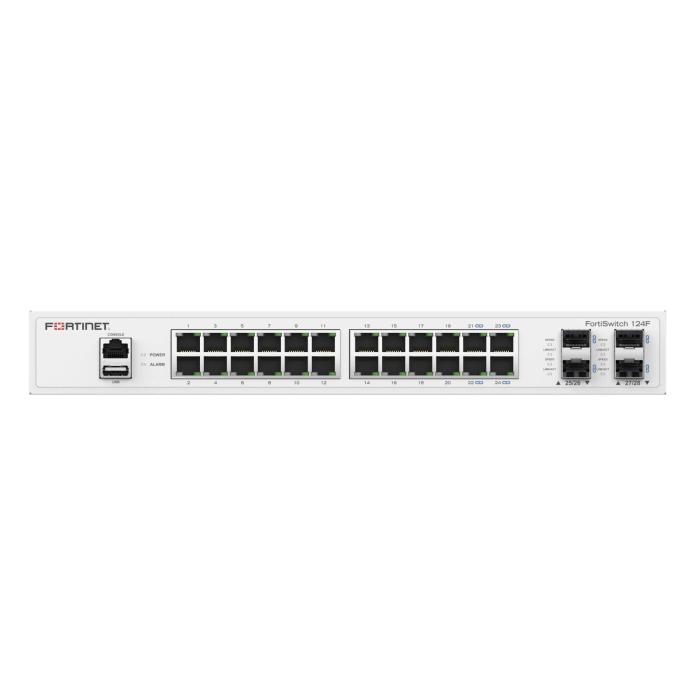

This Fortinet managed L2 switch, in a 1U format with a white finish, brings together 24 Gigabit Ethernet RJ-45 ports to connect your office or branch network at high speed, complemented by 4 SFP+ slots supporting 10G links. With a switching capacity of 128 Gbit/s and a throughput of 190 Mpps, it easily handles heavy traffic while maintaining a MAC address table of 32,000 entries. Its advanced management includes support for up to 4,000 VLANs, access control lists (ACL) with 768 rules, spanning tree protocol, and link aggregation to optimise security and bandwidth.
Specifications
Management features
- Switch type: Managed
- Switch layer: L2
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 24
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Gigabit Ethernet (copper) ports quantity: 24
- SFP+ module slots quantity: 4
- Console port: RJ-45
Network
- 10G support: Yes
- Link aggregation: Yes
- Spanning tree protocol: Yes
- VLAN support: Yes
- Number of VLANs: 4000
Data transmission
- Switching capacity: 128 Gbit/s
- Throughput: 190 Mpps
- MAC address table: 32000 entries
- Packet buffer memory: 2 MB
Security
- Access Control List (ACL): Yes
- Access Control List (ACL) rules: 768
Design
- Rack mounting: Yes
- Form factor: 1U
- Product colour: White
Performance
- Memory type: DDR3-SDRAM
- Internal memory: 512 MB
- Flash memory: 64 MB
- Mean time between failures (MTBF): 87660 h
Power
- Redundant power supply (RPS) support: No
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Power consumption (typical): 24.8 W
- Power consumption (max): 26.3 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): No
Operational conditions
- Operating temperature (T-T): 0 - 45 °C
- Storage temperature (T-T): -20 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Heat dissipation: 89.683 BTU/h
Weight & dimensions
- Width: 440 mm
- Depth: 260 mm
- Height: 44 mm
- Weight: 3.56 kg
Certificates
- Certification: FCC, CE, RCM, VCCI, BSMI, UL, CB, RoHS2
Logistics data
- Harmonized System (HS) code: 85176990
