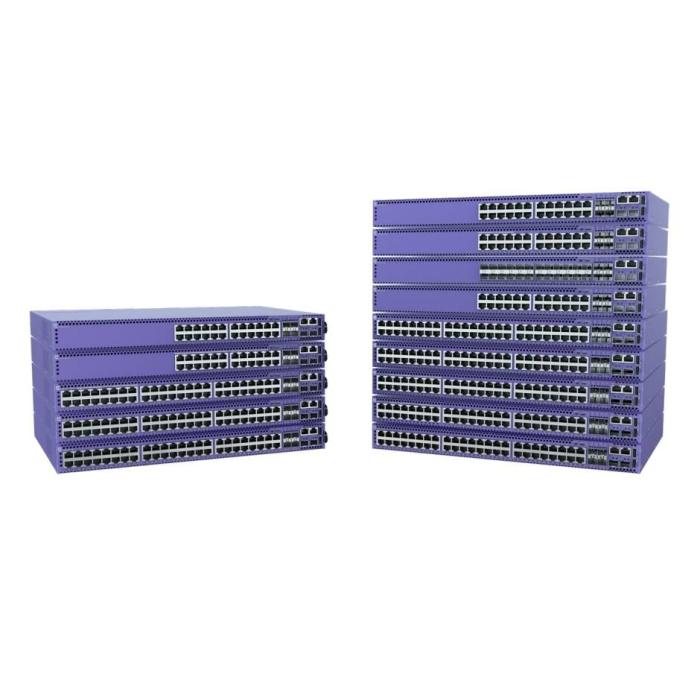

Extreme networks 5420M-48W-4YE network switch Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Purple
More info
Brand: EXTREME NETWORKS
9,165,00 €Stock available: 0 units.
Unavailable
SKU:
94535
PRC:
378520
EAN:
644728051915
PN:
5420m-48w-4ye
Description
Managed L2/L3 switch with purple finish, the Extreme Networks 5420M-48W-4YE offers 48 Gigabit Ethernet ports with Power over Ethernet (PoE) support and 4 SFP28 uplink ports for high-speed connections. Its web-based, CLI, and cloud management allows flexible configuration, while ARP inspection and Quality of Service (QoS) support optimise your network traffic. With 4094 VLANs, 12000 IPv4 routes, and 6000 IPv6 routes, it handles demanding enterprise environments, and its two USB 2.0 ports and RJ-45/Micro-USB console facilitate local maintenance and configuration transfer.
Specifications
Management features
- Switch type: Managed
- Switch layer: L2/L3
- Quality of Service (QoS) support: Yes
- Web-based management: Yes
- Cloud-managed: Yes
- ARP inspection: Yes
- Configuring Location Settings (CLI): Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 48
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Uplink ports quantity: 4
- Console port: RJ-45/Micro-USB
- SFP28 ports quantity: 4
- USB 2.0 ports quantity: 2
Network
- Networking standards: IEEE 802.3bt
- 10G support: Yes
- Copper ethernet cabling technology: 1000BASE-T
- Full duplex: Yes
- IP routing: Yes
- Half duplex: Yes
- IP address table: 24000
- Ethernet LAN data rates: 10,100,1000 Mbit/s
- Auto-sensing: Yes
- IPv4 routes: 12000
- IPv6 routes: 6000
- VLAN support: Yes
- Number of VLANs: 4094
Data transmission
- Switching capacity: 376 Gbit/s
- Forwarding rate: 279.7 Mpps
- MAC address table: 64000 entries
- Number of queues: 8
- Number of IP interfaces: 1533
Security
- Access Control List (ACL): Yes
- Access Control List (ACL) egress: 1024
- Access Control List (ACL) ingress: 18000
Multicast features
- Multicast support: Yes
- IPv4 multicast entries: 12000
Protocols
- Supported network protocols: IPv4, IPv6
Design
- Rack mounting: Yes
- Stackable: Yes
- Product colour: Purple
Performance
- Noise level: 52.7 dB
Power
- Power source: AC
- Power supply included: Yes
- Number of power supply units: 1
- AC input voltage: 100 - 240 V
- AC input frequency: 47/63 Hz
- Power consumption (max): 3090 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
- Power over Ethernet (PoE) ports quantity: 48
- Power over Ethernet (PoE) power per port: 90 W
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 10 - 95%
- Storage relative humidity (H-H): 10 - 95%
- Operating altitude: 0 - 3000 m
- Heat dissipation: 716 BTU/h
Weight & dimensions
- Width: 441 mm
- Depth: 330 mm
- Height: 44 mm
- Weight: 4.73 kg
Certificates
- Certification: CISPR 32, Class A (International Emissions) AS/NZS CISPR32 CISPR 24 Class A (International Immunity) IEC 61000-4-2 / EN 61000-4-
