Description

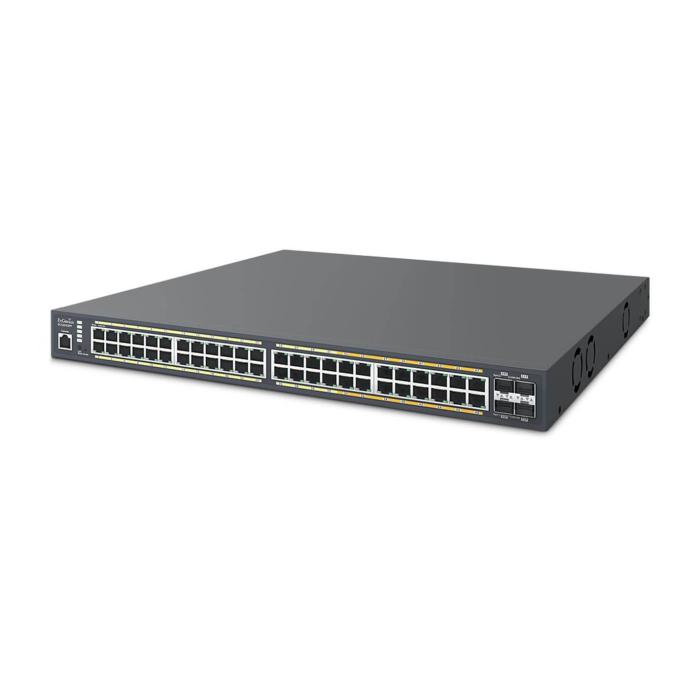

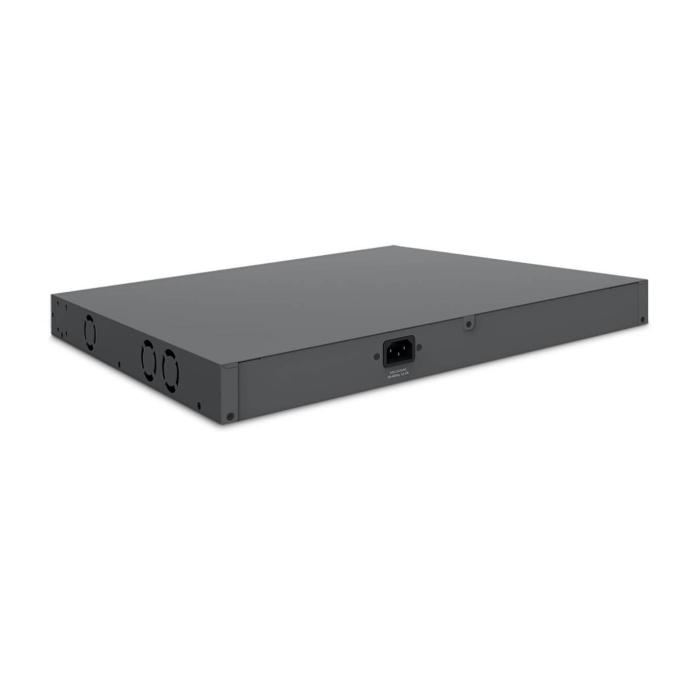

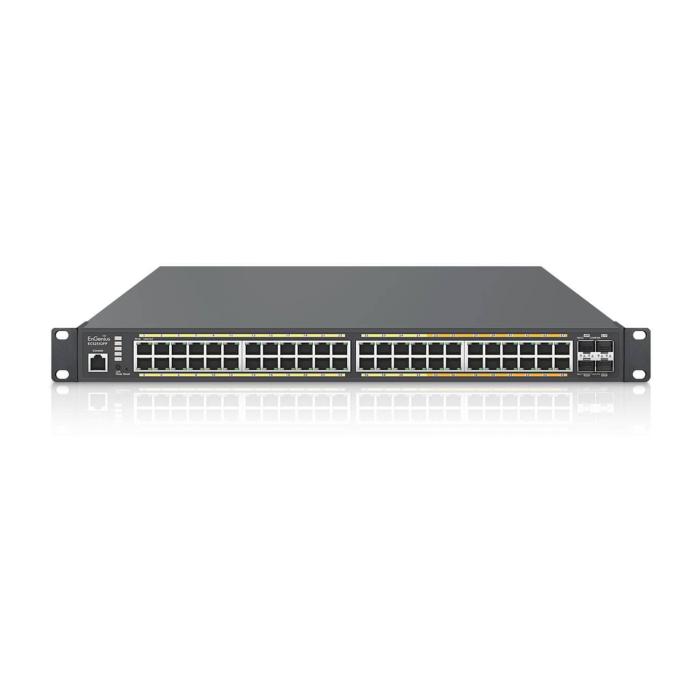

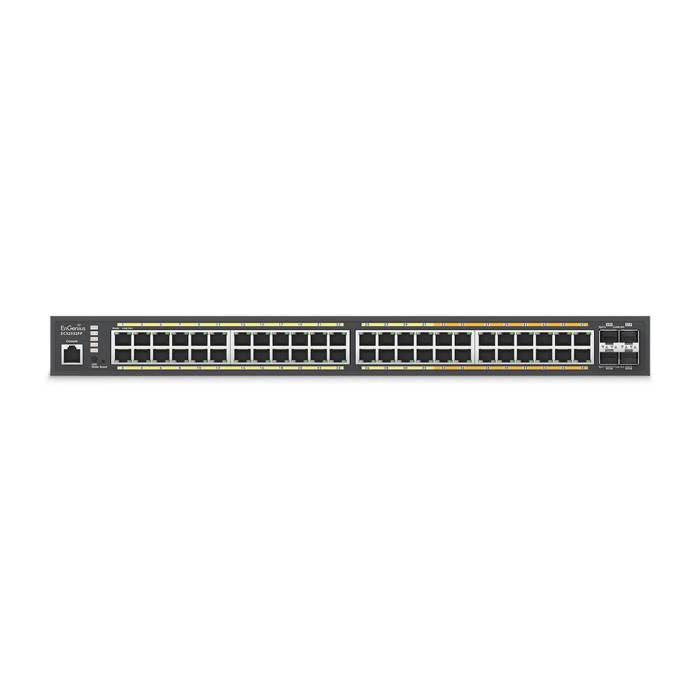

The EnGenius ECS2552FP is an L2+ managed switch with 32 Gigabit Ethernet ports, of which 24 are basic RJ-45 switching ports and 16 support 2.5G Ethernet over copper, plus 4 installed SFP+ modules. It offers a switching capacity of 224 Gbit/s, VLAN support, QoS, flow control and full duplex operation. It incorporates spanning tree protocol, link aggregation and ARP inspection, and complies with the IEEE 802.3, 802.3ab, 802.3bz, 802.3u and 802.3x standards. Its management can be carried out via the cloud, which facilitates centralised network management. It has a compact format with dimensions of 310 x 44 x 440 mm (width x height x depth), a weight of 4.87 kg and a black colour.
Specifications
Management features
- Switch type: Managed
- Switch layer: L2+
- Quality of Service (QoS) support: Yes
- Cloud-managed: Yes
- ARP inspection: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 24
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Gigabit Ethernet (copper) ports quantity: 32
- 2.5G Ethernet (copper) ports quantity: 16
- Installed SFP+ modules quantity: 4
Network
- Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
- 10G support: No
- Full duplex: Yes
- Flow control support: Yes
- Link aggregation: Yes
- Spanning tree protocol: Yes
- VLAN support: Yes
Data transmission
- Switching capacity: 224 Gbit/s
- MAC address table: 32000 entries
- Jumbo frames support: Yes
- Jumbo frames: 10000
Multicast features
- Multicast support: Yes
Design
- Rack mounting: Yes
- Product colour: Black
- LED indicators: Yes
Power
- Power source: AC
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
- Power over Ethernet (PoE) ports quantity: 48
- Total Power over Ethernet (PoE) budget: 740 W
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
- Operating relative humidity (H-H): 5 - 95%
Weight & dimensions
- Width: 310 mm
- Depth: 440 mm
- Height: 44 mm
- Weight: 4.87 kg
Packaging data
- Package width: 429 mm
- Package depth: 548 mm
- Package height: 105 mm
- Package weight: 5.98 kg
