Description

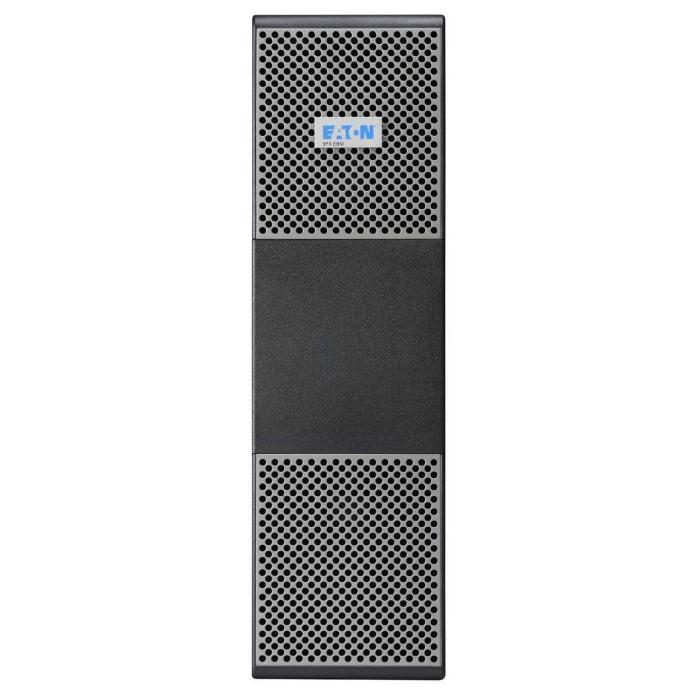

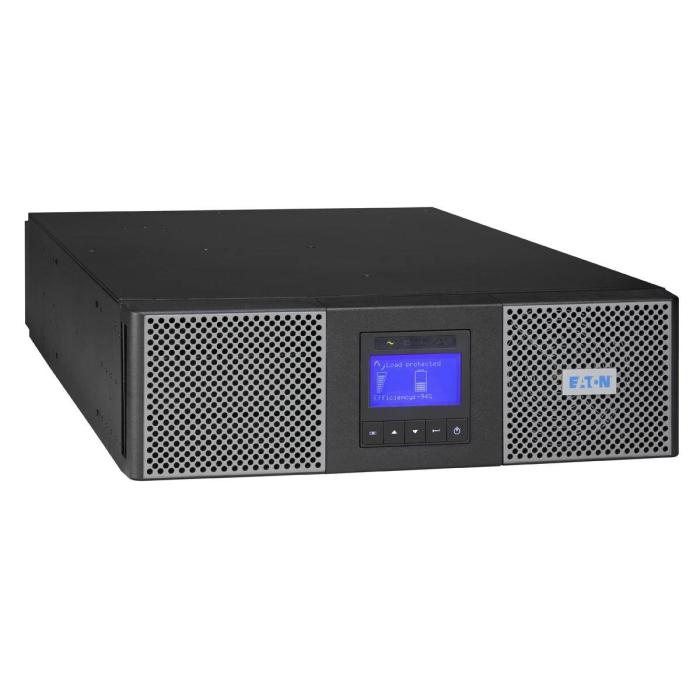

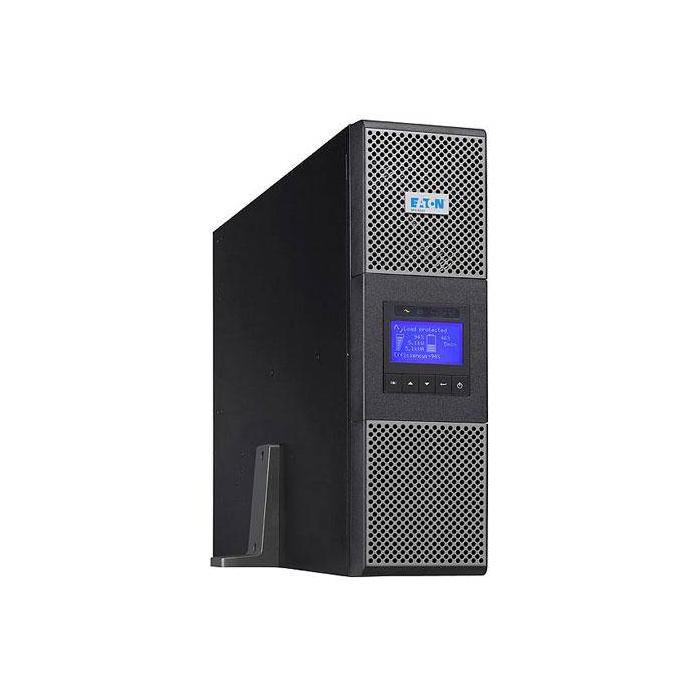

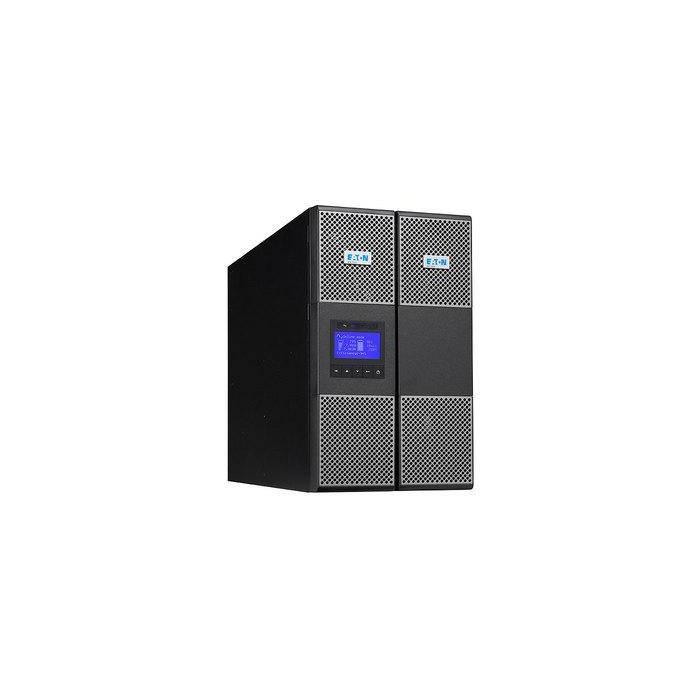

The Eaton 9PX5KIRTN is a double-conversion online uninterruptible power supply (UPS) offering 5 kVA and 4500 W of power, with 11 AC outlets distributed among C13, C19 couplers and terminals. With 94% efficiency and a 0.9 power factor, this UPS delivers a pure sine wave with a total output harmonic distortion of 2%. Its 3:1 crest factor makes it ideal for loads with high current peaks, while its 45 dB noise level is discreet for office or technical room environments. It operates with single-phase input between 176 V and 276 V, and an input frequency of 40/70 Hz, producing a stable output of 200-240 V at 50/60 Hz.
Specifications
Features
- UPS topology: Double-conversion (Online)
- Output power capacity: 5 kVA
- Output power: 4500 W
- Waveform: Pure sine
- Input operation voltage (min): 176 V
- Input operation voltage (max): 276 V
- Input frequency: 40/70 Hz
- Output operation voltage (min): 200 V
- Output operation voltage (max): 240 V
- Output frequency: 50/60 Hz
- Number of input phases: 1
- Efficiency: 94%
- Power factor: 0.9
- Crest factor: 3:1
- Output voltage Total Harmonic Distortion (THD): 2%
- Input current Total Harmonic Distortion (THD): 5%
- Noise level: 45 dB
Ports & interfaces
- AC outlet types: C13 coupler, C19 coupler, Terminal
- Power plug: Terminal
- AC outlets quantity: 11 AC outlet(s)
- USB port: Yes
- USB 2.0 ports quantity: 1
- RS-232 ports: 1
Battery
- Battery technology: Sealed Lead Acid (VRLA)
- Typical backup time at half load: 13 min
- Hot-swap battery: Yes
- Automatic battery test: Yes
Design
- Form factor: Rackmount/Tower
- Rack capacity: 3U
- Product colour: Black
- Display type: LCD
- LED indicators: Yes
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
Certificates
- Certification: IEC/EN 62040-1, UL 1778, IEC/EN 62040 -2, FCC Class A, IEC/EN 62040-3 (Performance), CE, CB report (TUV), UL
Packaging content
- Rack mount kit: Yes
Safety regulation & standards
- Safety: IEC/EN 62040-1, UL 1778
Sustainability
- Sustainability certificates: ENERGY STAR
Weight & dimensions
- Width: 440 mm
- Depth: 685 mm
- Height: 130 mm
- Weight: 48 kg
Packaging data
- Management card included: Yes
- Bundled software: Intelligent Power Software suite
Logistics data
- Harmonized System (HS) code: 85078000
Other features
- Interface: USB, RS232
- Nominal output voltage: 230 V
- Nominal input voltage: 230 V
