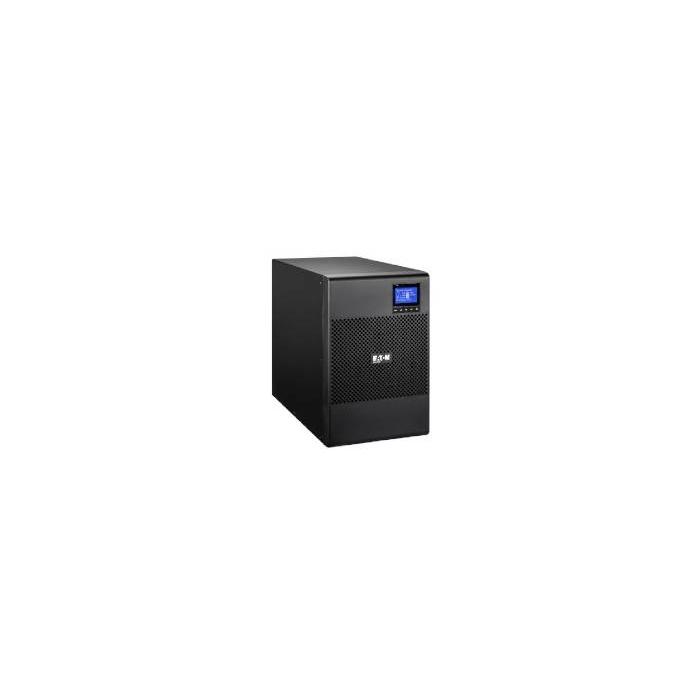

Description
The Eaton 9SX 3 kVA 2700 W is an online double-conversion UPS that delivers a pure sine wave to protect your critical equipment, with a power factor of 0.9 and nine AC outlets distributed between C13 and C19 couplers. It accepts a single-phase input with a voltage range of 200 to 276 V and frequency of 40 to 70 Hz, providing an output between 200 and 240 V with a stable frequency of 50/60 Hz. Its RS-232 interface allows serial monitoring, while its noise level is 45 dB and it does not include ECO mode. This model supports efficient operation within the stated parameters, without optional extras.
Specifications
Features
- UPS topology: Double-conversion (Online)
- Output power capacity: 3 kVA
- Output power: 2700 W
- Waveform: Pure sine
- Input operation voltage (min): 200 V
- Input operation voltage (max): 276 V
- Input frequency: 40/70 Hz
- Output operation voltage (min): 200 V
- Output operation voltage (max): 240 V
- Output frequency: 50/60 Hz
- Number of input phases: 1
- Number of output phases: 1
- Power factor: 0.9
- ECO mode: No
- Noise level: 45 dB
Ports & interfaces
- AC outlet types: C13 coupler, C19 coupler
- Power plug: C20 coupler
- AC outlets quantity: 9 AC outlet(s)
- USB port: Yes
- USB 2.0 ports quantity: 1
- Serial interface: Yes
- Serial interface type: RS-232
- RS-232 ports: 1
Battery
- Battery technology: Sealed Lead Acid (VRLA)
- Typical backup time at half load: 15.5 min
- Hot-swap battery: Yes
- Automatic battery test: Yes
Design
- Form factor: Tower
- Product colour: Black
- Display type: LCD
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
Certificates
- Certification: IEC/EN 62040-1, UL 1778, CSA 22.2, IEC/EN 62040 -2 , FCC Class B, CISPR22 Class B, CE /CB report (TUV) / cULus / EAC / RCM / BIS
Safety regulation & standards
- Safety: IEC/EN 62040-1, UL 1778, CSA 22.2
Weight & dimensions
- Width: 214 mm
- Depth: 412 mm
- Height: 346 mm
- Weight: 33.4 kg
Packaging data
- Management card included: No
- Bundled software: Intelligent Power Software suite
Logistics data
- Harmonized System (HS) code: 85078000
Other features
- Input connection type: IEC C20
- Nominal output voltage: 230 V
- Nominal input voltage: 230 V
