Description

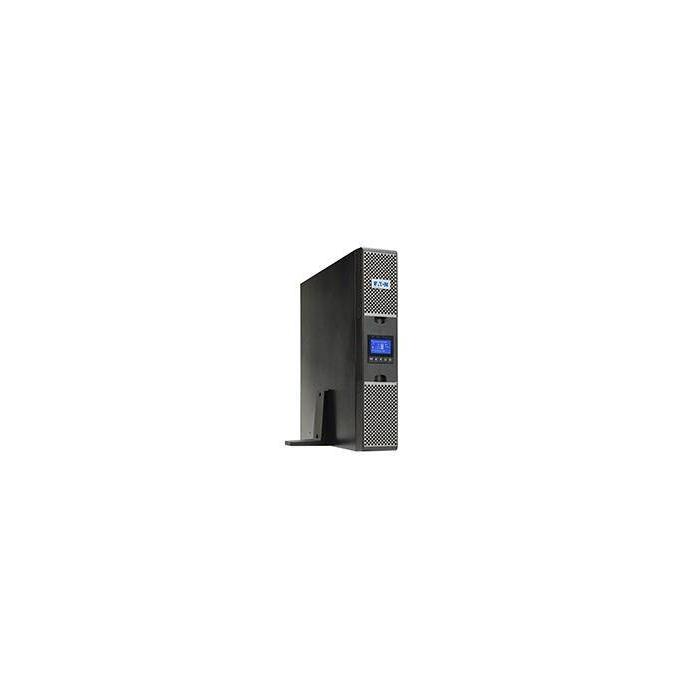

Eaton 9PX 1.5kVA UPS with 1500 W double-conversion online topology, designed to protect your critical equipment with a pure sine wave output and unity power factor. It offers 8 C13 AC outlets, along with an RS-232 serial interface for monitoring, and operates with an input voltage range of 176 to 276 V to adapt to fluctuations. With an efficiency of 92.5% and a noise level of only 35 dB, this system ensures a stable and clean supply while covering battery discharge in the event of a power outage. Its single-phase operation adjusts the output frequency to 50/60 Hz, guaranteeing compatibility with your devices.
Specifications
Features
- UPS topology: Double-conversion (Online)
- Output power capacity: 1.5 kVA
- Output power: 1500 W
- Waveform: Pure sine
- Input operation voltage (min): 176 V
- Input operation voltage (max): 276 V
- Input frequency: 40/70 Hz
- Output operation voltage (min): 200 V
- Output operation voltage (max): 240 V
- Output frequency: 50/60 Hz
- Number of input phases: 1
- Efficiency: 92.5%
- Power factor: 1
- Noise level: 35 dB
- Power protection features: Battery discharge
Ports & interfaces
- AC outlet types: C13 coupler
- Power plug: C14 coupler
- AC outlets quantity: 8 AC outlet(s)
- USB port: Yes
- USB 2.0 ports quantity: 1
- Serial interface: Yes
- Serial interface type: RS-232
- RS-232 ports: 1
Battery
- Battery technology: Sealed Lead Acid (VRLA)
- Typical backup time at full load: 5 min
- Typical backup time at half load: 14 min
- Hot-swap battery: Yes
- Automatic battery test: Yes
Design
- Form factor: Rackmount/Tower
- Rack capacity: 2U
- Product colour: Black
- Display type: LCD
- LED indicators: Yes
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
Certificates
- Certification: IEC/EN 62040-1, UL 1778, CSA 22.2, IEC/EN 62040 -2, FCC Class B, CISPR22 Class B, CE /CB report (TUV) / cULus / EAC /RCM / KC /
Packaging content
- Rack mount kit: Yes
Safety regulation & standards
- Safety: IEC/EN 62040-1, UL 1778, CSA 22.2
Sustainability
- Sustainability certificates: ENERGY STAR
Weight & dimensions
- Width: 440 mm
- Depth: 450 mm
- Height: 86.5 mm
- Weight: 18.9 kg
Packaging data
- Management card included: Yes
- Bundled software: Intelligent Power Software suite
Logistics data
- Harmonized System (HS) code: 85078000
Other features
- Nominal output voltage: 230 V
- Nominal input voltage: 230 V
