Description

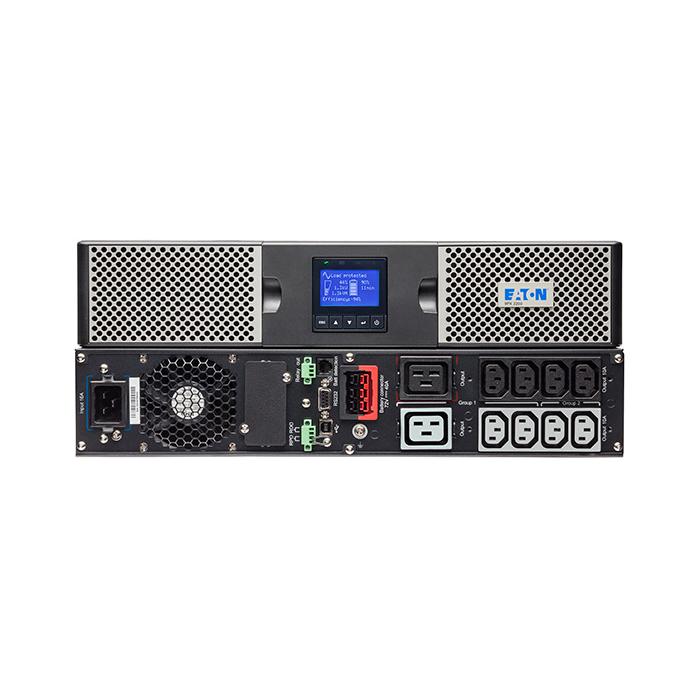

Eaton 9PX3000IRT2U uninterruptible power supply (UPS) with double-conversion online technology, designed to deliver 3 kVA and 3000 W of power with a power factor of 1 and 94% efficiency. It provides pure sine wave output and adjustable output voltage between 200 V and 240 V, with an output frequency of 50/60 Hz. It includes ten AC outlets (C13 and C19 couplers) and a C20 input connector, plus an RS-232 port and USB for management. Its input voltage range accepts from 176 V to 276 V, with an input frequency of 40/70 Hz, and its noise level is 40 dB. This single-phase unit protects your critical loads with a full correction topology.
Specifications
Features
- Input operation voltage (min): 176 V
- Input operation voltage (max): 276 V
- Input frequency: 40/70 Hz
- Output operation voltage (min): 200 V
- Output operation voltage (max): 240 V
- Output frequency: 50/60 Hz
- Number of input phases: 1
- Efficiency: 94%
- Power factor: 1
- Noise level: 40 dB
- UPS topology: Double-conversion (Online)
- Output power capacity: 3 kVA
- Output power: 3000 W
- Waveform: Pure sine
Ports & interfaces
- AC outlet types: C13 coupler, C19 coupler
- Power plug: C20 coupler
- AC outlets quantity: 10 AC outlet(s)
- USB port: Yes
- USB 2.0 ports quantity: 1
- RS-232 ports: 1
Battery
- Battery technology: Sealed Lead Acid (VRLA)
- Typical backup time at half load: 9.5 min
- Hot-swap battery: Yes
- Automatic battery test: Yes
Design
- Form factor: Rackmount/Tower
- Rack capacity: 2U
- Product colour: Black
- Display type: LCD
- LED indicators: Yes
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
Certificates
- Certification: IEC/EN 62040-1, UL 1778, CSA 22.2, IEC/EN 62040 -2, FCC Class B, CISPR22 Class B, CE /CB report (TUV) / cULus / EAC /RCM / KC /
Packaging content
- Rack mount kit: Yes
Safety regulation & standards
- Safety: IEC/EN 62040-1, UL 1778, CSA 22.2
Sustainability
- Sustainability certificates: ENERGY STAR
Weight & dimensions
- Width: 440 mm
- Depth: 605 mm
- Height: 86.5 mm
- Weight: 27.6 kg
Packaging data
- Management card included: No
- Bundled software: Intelligent Power Software suite
Logistics data
- Harmonized System (HS) code: 85078000
Other features
- Nominal output voltage: 230 V
- Nominal input voltage: 230 V
