Description

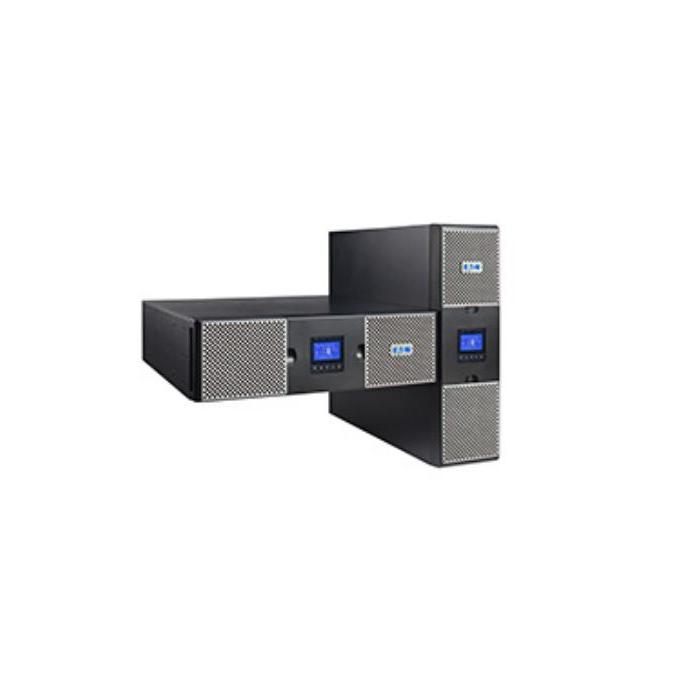

The Eaton 9PX2200IRTN is a UPS with double-conversion online topology offering an output power of 2200 W and 2.2 kVA, with a power factor of 1 and an efficiency of 93.5%. Its 10 AC outlets, type C13 and C19, are powered via a C20 connector, providing a pure sine wave with output voltages between 200 and 240 V, at a frequency of 50/60 Hz. The unit supports an operating input voltage of 176 to 276 V and an input frequency of 40/70 Hz, operating on a single phase with a noise level of 40 dB. It includes a USB 2.0 port for management and monitoring.
Specifications
Features
- UPS topology: Double-conversion (Online)
- Output power capacity: 2.2 kVA
- Output power: 2200 W
- Waveform: Pure sine
- Input operation voltage (min): 176 V
- Input operation voltage (max): 276 V
- Input frequency: 40/70 Hz
- Output operation voltage (min): 200 V
- Output operation voltage (max): 240 V
- Output frequency: 50/60 Hz
- Number of input phases: 1
- Efficiency: 93.5%
- Power factor: 1
- Noise level: 40 dB
Ports & interfaces
- AC outlet types: C13 coupler, C19 coupler
- Power plug: C20 coupler
- AC outlets quantity: 10 AC outlet(s)
- USB port: Yes
- USB 2.0 ports quantity: 1
- RS-232 ports: 1
Battery
- Battery technology: Sealed Lead Acid (VRLA)
- Typical backup time at half load: 10 min
- Hot-swap battery: Yes
- Automatic battery test: Yes
Design
- Form factor: Rackmount/Tower
- Rack capacity: 2U
- Product colour: Black
- Display type: LCD
- LED indicators: Yes
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
Certificates
- Certification: IEC/EN 62040-1, UL 1778, CSA 22.2, IEC/EN 62040 -2, FCC Class B, CISPR22 Class B, CE /CB report (TUV) / cULus / EAC /RCM / KC /
Packaging content
- Rack mount kit: Yes
Safety regulation & standards
- Safety: IEC/EN 62040-1, UL 1778, CSA 22.2
Sustainability
- Sustainability certificates: ENERGY STAR
Weight & dimensions
- Width: 440 mm
- Depth: 605 mm
- Height: 86.5 mm
- Weight: 25 kg
Packaging data
- Management card included: Yes
- Bundled software: Intelligent Power Software suite
Logistics data
- Harmonized System (HS) code: 85078000
Other features
- Nominal output voltage: 230 V
- Nominal input voltage: 230 V
