Description

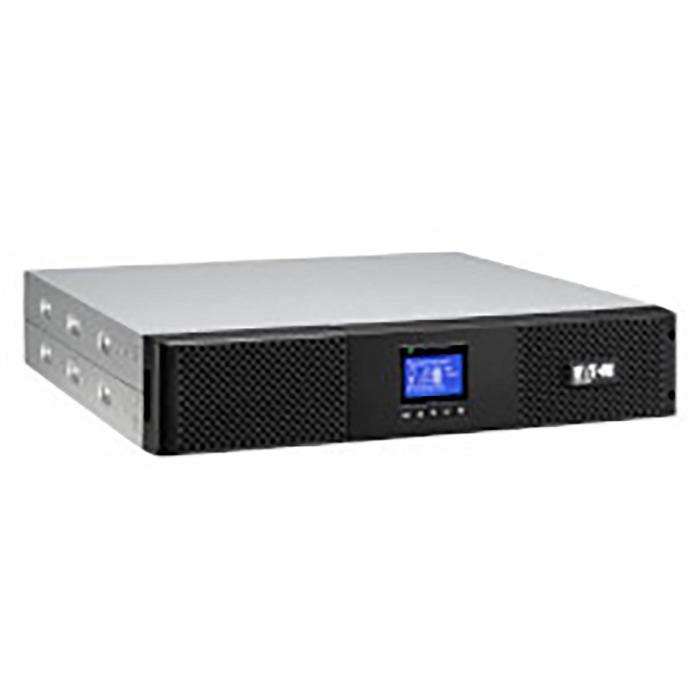

The Eaton 9SX, a double-conversion online UPS with 3 kVA and 2700 W of output power, offers nine AC outlets via C13 and C19 couplers to protect critical equipment. Its input accepts a voltage of 200 to 276 V and a frequency of 40 to 70 Hz, while the output remains stable at 50/60 Hz. With a maximum current of 16 A, it includes USB and RS-232 ports for management, and its 2U rack-mount design in black integrates easily into professional environments. The 45 dB noise level and C20 input connector complete a unit designed for reliable and continuous power supply.
Specifications
Features
- UPS topology: Double-conversion (Online)
- Output power capacity: 3 kVA
- Output power: 2700 W
- Input operation voltage (min): 200 V
- Input operation voltage (max): 276 V
- Input frequency: 40 - 70 Hz
- Output frequency: 50/60 Hz
- Maximum current: 16 A
- Noise level: 45 dB
Ports & interfaces
- AC outlet types: C13 coupler, C19 coupler
- Power plug: C20 coupler
- AC outlets quantity: 9 AC outlet(s)
- USB port: Yes
- Serial interface: Yes
- Serial interface type: RS-232
- RS-232 ports: 1
Design
- Form factor: Rackmount
- Rack capacity: 2U
- Product colour: Black
- Display type: LCD
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
Certificates
- Certification: IEC/EN 62040 -2 , FCC B, CISPR22 B, CE /CB (TUV) / cULus / EAC / RCM
Safety regulation & standards
- Safety: IEC/EN 62040-1, UL 1778, CSA 22.2
Weight & dimensions
- Width: 438 mm
- Depth: 608 mm
- Height: 86.5 mm
- Weight: 26.5 kg
